MIPAS C2H2 Microwindows

updated 26MAR21


FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

C2H20511 766.3750 767.5000 6.0 36.0 H2O CO2 O3 C2H2 CLONO2 CCL4 HNO3 NH3 N2O5 NO2 HCN C2H6 COF2 CH3CL PAN
C2H20512 771.0250 772.6500 6.0 27.0 H2O CO2 O3 C2H2 CLONO2 HNO3 CCL4 HCN NO2 C2H6 N2O5 NH3 PAN F22 COF2
C2H20513 774.9500 776.3750 6.0 18.0 H2O CO2 O3 C2H2 CLONO2 HNO3 CCL4 C2H6 NO2 NH3 PAN N2O5 F22 HCN F13

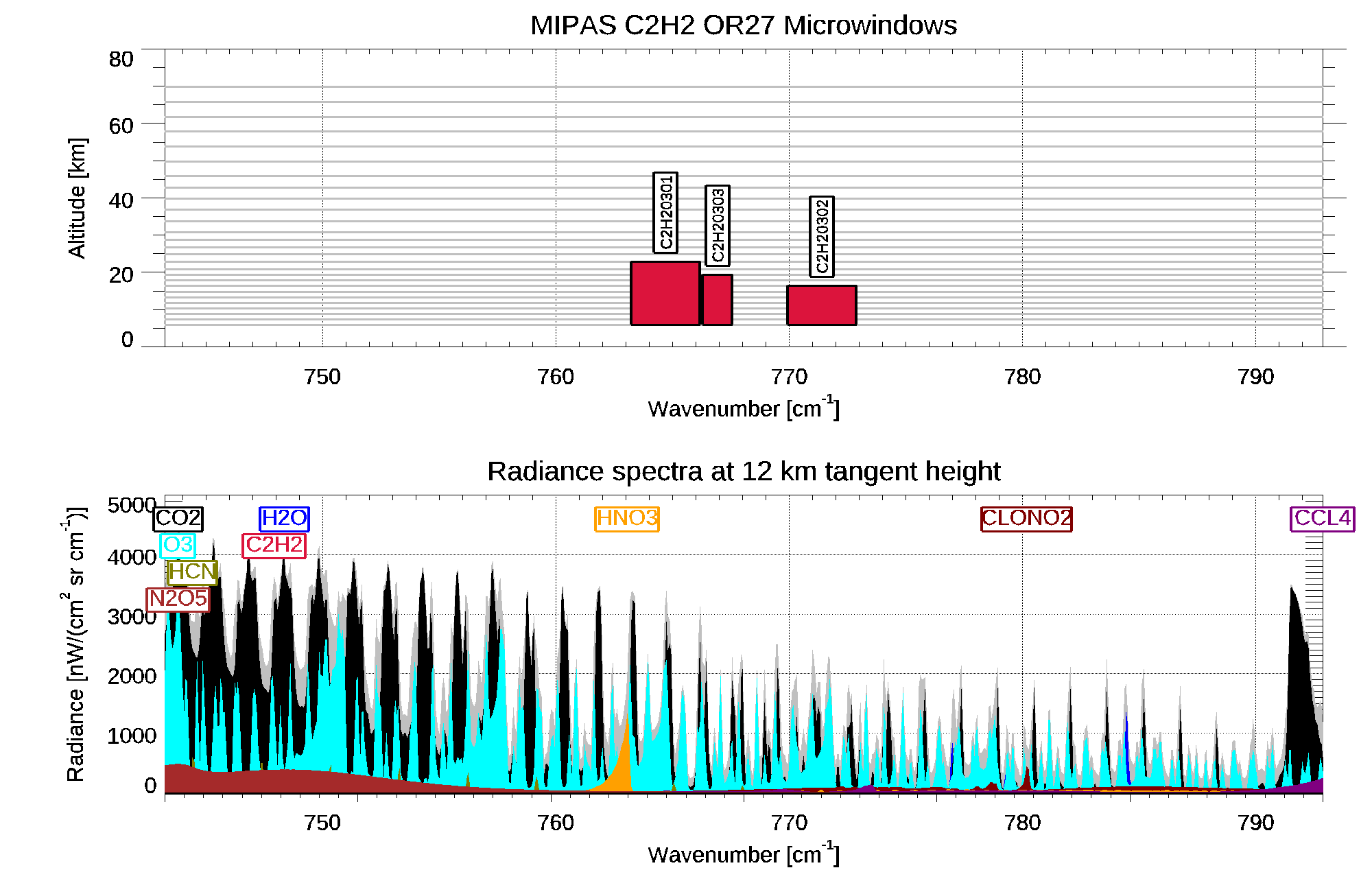

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

C2H20301 763.2500 766.1875 6.0 23.0 H2O CO2 O3 C2H2 HCN HNO3 CLONO2 CCL4 N2O5 NH3 NO2 COF2 CH3CL C2H6 PAN
C2H20302 769.9375 772.8750 6.0 16.5 H2O CO2 O3 C2H2 HCN CLONO2 NH3 HNO3 CCL4 N2O5 NO2 C2H6 PAN COF2 F22
C2H20303 766.3125 767.5625 6.0 19.5 H2O CO2 O3 C2H2 CLONO2 CCL4 NH3 HNO3 N2O5 HCN NO2 C2H6 COF2 CH3CL PAN
