MIPAS C2H6 Microwindows

updated 26MAR21

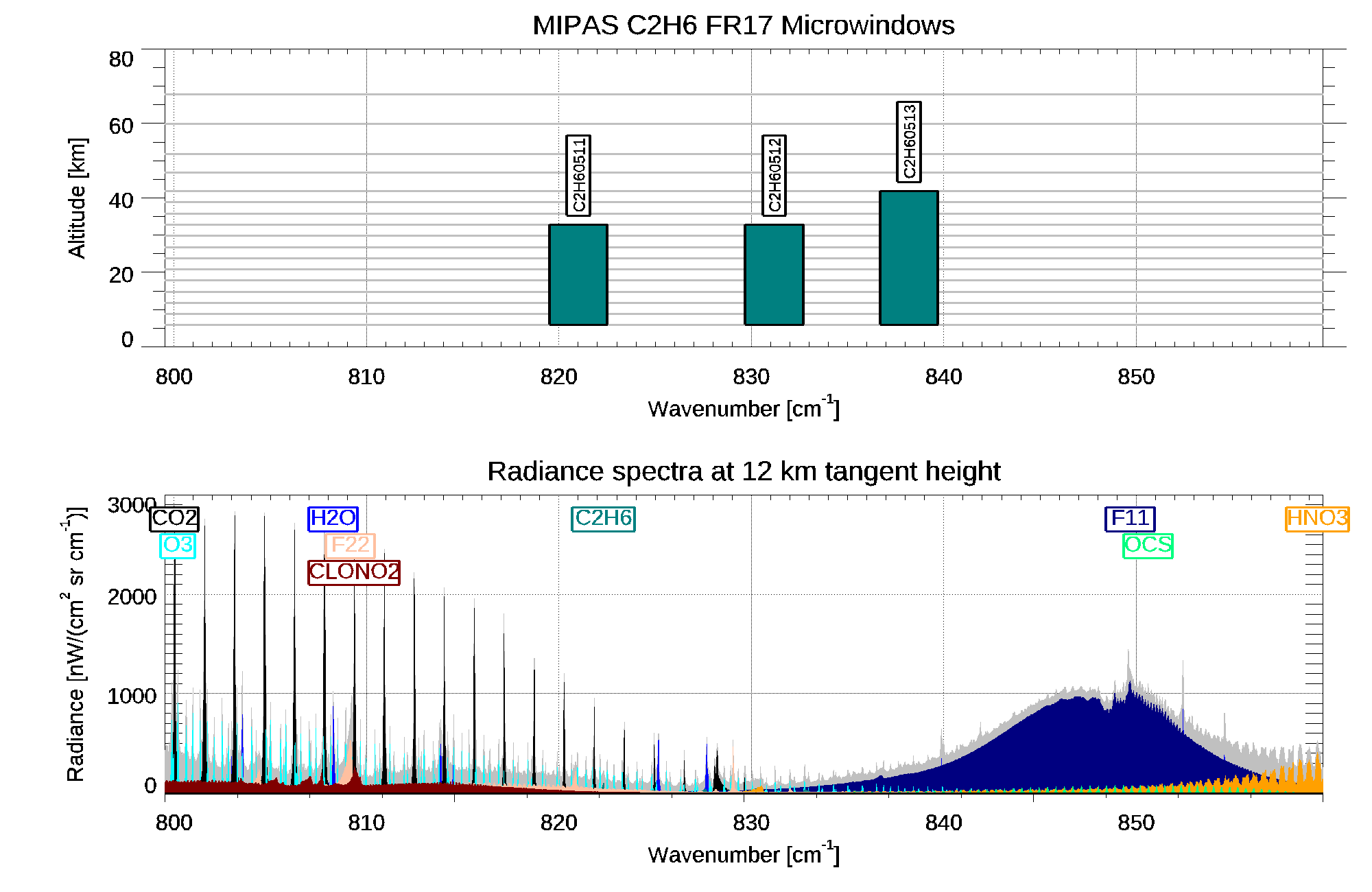

FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

C2H60511 819.5250 822.5250 6.0 33.0 H2O CO2 O3 C2H6 F22 CLONO2 HNO3 HNO4 PAN F11 F113 CLO N2O5 NO2 NH3
C2H60512 829.7000 832.7000 6.0 33.0 H2O CO2 O3 HNO3 C2H6 F11 F22 NH3 PAN CLONO2 CLO OCS HNO4 COCL2 N2O5
C2H60513 836.7000 839.7000 6.0 42.0 H2O F11 CO2 O3 C2H6 HNO3 OCS COCL2 F22 PAN CLO F114 N2O5 NO2 NH3

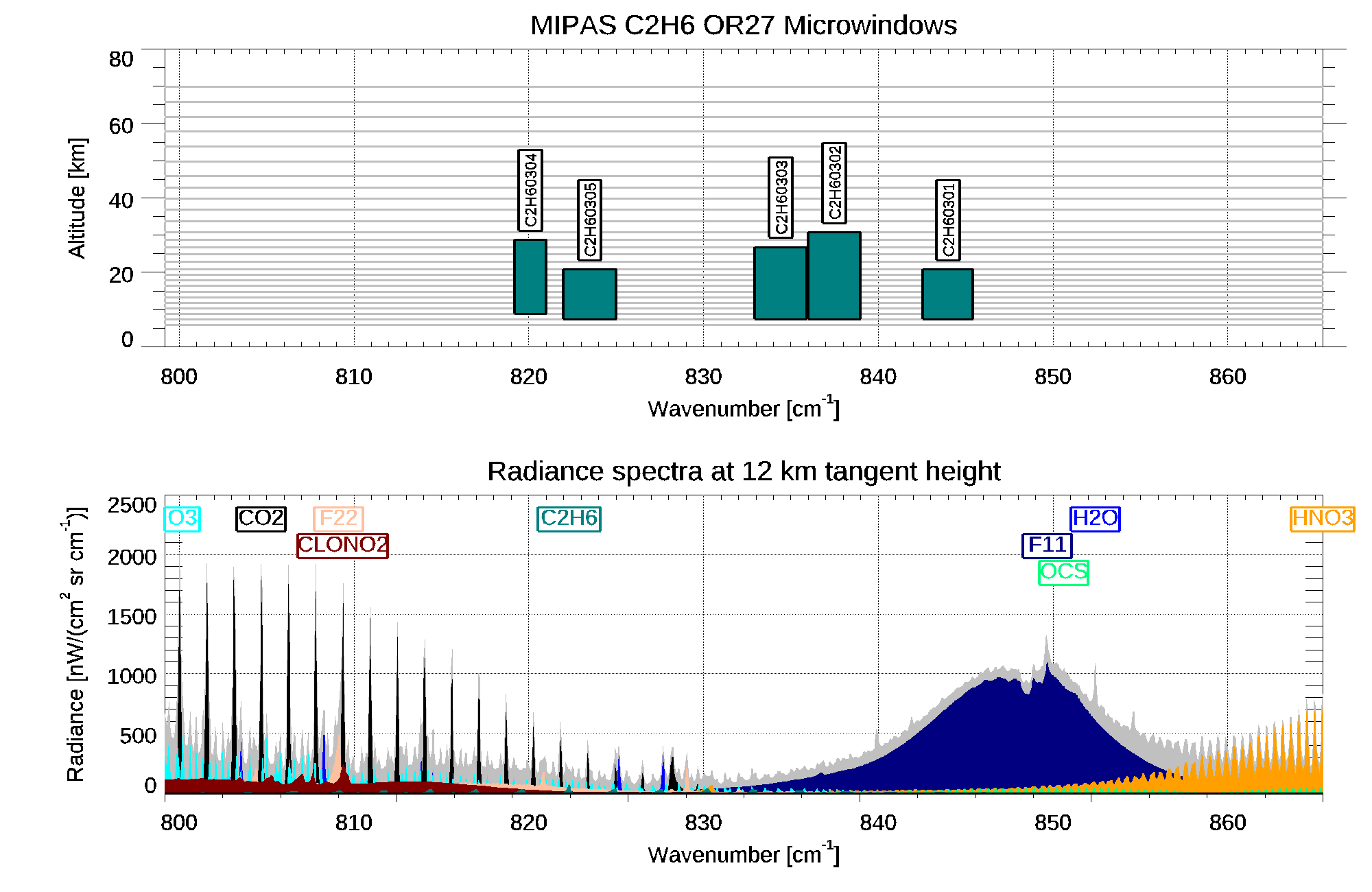

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

C2H60301 842.5625 845.4375 7.5 21.0 H2O F11 HNO3 O3 CO2 OCS C2H6 COCL2 NO2 F114 N2O5 F22 PAN CLO NH3
C2H60302 836.0000 839.0000 7.5 31.0 H2O F11 O3 HNO3 CO2 C2H6 OCS PAN F22 COCL2 N2O5 CLO F114 NO2 NH3
C2H60303 832.9375 835.9375 7.5 27.0 H2O NH3 F11 O3 CO2 HNO3 C2H6 PAN OCS F22 COCL2 CLO N2O5 F114 NO2
C2H60304 819.1875 821.0000 9.0 29.0 H2O CO2 O3 F22 CLONO2 HNO3 C2H6 HNO4 PAN F113 F11 N2O5 CLO NO2 NH3
C2H60305 822.0000 825.0000 7.5 21.0 H2O O3 CO2 HNO3 F22 C2H6 CLONO2 PAN HNO4 F11 F113 CLO N2O5 NO2 OCS
