MIPAS CCL4 Microwindows

updated 12AUG24

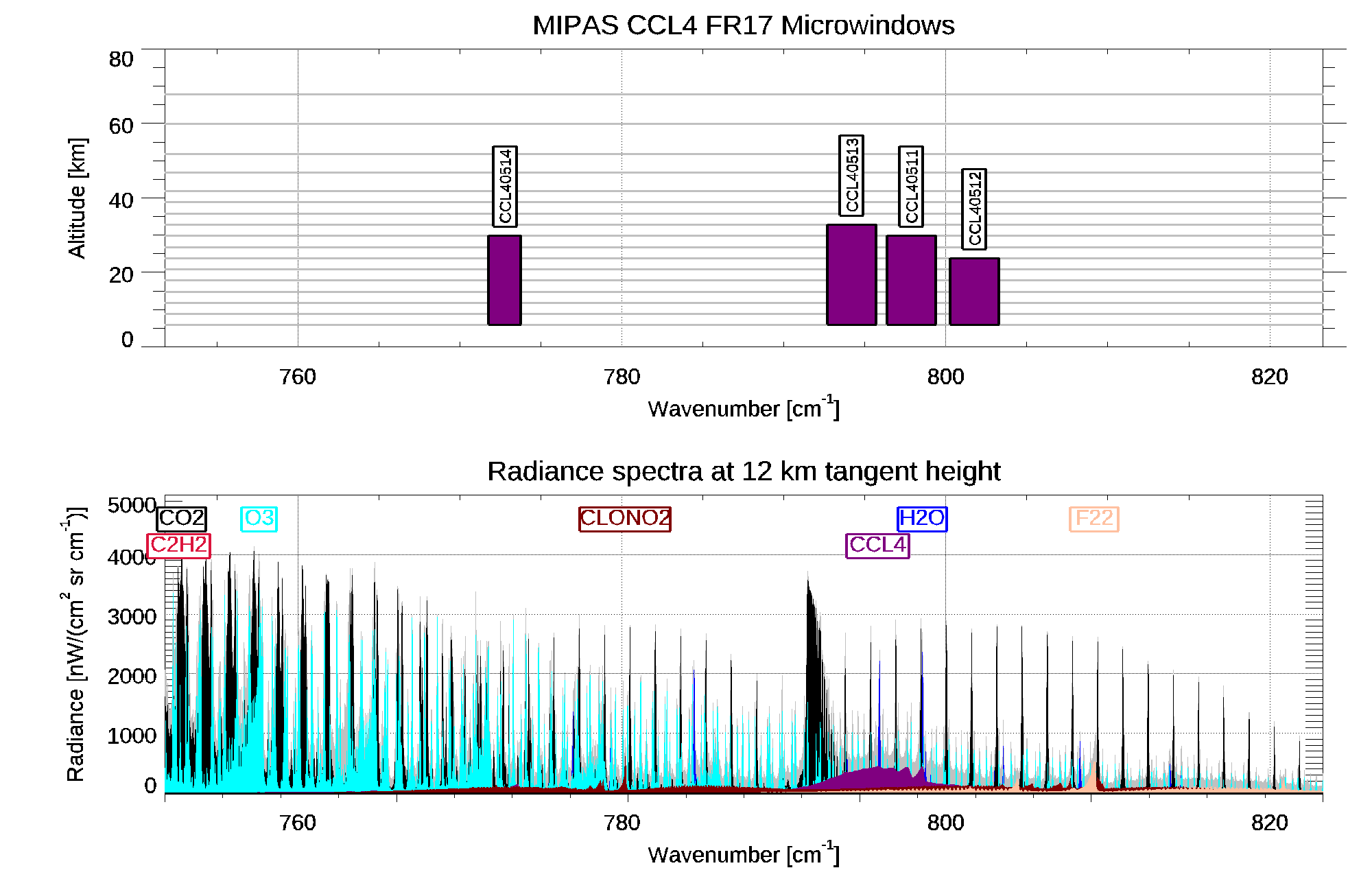

FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)
CCL40511 796.3750 799.3750 6.0 30.0 H2O CO2 O3 CCL4 CLONO2 NH3 PAN F22 HNO4 C2H2 HNO3 C2H6 COF2 N2O5 NO2
CCL40512 800.2750 803.2750 6.0 24.0 H2O CO2 O3 HNO4 CLONO2 CCL4 F22 PAN C2H6 HNO3 C2H2 COF2 HCN N2O5 F113
CCL40513 792.7000 795.7000 6.0 33.0 H2O CO2 O3 CCL4 C2H2 CLONO2 PAN HNO4 HNO3 F22 C2H6 NH3 HCN COF2 N2O5
CCL40514 771.8000 773.7750 6.0 30.0 H2O CO2 O3 C2H2 CLONO2 CCL4 HNO3 HCN COF2 NO2 C2H6 N2O5 PAN F22 NH3

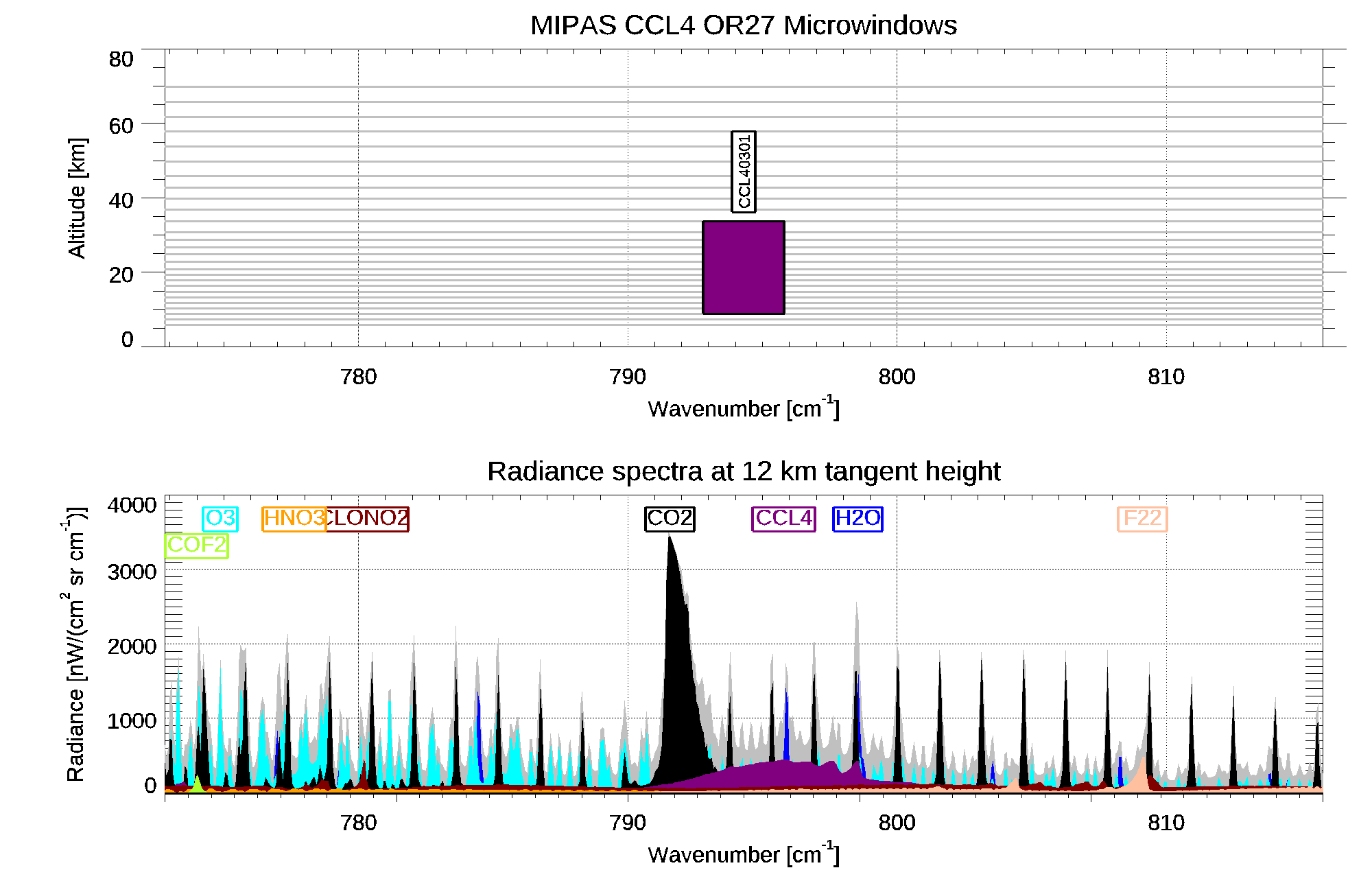

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)
CCL40301 792.8125 795.8125 9.0 34.0 H2O O3 CO2 CCL4 CLONO2 PAN HNO4 HNO3 F22 COF2 C2H6 NH3 N2O5 NO2 C2H2
