MIPAS CH3CL Microwindows

updated 26MAR21


FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

CHCL0511 745.4500 746.7500 6.0 42.0 H2O CO2 O3 C2H2 N2O5 CH3CL HNO3 HCN NH3 NO2 COF2 C2H6 PAN
CHCL0512 748.4750 749.7500 6.0 42.0 H2O CO2 O3 N2O5 CH3CL HNO3 C2H2 NH3 HCN NO2 COF2 C2H6 PAN
CHCL0513 751.5250 752.5750 6.0 30.0 H2O CO2 O3 C2H2 N2O5 CH3CL HNO3 CCL4 HCN COF2 NO2 NH3 CLONO2 C2H6 PAN
CHCL0514 754.4000 755.7500 6.0 39.0 H2O CO2 O3 C2H2 N2O5 HNO3 CH3CL CCL4 HCN NO2 NH3 COF2 CLONO2 C2H6 PAN

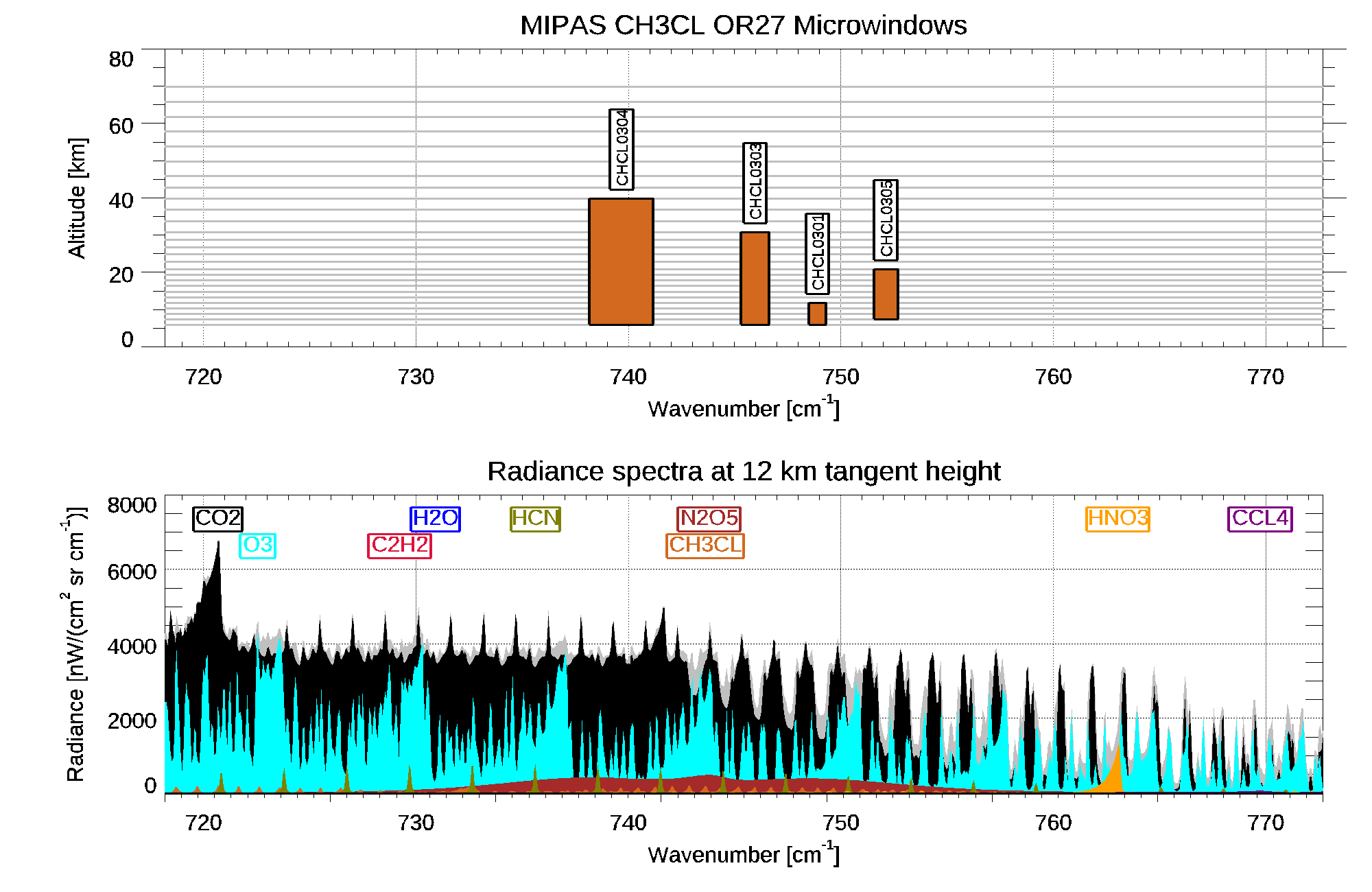

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

CHCL0301 748.5000 749.3125 6.0 12.0 H2O CO2 O3 N2O5 CH3CL HNO3 C2H2 NH3 HCN NO2 COF2 C2H6 PAN

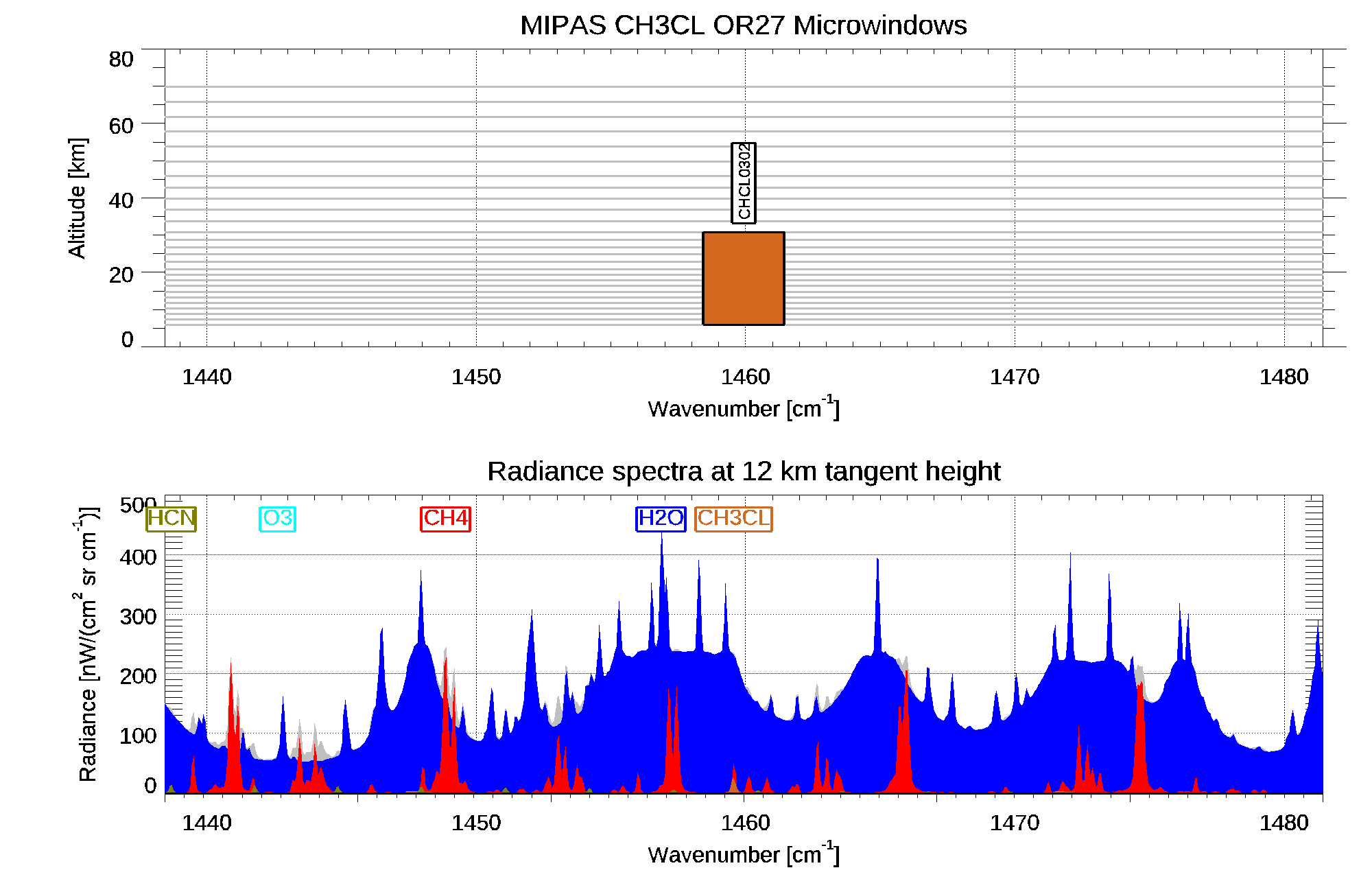

CHCL0302 1458.4375 1461.4375 6.0 31.0 H2O O2 CH4 CH3CL HCN O3 C2H4
CHCL0303 745.3125 746.6250 6.0 31.0 H2O CO2 O3 N2O5 CH3CL C2H2 HNO3 HCN NO2 NH3 COF2 PAN C2H6
CHCL0304 738.1875 741.1875 6.0 40.0 H2O CO2 O3 C2H2 HCN N2O5 CH3CL HNO3 NO2 NH3 COF2 PAN N2O C2H6
CHCL0305 751.5625 752.6875 7.5 21.0 H2O CO2 O3 N2O5 HNO3 CH3CL C2H2 CCL4 COF2 HCN CLONO2 NO2 C2H6 PAN NH3
