MIPAS CLONO2 Microwindows

updated 26MAR21


FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

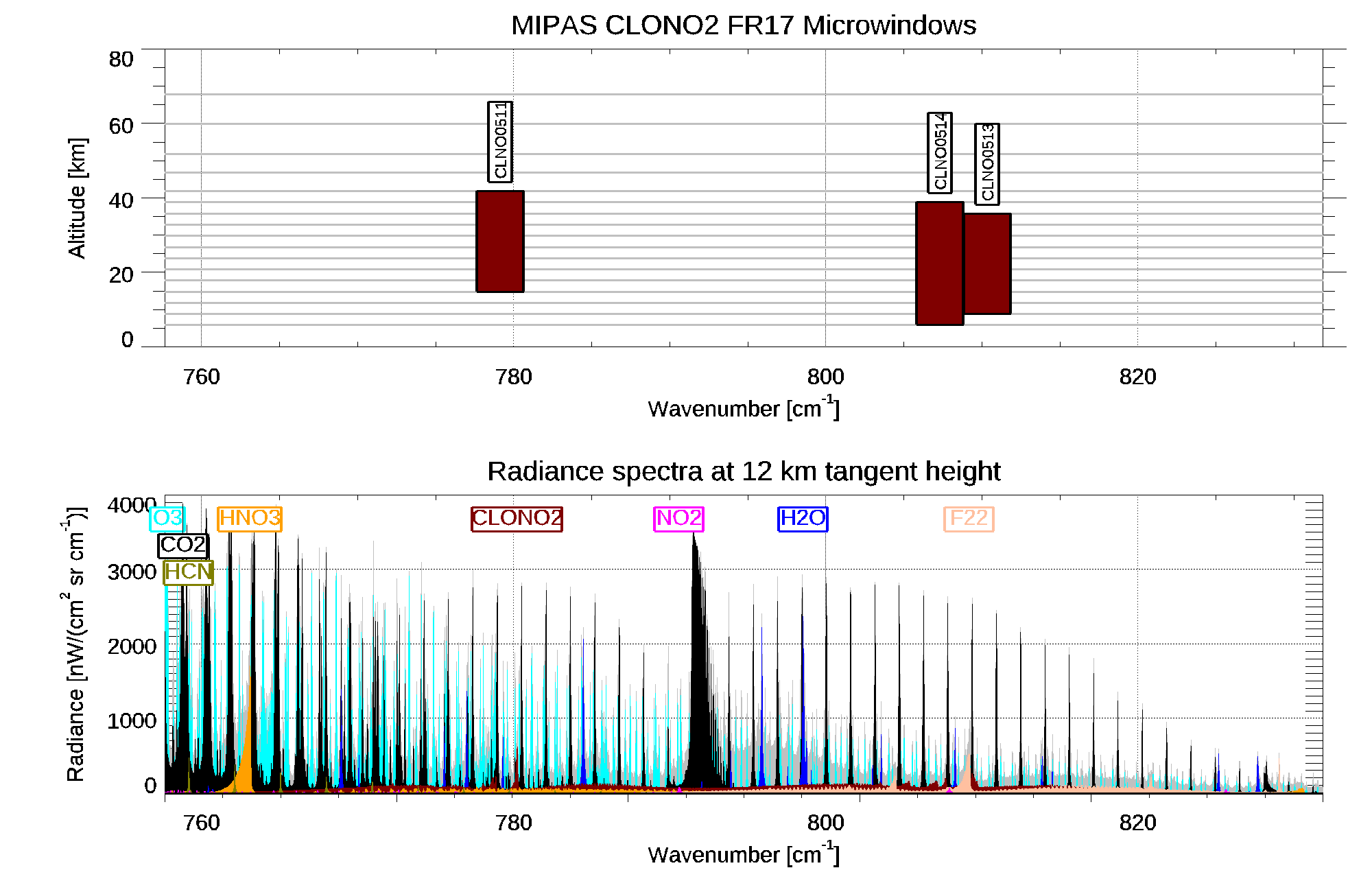

CLNO0511 777.6500 780.6250 15.0 42.0 O3 CO2 CLONO2 H2O HNO3 NH3 HCN NO2 COF2 N2O5 CCL4 HNO4 C2H2 PAN C2H6

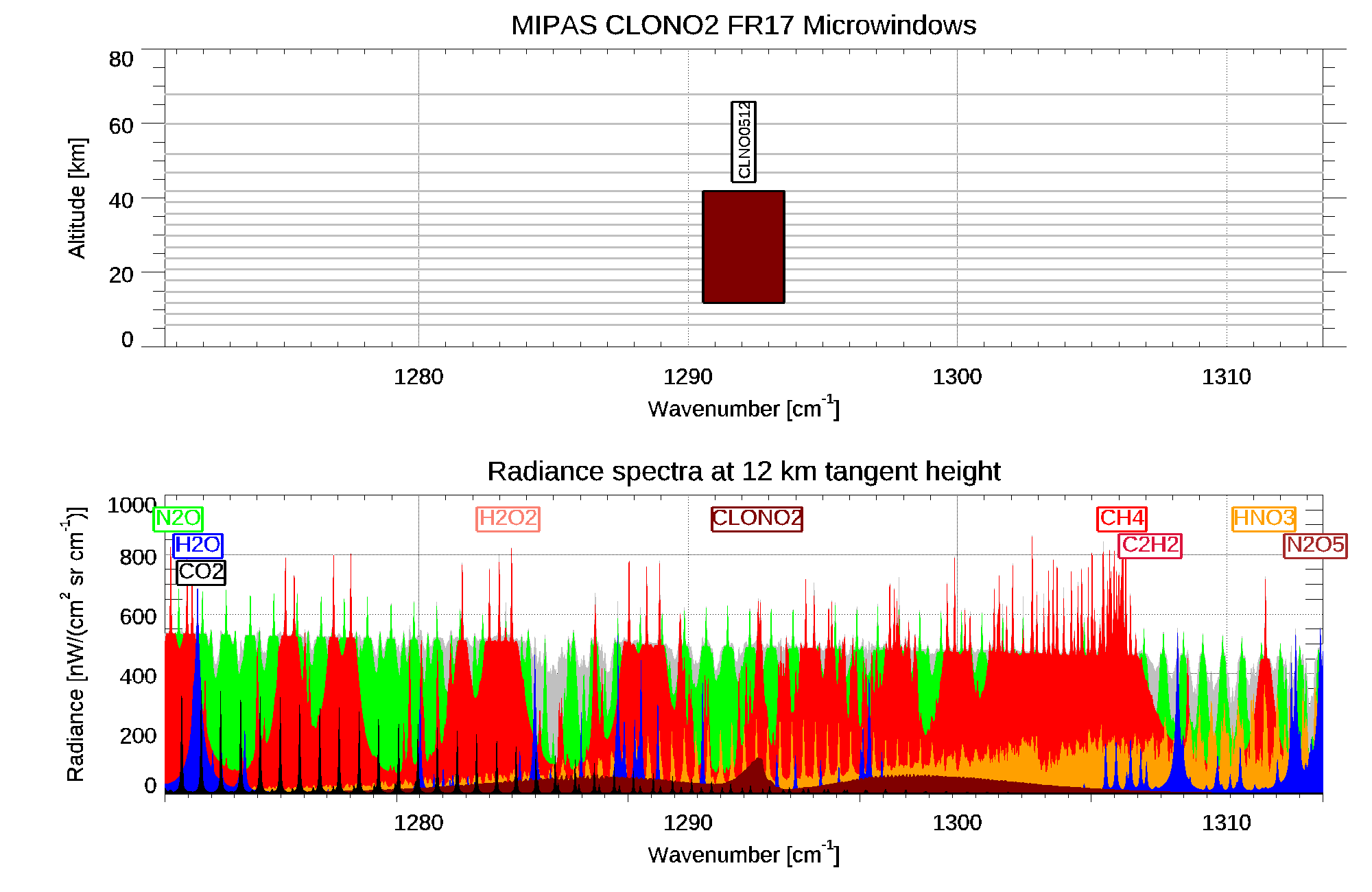

CLNO0512 1290.5750 1293.5750 12.0 42.0 N2O CH4 HNO3 H2O H2O2 CLONO2 CO2 C2H2 PAN N2O5 NO2 F22 HOCL
CLNO0513 808.8500 811.8500 9.0 36.0 CO2 H2O O3 CLONO2 F22 NH3 HNO4 HNO3 C2H6 PAN F113 N2O5 CLO NO2 CCL4
CLNO0514 805.8250 808.8250 6.0 39.0 H2O CO2 O3 CLONO2 NH3 F22 HNO4 C2H6 NO2 HNO3 PAN CCL4 F113 C2H2 N2O5


OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

CLNO0331 777.4375 780.4375 18.0 37.0 O3 CLONO2 CO2 HNO3 H2O N2O5 NO2 HCN HNO4 CCL4 COF2 NH3 F22 PAN

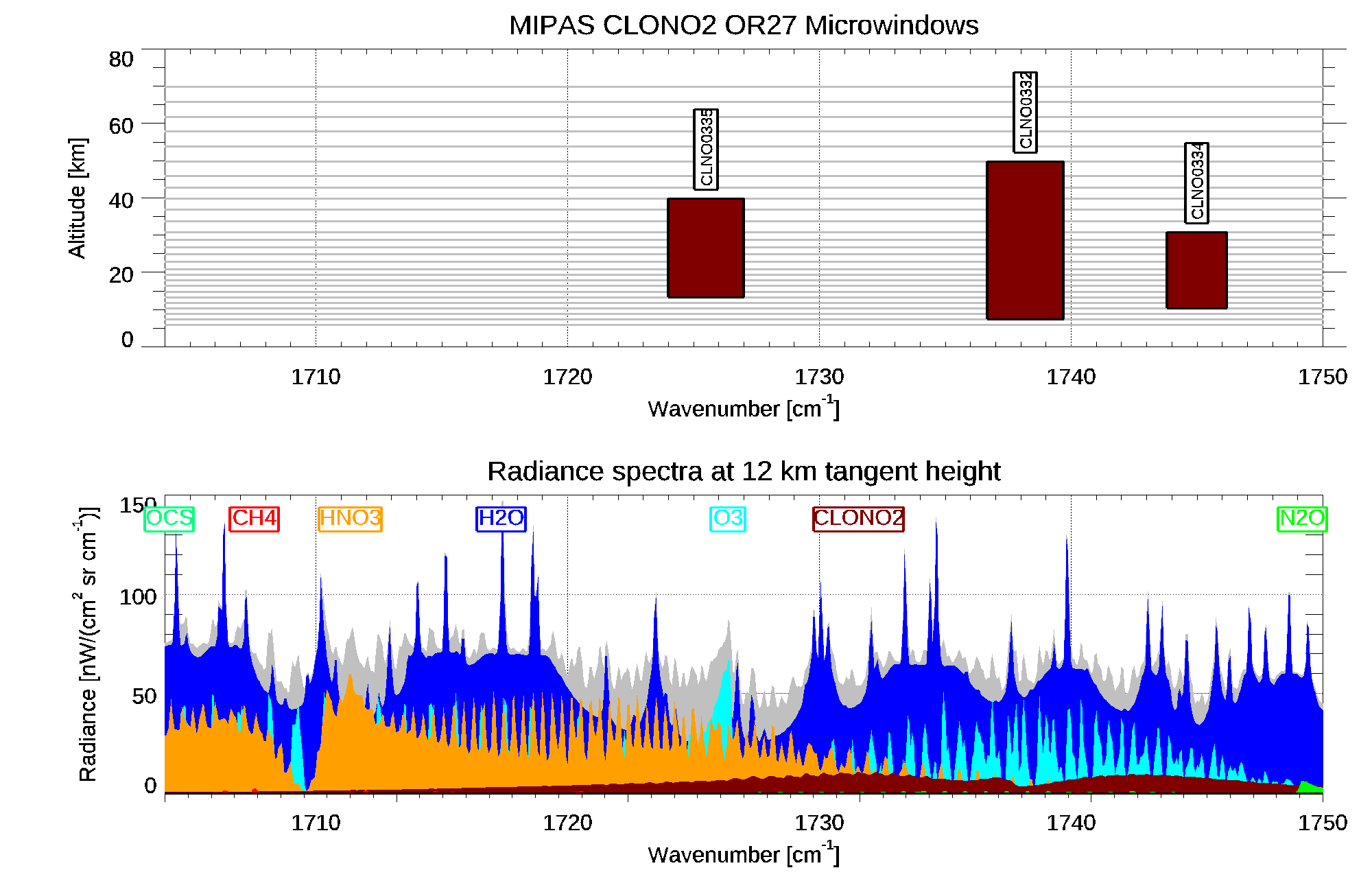

CLNO0332 1736.6875 1739.6875 7.5 50.0 H2O O3 HNO3 CLONO2 O2 PAN NH3 N2O CH4
CLNO0333 807.3750 810.3750 15.0 34.0 CO2 CLONO2 O3 H2O F22 HNO4 NO2 HNO3 NH3 N2O5 C2H6 F113 CLO CCL4 COF2
CLNO0334 1743.8125 1746.1875 10.5 31.0 H2O O3 CLONO2 HNO3 O2 PAN NH3 N2O CH4
CLNO0335 1724.0000 1727.0000 13.5 40.0 O3 HNO3 H2O CLONO2 O2 N2O CH4 NH3 PAN OCS


MA Mode

2005-2012 29 Sweeps from 18-102 km @0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

CLNO0331 777.4375 780.4375 18.0 36.0 O3 CLONO2 CO2 HNO3 H2O N2O5 NO2 HCN HNO4 CCL4 COF2 NH3 F22 PAN

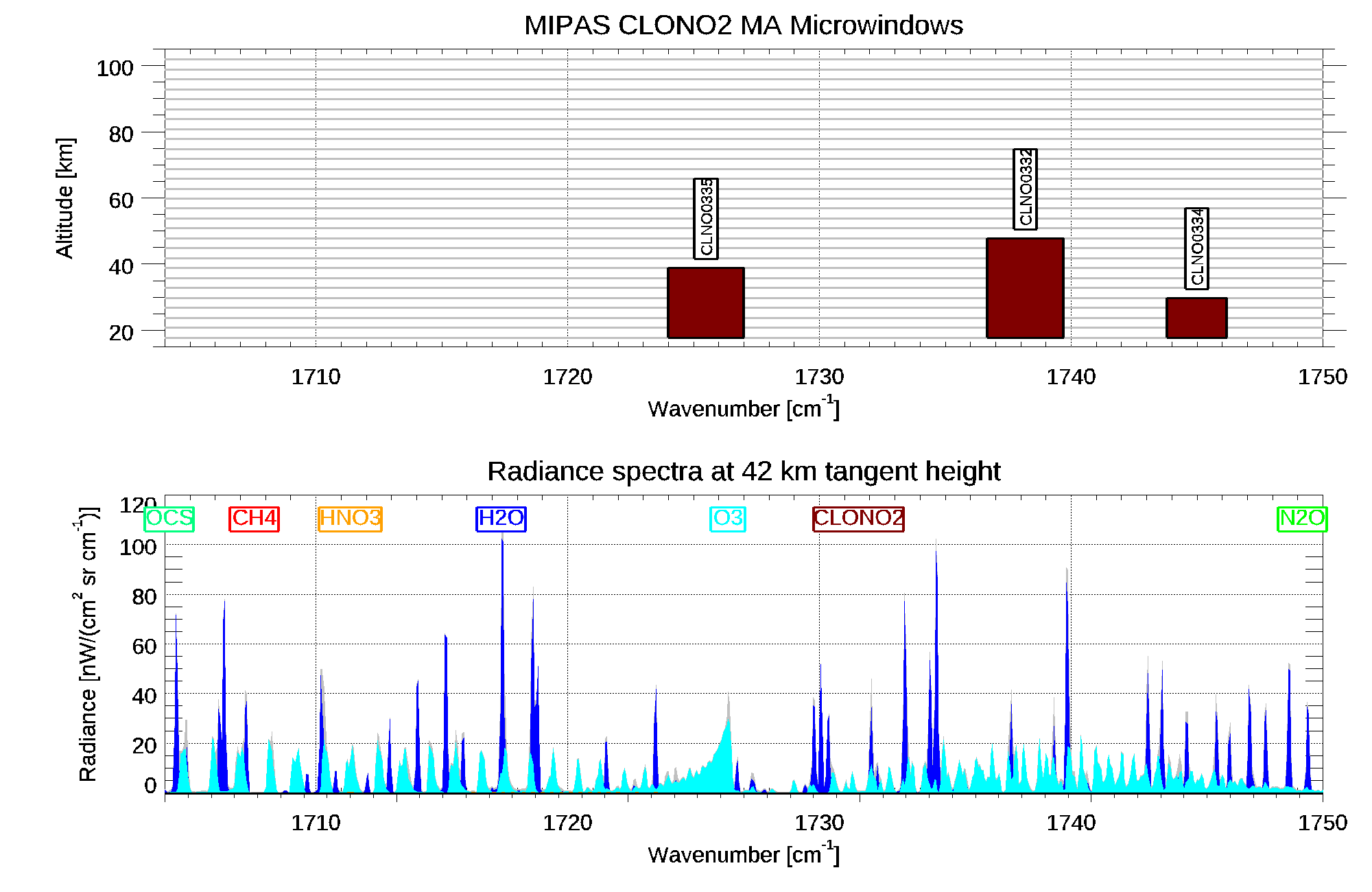

CLNO0332 1736.6875 1739.6875 18.0 48.0 H2O O3 HNO3 CLONO2 O2 PAN NH3 N2O CH4
CLNO0333 807.3750 810.3750 18.0 33.0 CO2 CLONO2 O3 H2O F22 HNO4 NO2 HNO3 NH3 N2O5 C2H6 F113 CLO CCL4 COF2
CLNO0334 1743.8125 1746.1875 18.0 30.0 H2O O3 CLONO2 HNO3 O2 PAN NH3 N2O CH4
CLNO0335 1724.0000 1727.0000 18.0 39.0 O3 HNO3 H2O CLONO2 O2 N2O CH4 NH3 PAN OCS
