MIPAS COCL2 Microwindows

updated 26MAR21

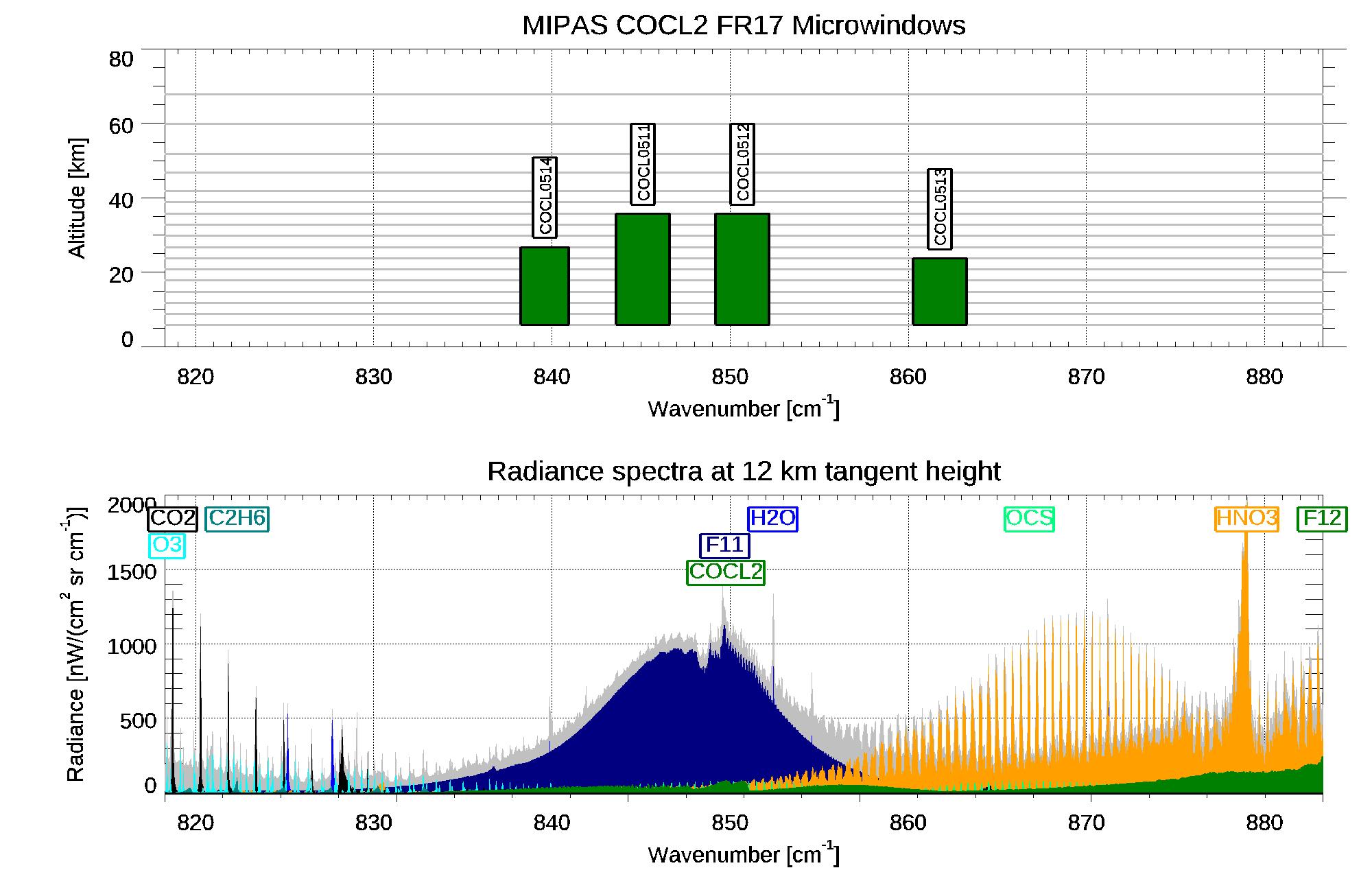

FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

COCL0511 843.6250 846.6250 6.0 36.0 H2O F11 CO2 HNO3 O3 OCS C2H6 COCL2 NO2 F114 F22 CLO N2O5 PAN NH3
COCL0512 849.2000 852.2000 6.0 36.0 H2O F11 HNO3 CO2 OCS O3 NH3 C2H6 COCL2 F114 CLO N2O5 F12 PAN NO2
COCL0513 860.2750 863.2750 6.0 24.0 H2O HNO3 OCS CO2 F11 C2H6 F12 O3 COCL2 CLO NO2 N2O5 NH3 C2H4 PAN
COCL0514 838.2750 840.9500 6.0 27.0 H2O F11 CO2 O3 C2H6 HNO3 OCS COCL2 F22 PAN F114 N2O5 CLO NO2 C2H4


OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

COCL0301 843.8125 846.8125 10.5 37.0 F11 H2O HNO3 O3 OCS CO2 COCL2 N2O5 C2H6 NO2 CLO F114 F22 PAN NH3
COCL0302 848.0000 851.0000 9.0 37.0 H2O F11 HNO3 OCS CO2 O3 COCL2 C2H6 F114 N2O5 CLO NH3 PAN F22 F12
COCL0303 839.2500 842.2500 13.5 54.0 H2O F11 HNO3 O3 CO2 COCL2 N2O5 OCS C2H6 CLO F22 F114 NO2 PAN
COCL0304 859.7500 862.7500 9.0 29.0 HNO3 H2O F11 OCS CO2 F12 COCL2 O3 N2O5 CLO C2H6 NO2 PAN C2H4 NH3
COCL0305 854.0000 857.0000 9.0 31.0 H2O HNO3 F11 OCS O3 COCL2 CO2 CLO N2O5 C2H6 F12 F114 PAN NH3 NO2
