MIPAS COF2 Microwindows

updated 26MAR21

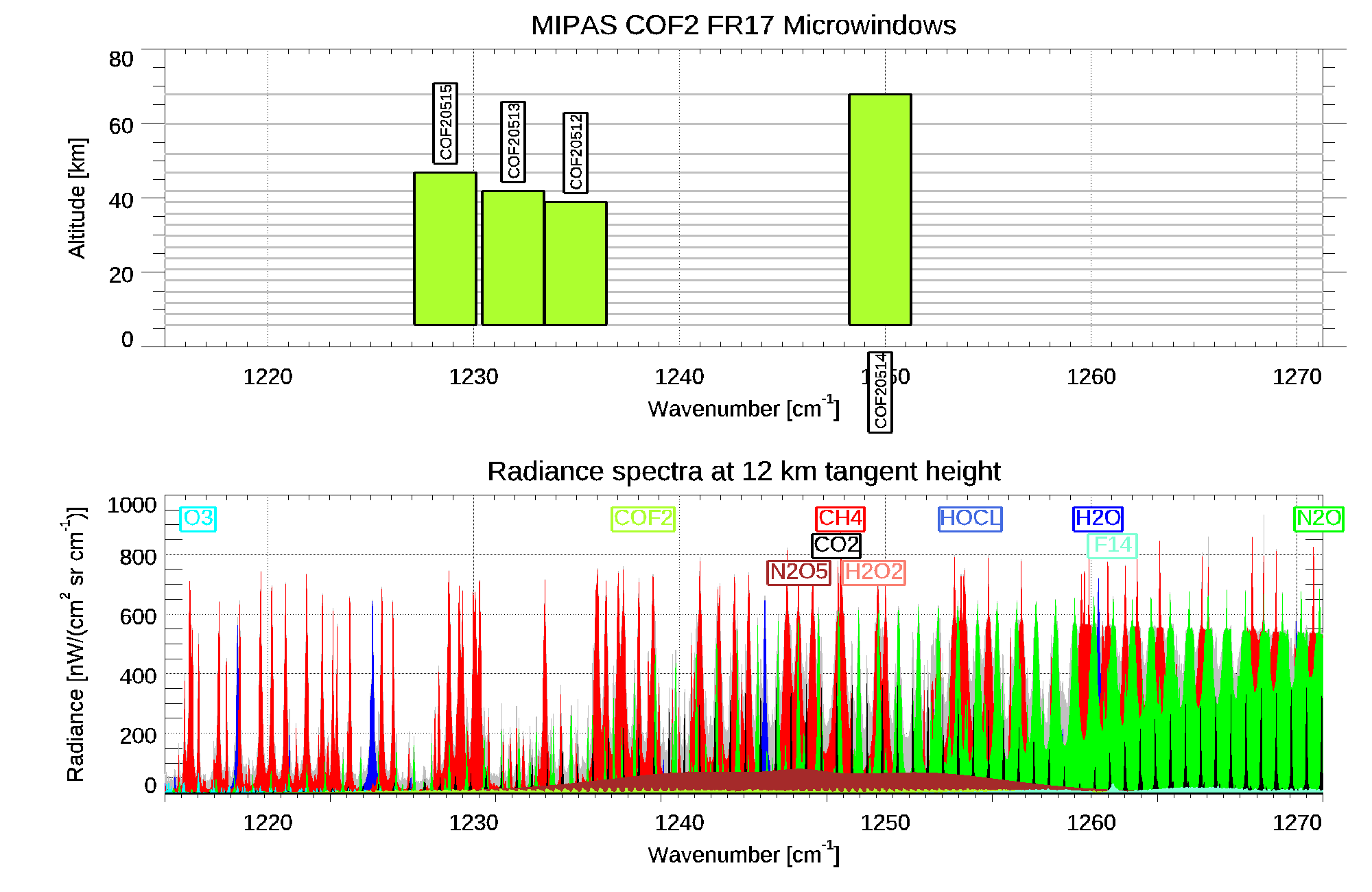

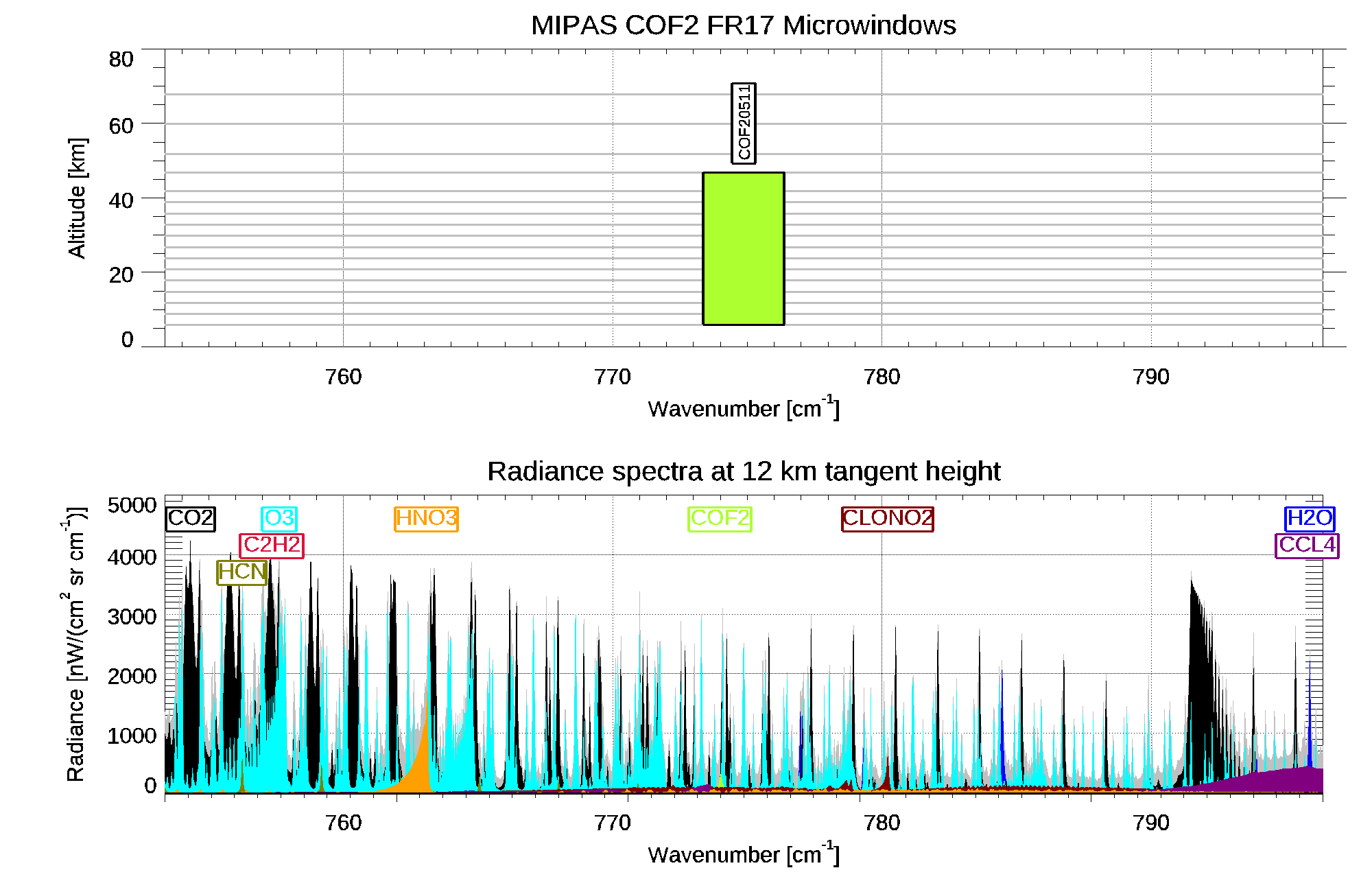

FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

COF20511 773.3750 776.3750 6.0 47.0 H2O CO2 O3 C2H2 COF2 HCN CLONO2 CCL4 HNO3 NH3 NO2 C2H6 N2O5 PAN F22
COF20512 1233.4500 1236.4500 6.0 39.0 H2O CH4 N2O CO2 H2O2 N2O5 O3 HOCL COF2 F115 HNO3 SO2 F114 PAN F13
COF20513 1230.4250 1233.4250 6.0 42.0 H2O CH4 N2O H2O2 CO2 O3 HOCL COF2 N2O5 HNO3 SO2 F115 F114 F13 PAN
COF20514 1248.2500 1251.2500 6.0 68.0 H2O N2O CH4 CO2 H2O2 N2O5 HOCL COF2 F14 O3 HNO3 F115 PAN SO2 F114
COF20515 1227.1250 1230.1250 6.0 47.0 H2O CH4 N2O H2O2 CO2 O3 HOCL COF2 HNO3 N2O5 SO2 F13 F115 F114 F113

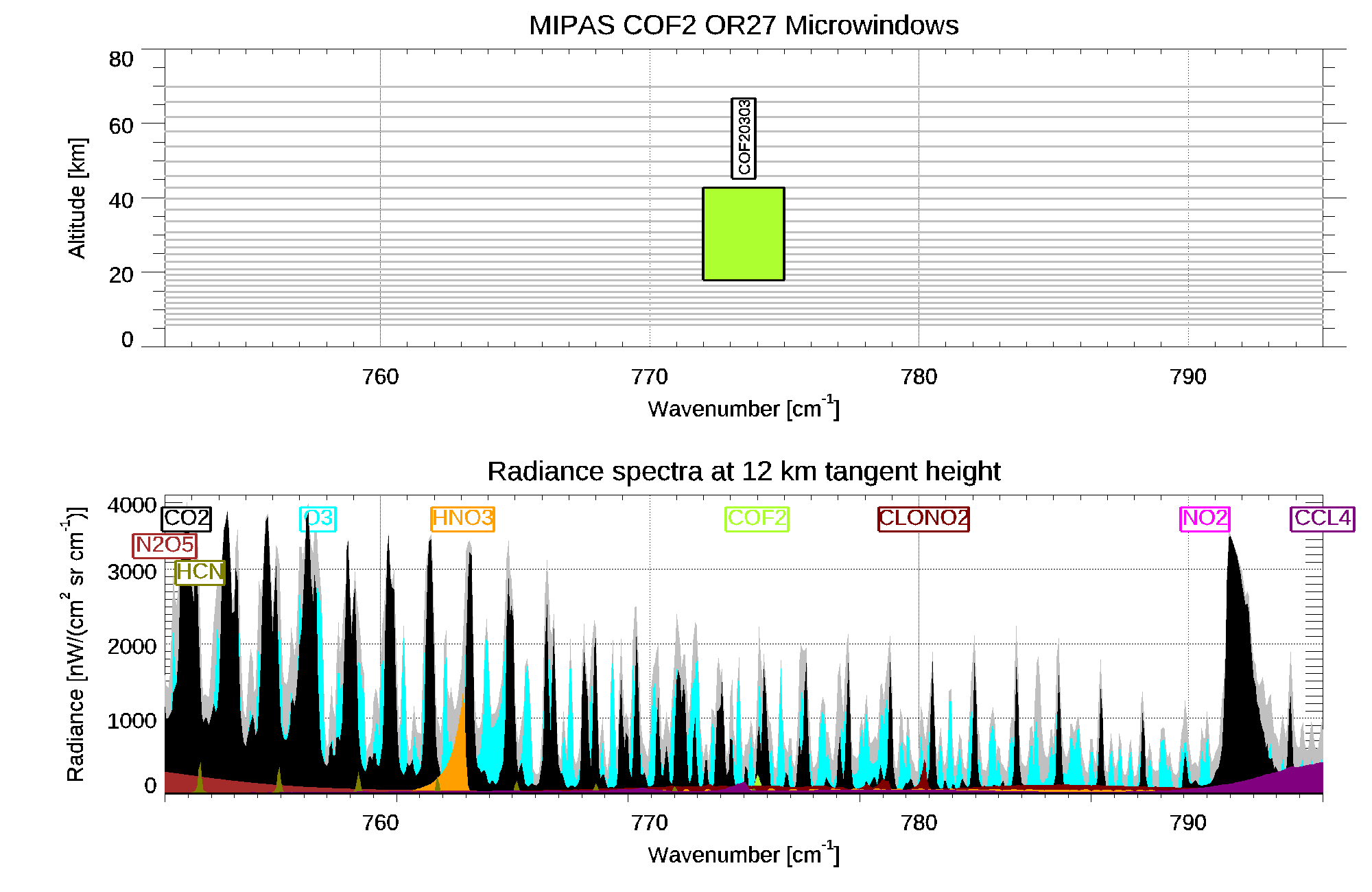

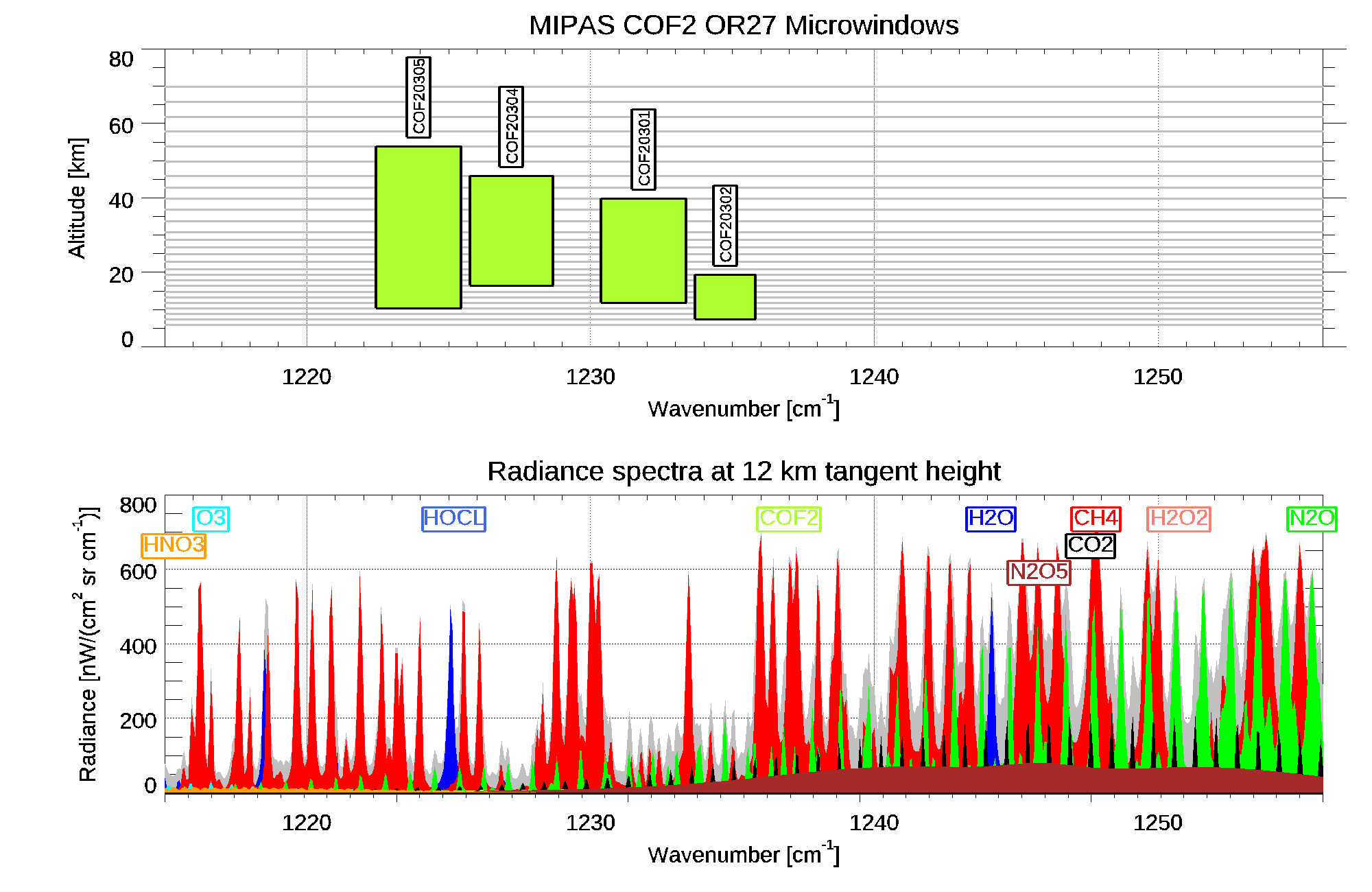

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

COF20301 1230.3750 1233.3750 12.0 40.0 H2O2 H2O N2O CH4 CO2 N2O5 COF2 HOCL O3 HNO3 SO2 F115 NH3 F114 F13
COF20302 1233.6875 1235.8125 7.5 19.5 H2O N2O CH4 H2O2 CO2 N2O5 COF2 O3 HOCL HNO3 F115 SO2 F114 PAN F13
COF20303 772.0000 775.0000 18.0 43.0 O3 CO2 COF2 CLONO2 HNO3 N2O5 NO2 HCN CCL4 NH3 C2H2 H2O F22
COF20304 1225.7500 1228.6875 16.5 46.0 CH4 N2O O3 H2O2 COF2 HOCL HNO3 N2O5 CO2 H2O SO2 F13 F113 F114
COF20305 1222.4375 1225.4375 10.5 54.0 CH4 H2O H2O2 N2O O3 HNO3 HOCL COF2 CO2 N2O5 SO2 F13 F113 F114 F115
