MIPAS F11 Microwindows

updated 26MAR21

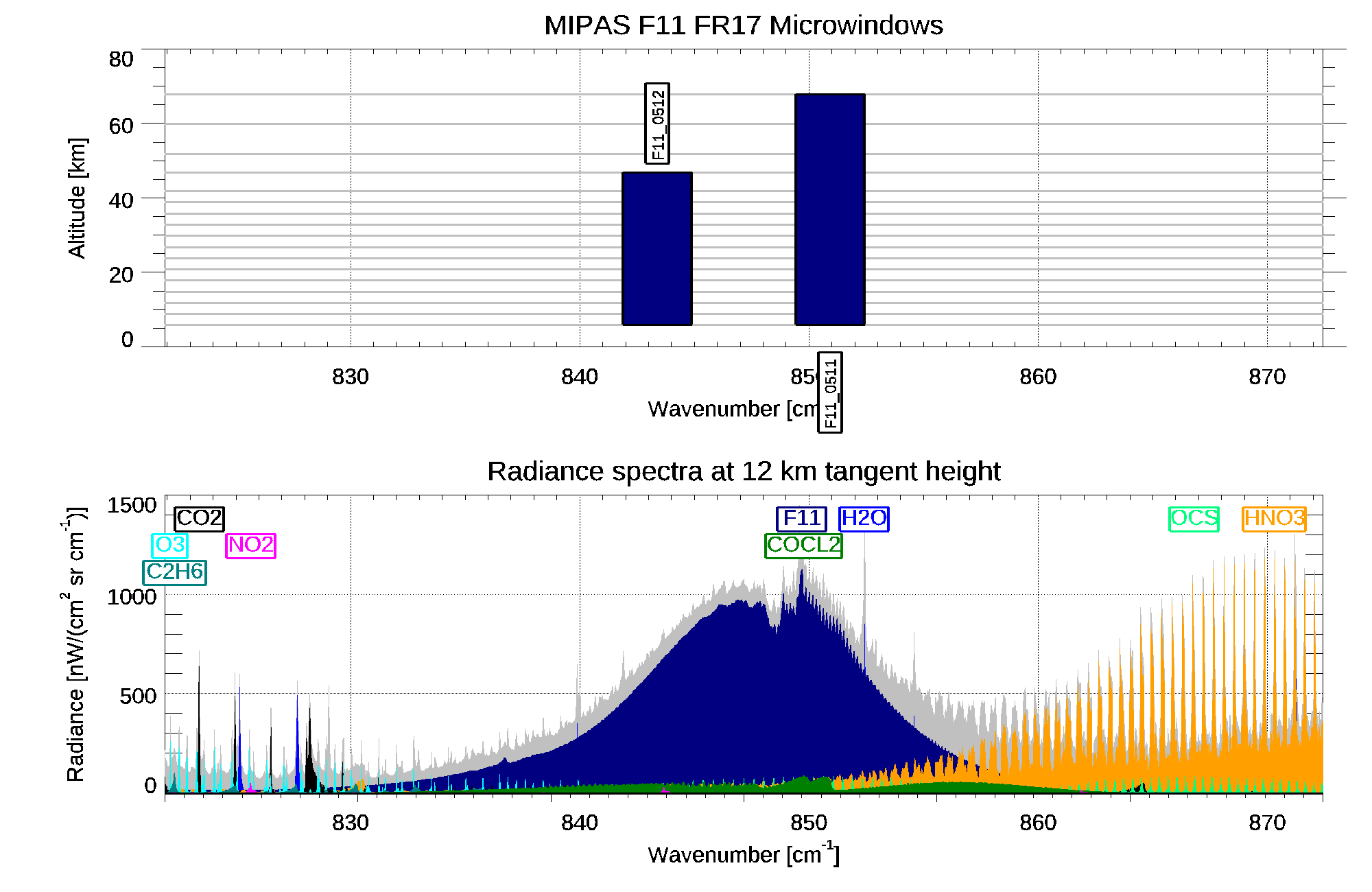

FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

F11_0511 849.4250 852.4250 6.0 68.0 H2O F11 HNO3 CO2 NH3 OCS O3 C2H6 COCL2 F114 CLO N2O5 F12 PAN F22
F11_0512 841.9000 844.9000 6.0 47.0 H2O F11 CO2 HNO3 O3 OCS C2H6 COCL2 NO2 F22 F114 CLO PAN N2O5 NH3

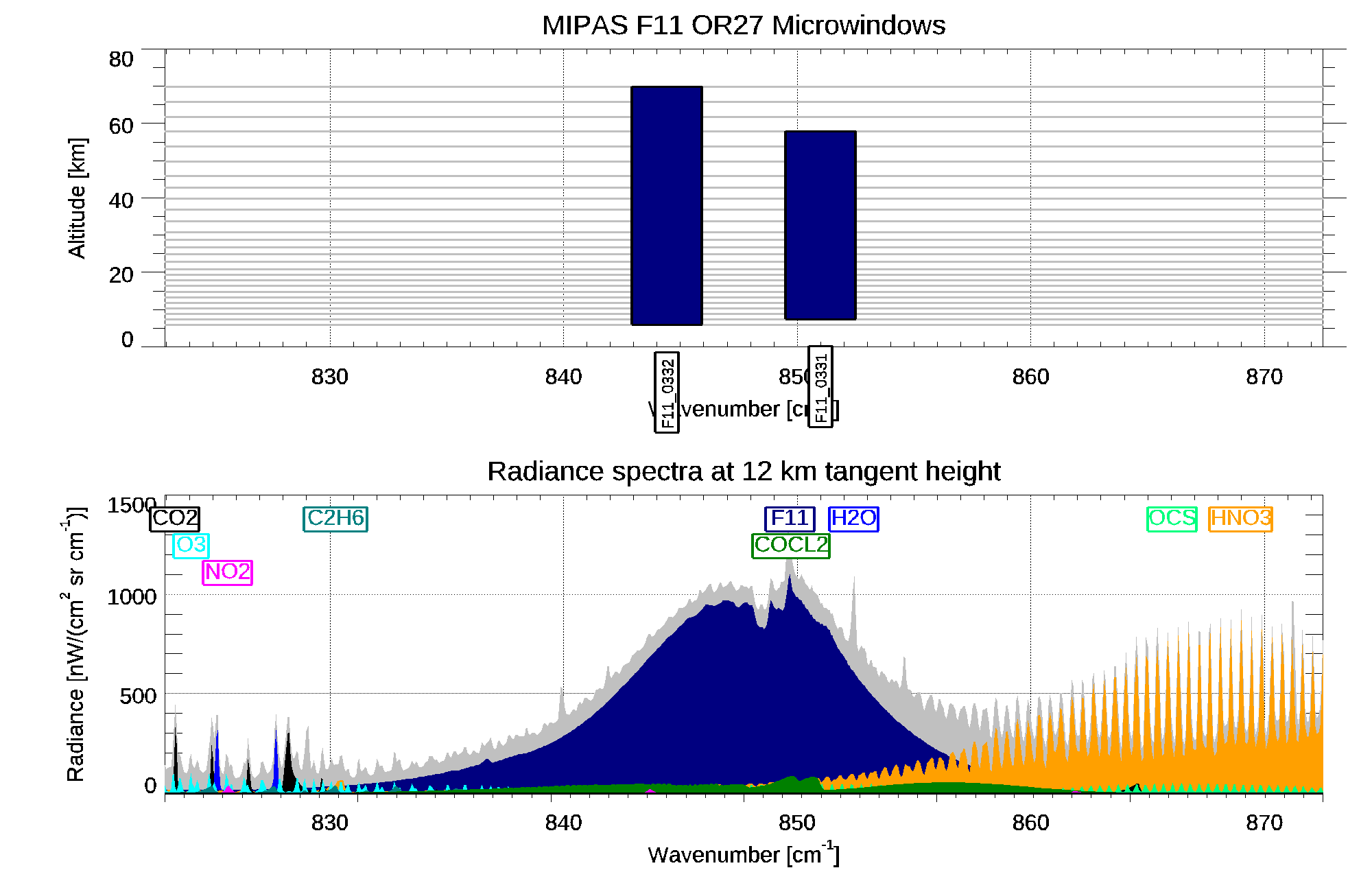

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

F11_0331 849.5000 852.5000 7.5 58.0 H2O F11 HNO3 NH3 CO2 OCS O3 COCL2 C2H6 F114 N2O5 CLO PAN F12 F22
F11_0332 842.9375 845.9375 6.0 70.0 H2O F11 HNO3 CO2 OCS O3 C2H6 COCL2 NO2 F114 F22 N2O5 PAN CLO NH3

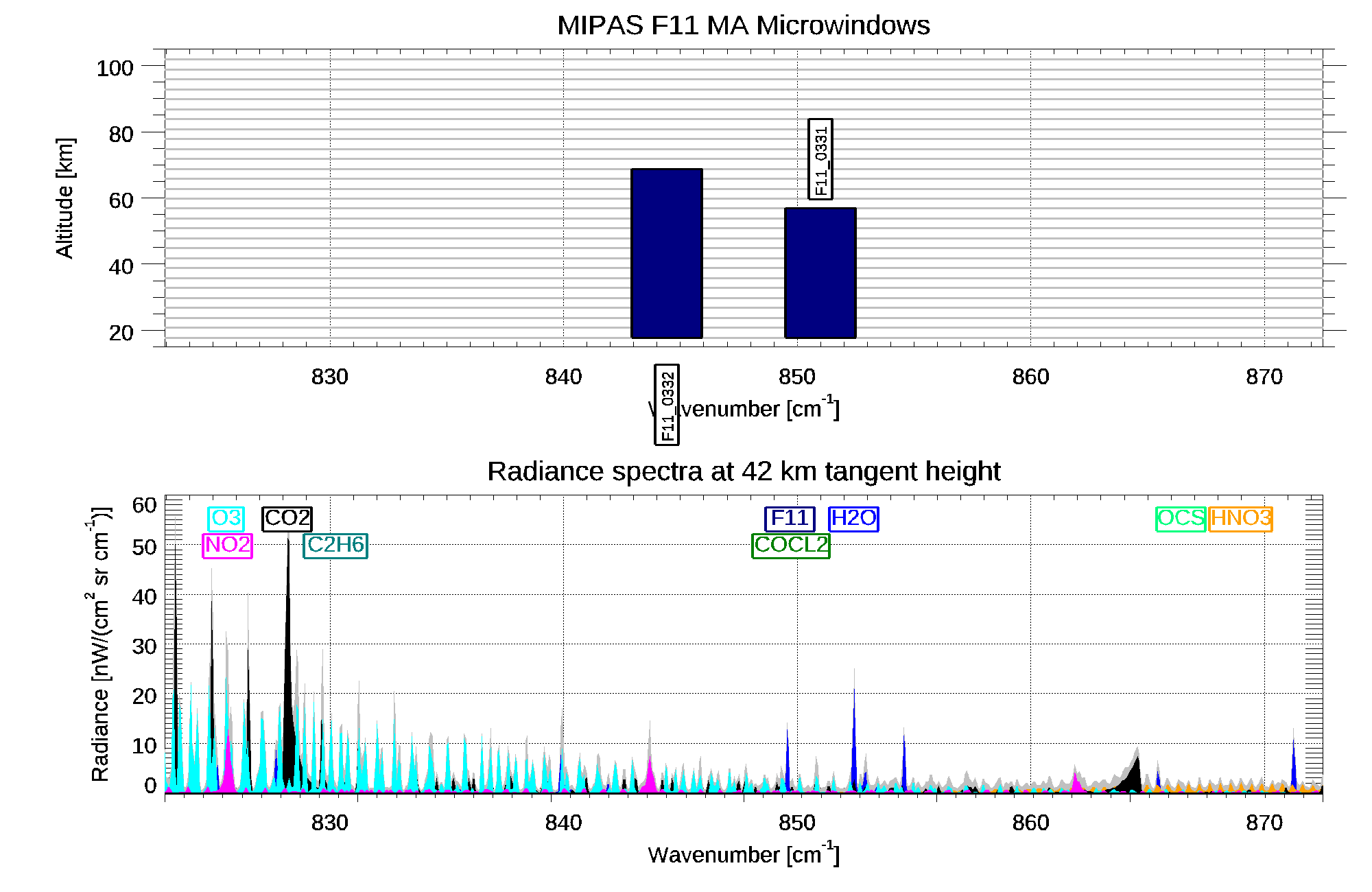

MA Mode

2005-2012 29 Sweeps from 18-102 km @0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

F11_0331 849.5000 852.5000 18.0 57.0 H2O F11 HNO3 NH3 CO2 OCS O3 COCL2 C2H6 F114 N2O5 CLO PAN F12 F22
F11_0332 842.9375 845.9375 18.0 69.0 H2O F11 HNO3 CO2 OCS O3 C2H6 COCL2 NO2 F114 F22 N2O5 PAN CLO NH3
