MIPAS F113 Microwindows

updated 26MAR21

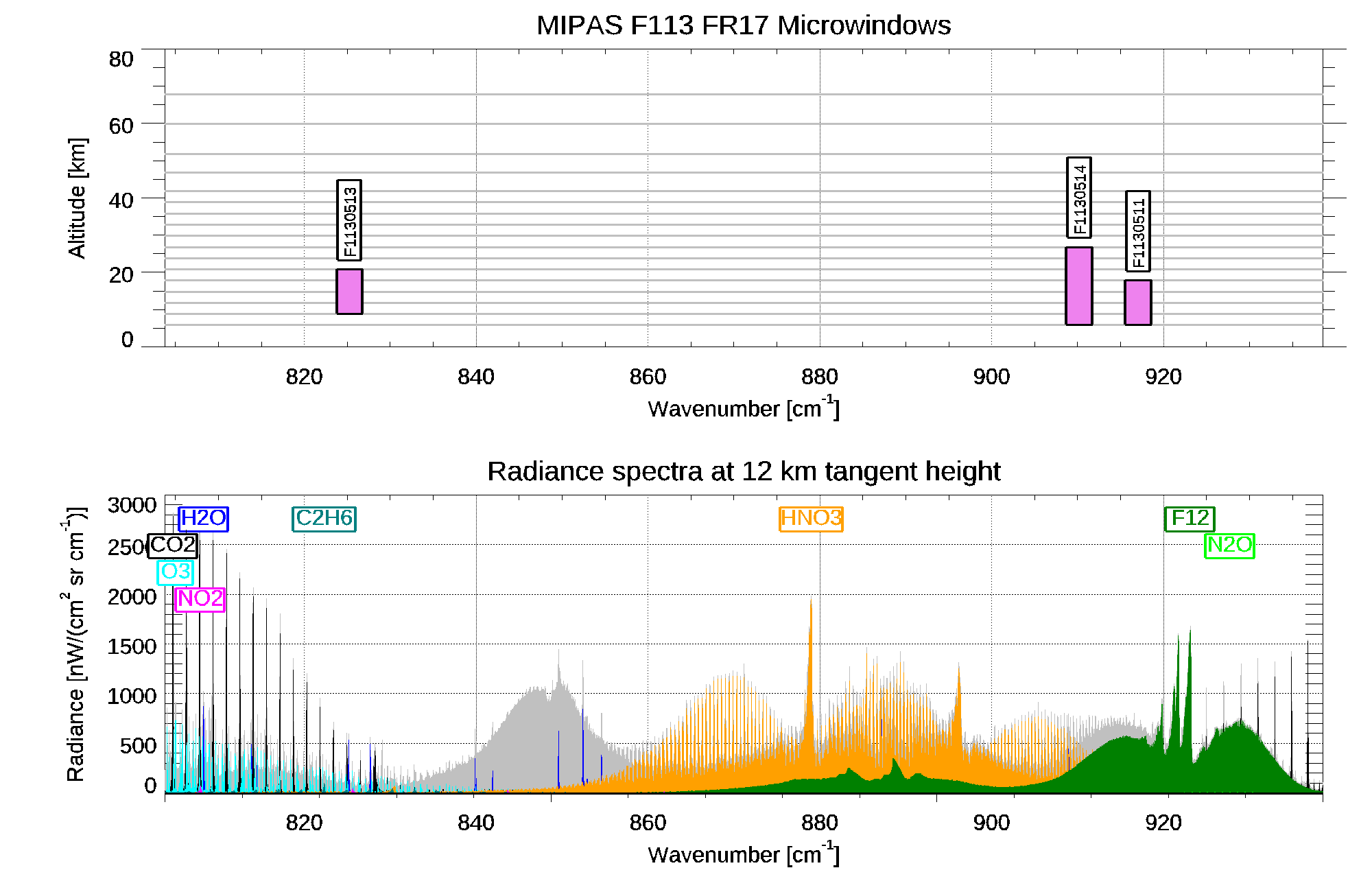

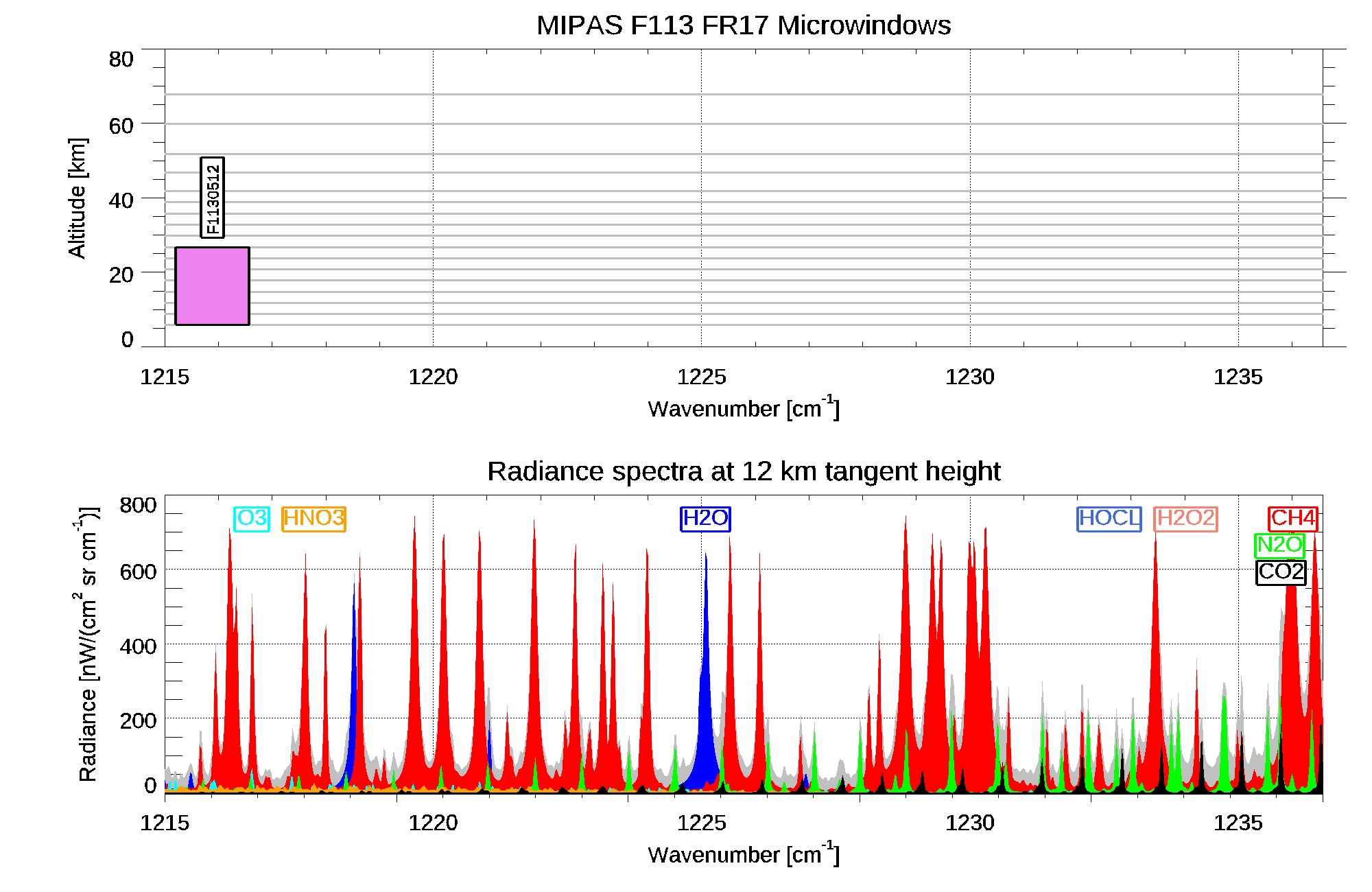

FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

F1130511 915.5500 918.5500 6.0 18.0 H2O CO2 F12 HNO3 NH3 C2H4 N2O F113 PAN F114 NO2 O3
F1130512 1215.2000 1216.5750 6.0 27.0 H2O CH4 O3 N2O HNO3 H2O2 HOCL F13 CO2 SO2 COF2 F113 N2O5 PAN F114
F1130513 823.7750 826.7750 9.0 21.0 H2O O3 CO2 HNO3 C2H6 NO2 F22 NH3 CLONO2 PAN F11 HNO4 CLO F113 N2O5
F1130514 908.7250 911.7250 6.0 27.0 H2O HNO3 CO2 F12 NH3 C2H4 N2O F113 F114 PAN C2H6 NO2

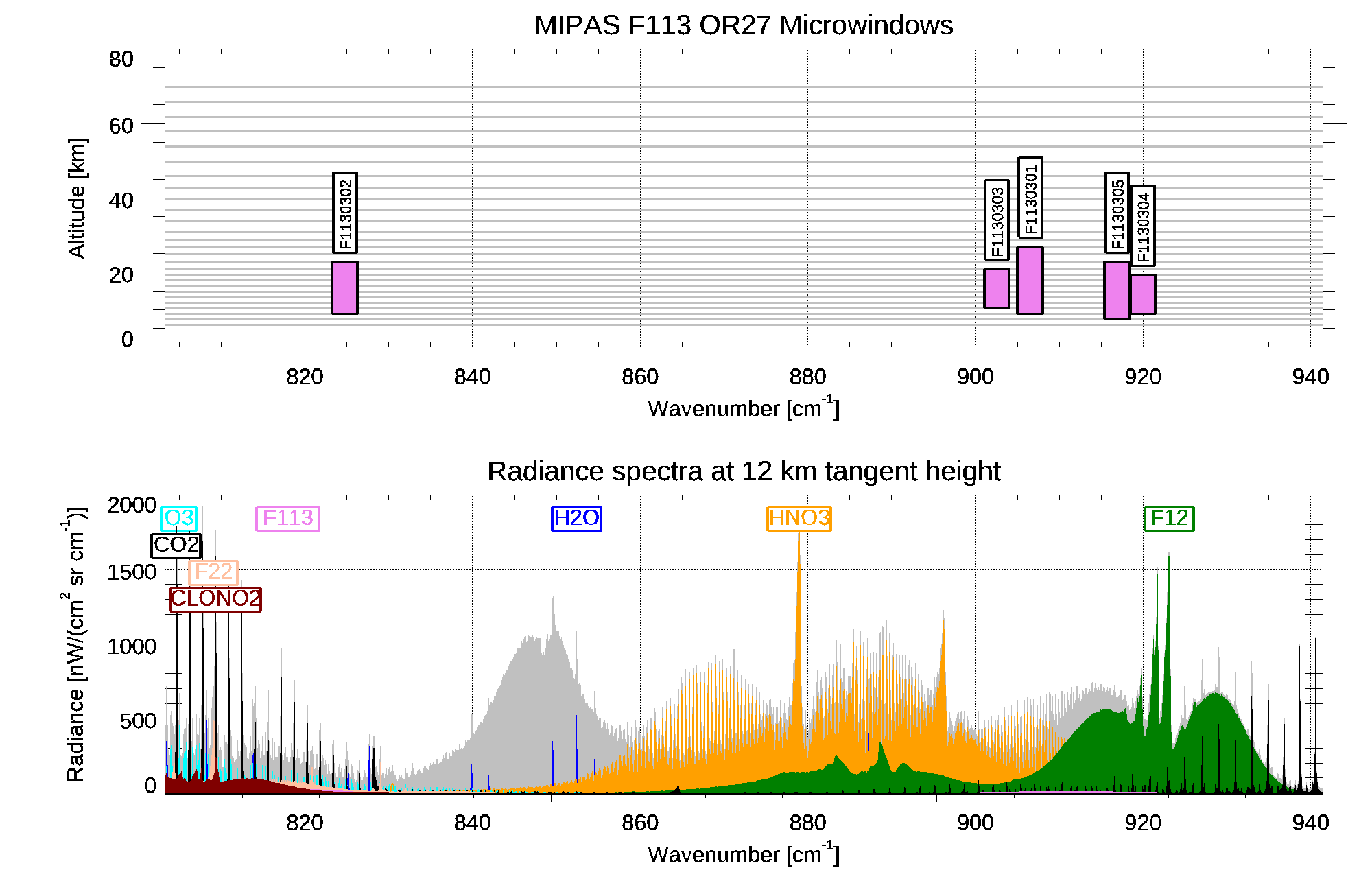

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

F1130301 905.0625 908.0625 9.0 27.0 H2O HNO3 F12 CO2 NH3 F113 C2H4 N2O PAN F114 NO2 C2H6
F1130302 823.3125 826.3125 9.0 23.0 H2O O3 CO2 HNO3 F22 CLONO2 NO2 PAN C2H6 F11 HNO4 F113 CLO NH3 N2O5
F1130303 901.0625 904.0625 10.5 21.0 HNO3 H2O CO2 F12 F113 C2H4 N2O5 NH3 N2O F114 PAN NO2 C2H6
F1130304 918.5000 921.4375 9.0 19.5 H2O F12 CO2 HNO3 NH3 N2O PAN F113 C2H4 F114 O3
F1130305 915.4375 918.4375 7.5 23.0 H2O HNO3 F12 CO2 NH3 C2H4 N2O F113 PAN F114 NO2 O3
