MIPAS F114 Microwindows

updated 26MAR21

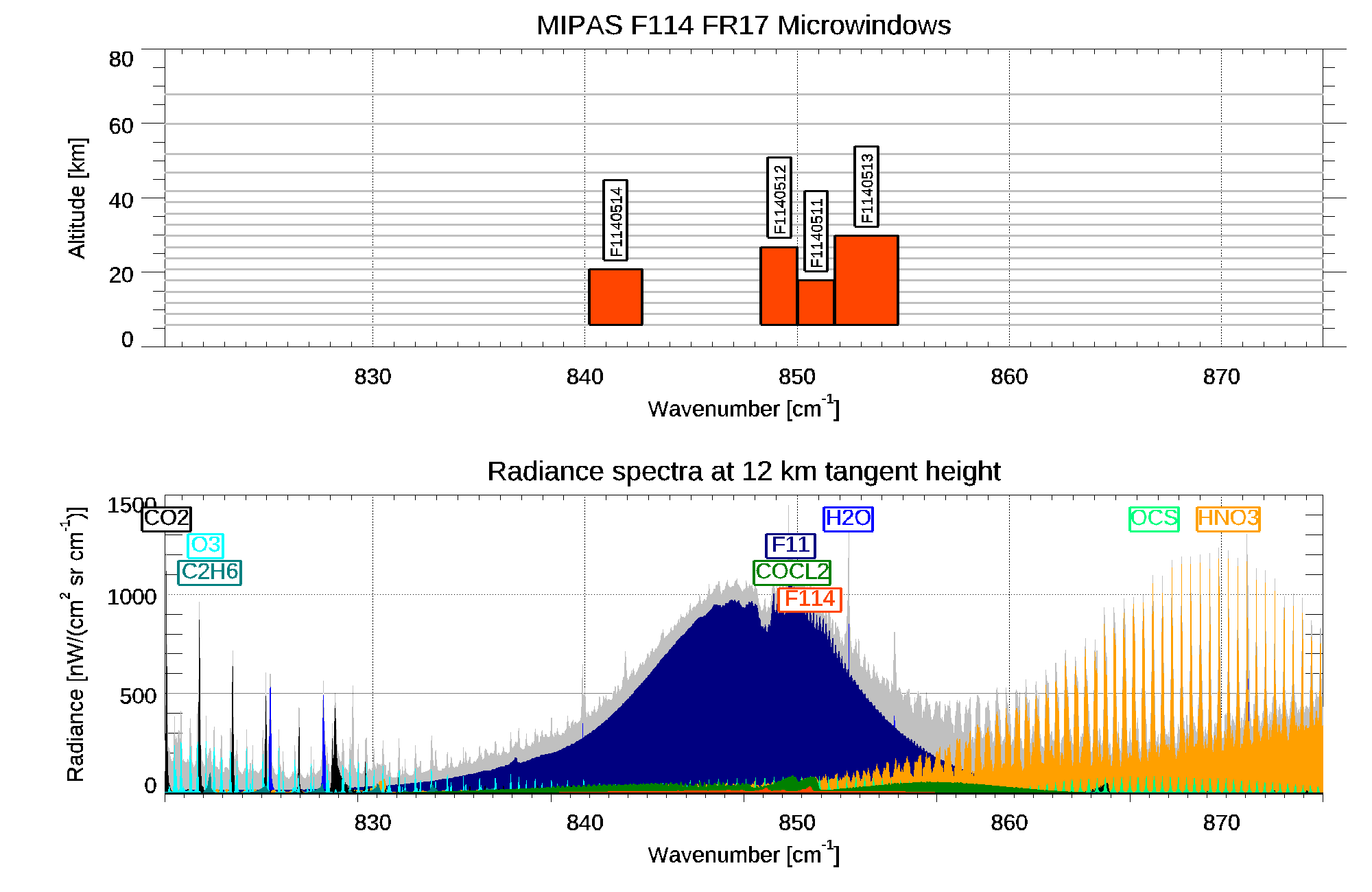

FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

F1140511 850.0500 851.7500 6.0 18.0 H2O F11 HNO3 NH3 CO2 OCS O3 C2H6 COCL2 F114 CLO N2O5 F12 PAN F22
F1140512 848.3000 850.0250 6.0 27.0 H2O F11 HNO3 CO2 OCS O3 C2H6 COCL2 F114 CLO N2O5 NH3 PAN F22 F12
F1140513 851.7750 854.7750 6.0 30.0 H2O F11 HNO3 NH3 CO2 OCS O3 C2H6 COCL2 CLO F114 N2O5 F12 PAN NO2
F1140514 840.2000 842.7000 6.0 21.0 H2O F11 CO2 O3 HNO3 C2H6 OCS COCL2 F22 PAN F114 N2O5 CLO NO2 NH3

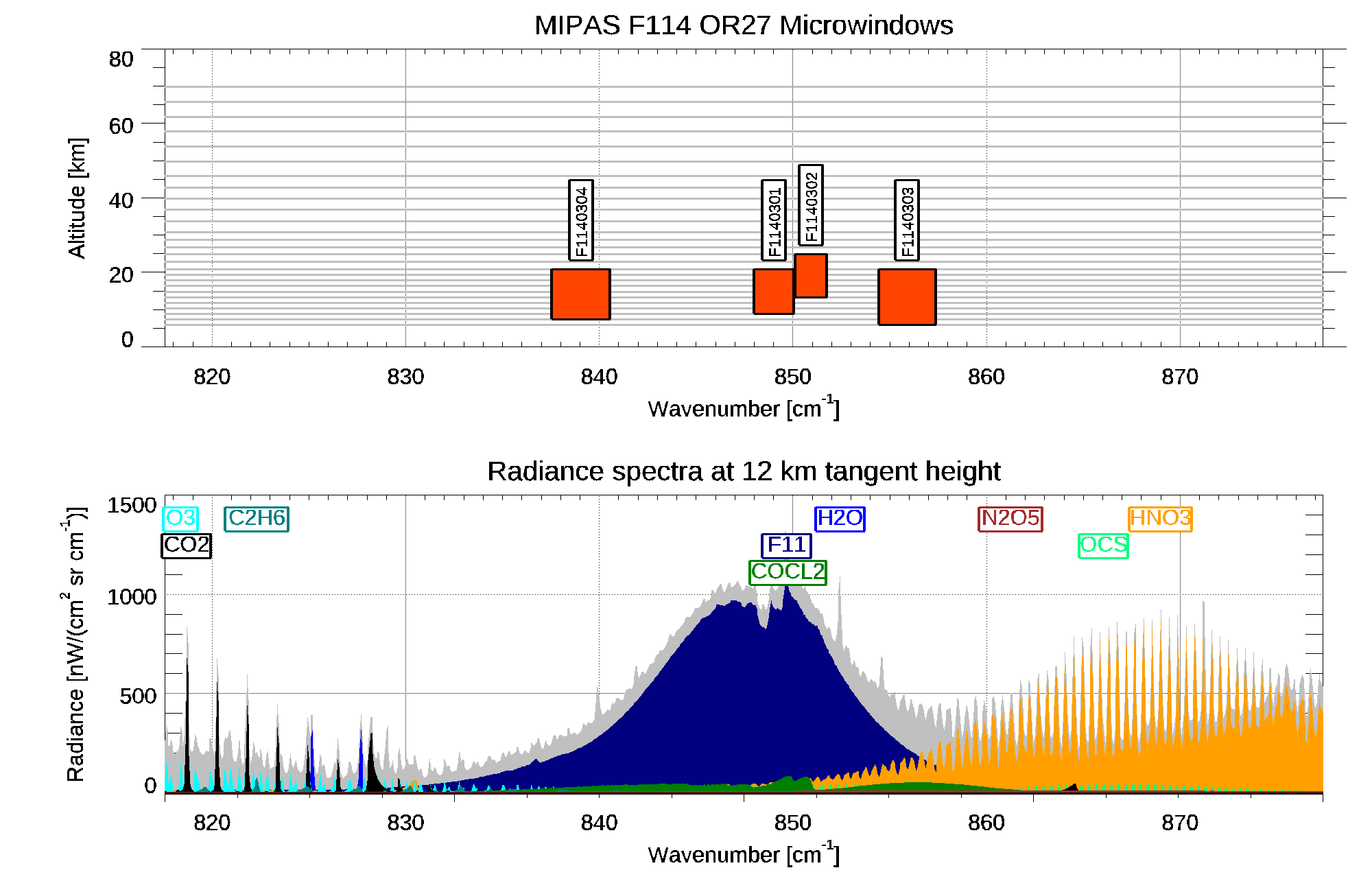

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

F1140301 848.0000 850.0625 9.0 21.0 H2O F11 HNO3 OCS O3 CO2 COCL2 C2H6 F114 N2O5 NH3 CLO PAN F22 NO2
F1140302 850.1250 851.7500 13.5 25.0 F11 HNO3 O3 OCS CO2 COCL2 N2O5 NH3 CLO H2O F114 C2H6 NO2 PAN F22
F1140303 854.4375 857.3750 6.0 21.0 H2O HNO3 F11 CO2 OCS C2H6 COCL2 O3 F12 CLO N2O5 F114 C2H4 PAN NH3
F1140304 837.5625 840.5625 7.5 21.0 H2O F11 O3 HNO3 CO2 C2H6 OCS COCL2 PAN F22 N2O5 F114 CLO NO2 F113
