MIPAS F12 Microwindows

updated 26MAR21

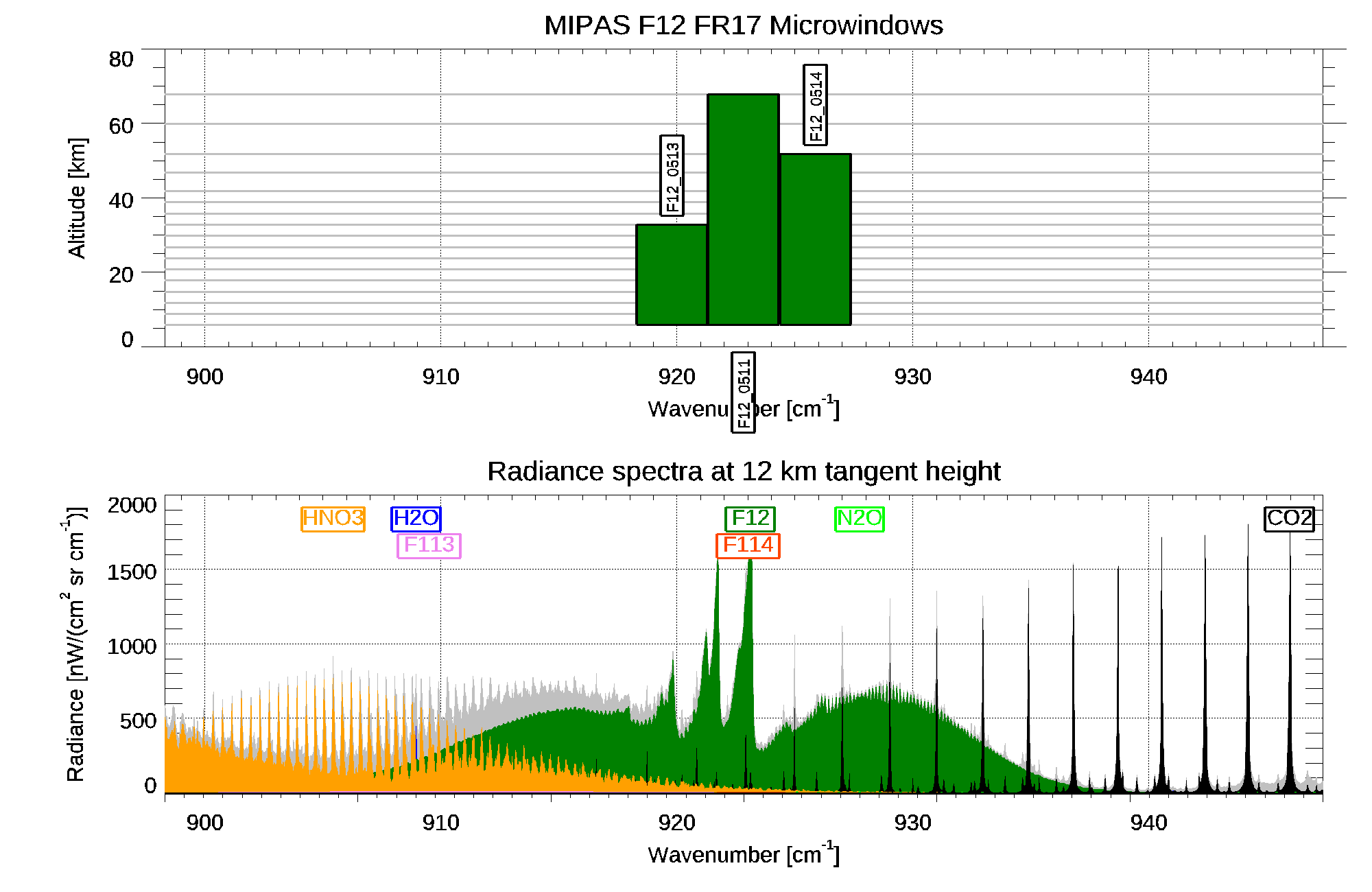

FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

F12_0511 921.3250 924.3250 6.0 68.0 H2O F12 CO2 HNO3 NH3 C2H4 N2O PAN F114 F113 O3

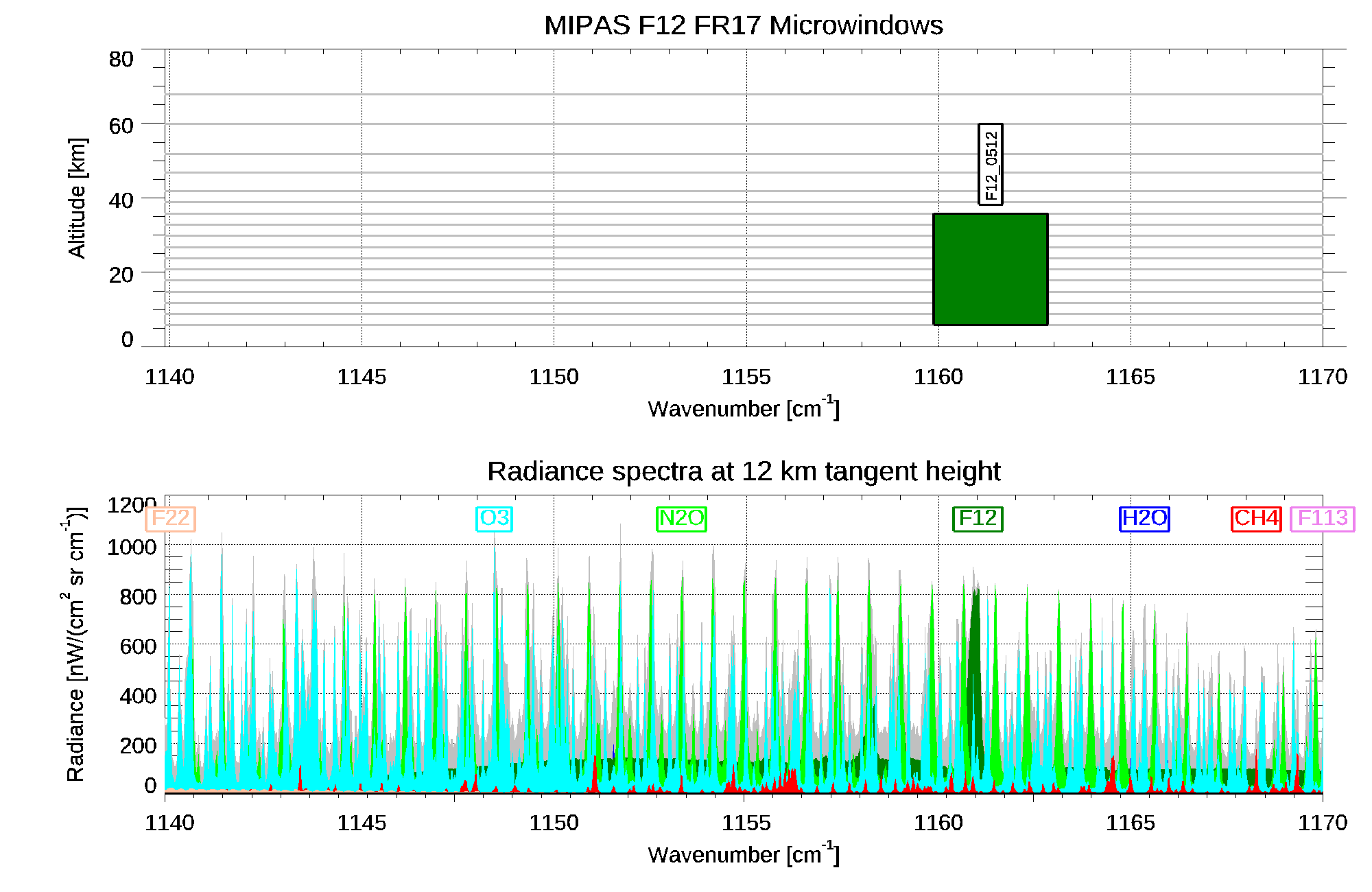

F12_0512 1159.8750 1162.8500 6.0 36.0 H2O F12 N2O O3 CH4 SO2 PAN NH3 F22 F113 HNO3 F114
F12_0513 918.3000 921.3000 6.0 33.0 H2O CO2 F12 NH3 HNO3 N2O C2H4 PAN F113 F114 O3
F12_0514 924.3750 927.3750 6.0 52.0 H2O CO2 F12 NH3 HNO3 N2O PAN C2H4 F114 F113 SF6 O3

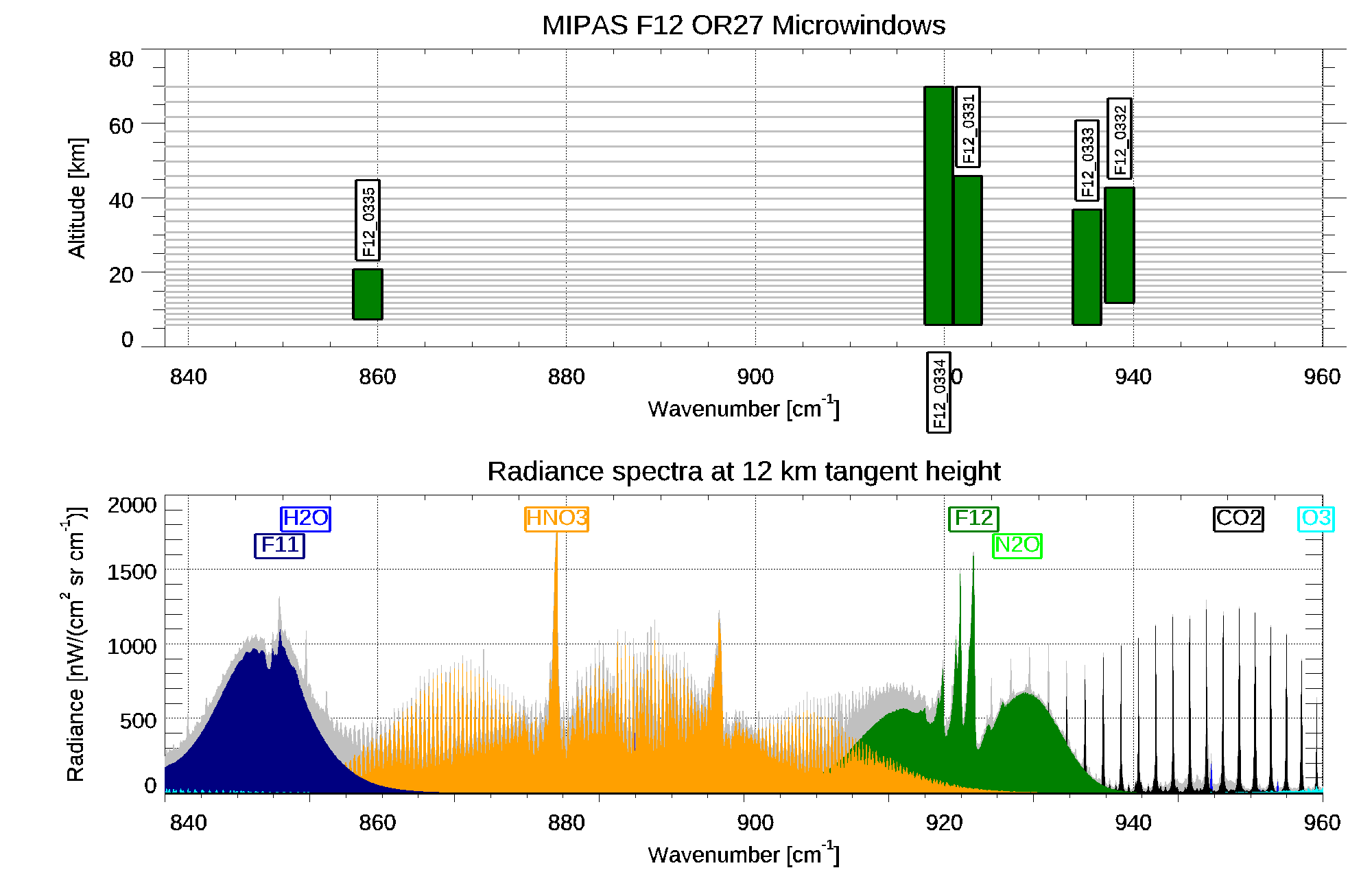

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

F12_0331 921.0000 924.0000 6.0 46.0 H2O F12 CO2 NH3 HNO3 C2H4 N2O PAN F114 F113 O3 NO2
F12_0332 937.0625 940.0625 12.0 43.0 CO2 H2O F12 NH3 HNO3 O3 COF2 PAN SF6 C2H4 N2O F113 F114
F12_0333 933.6250 936.6250 6.0 37.0 H2O CO2 F12 NH3 HNO3 PAN N2O C2H4 O3 SF6 F113 COF2 F114 NO2 CH3CL
F12_0334 917.9375 920.9375 6.0 70.0 H2O CO2 F12 HNO3 NH3 N2O F113 PAN F114 C2H4 O3 NO2
F12_0335 857.5000 860.5000 7.5 21.0 H2O HNO3 F11 CO2 O3 COCL2 C2H6 OCS F12 CLO N2O5 PAN F114 NO2 C2H4

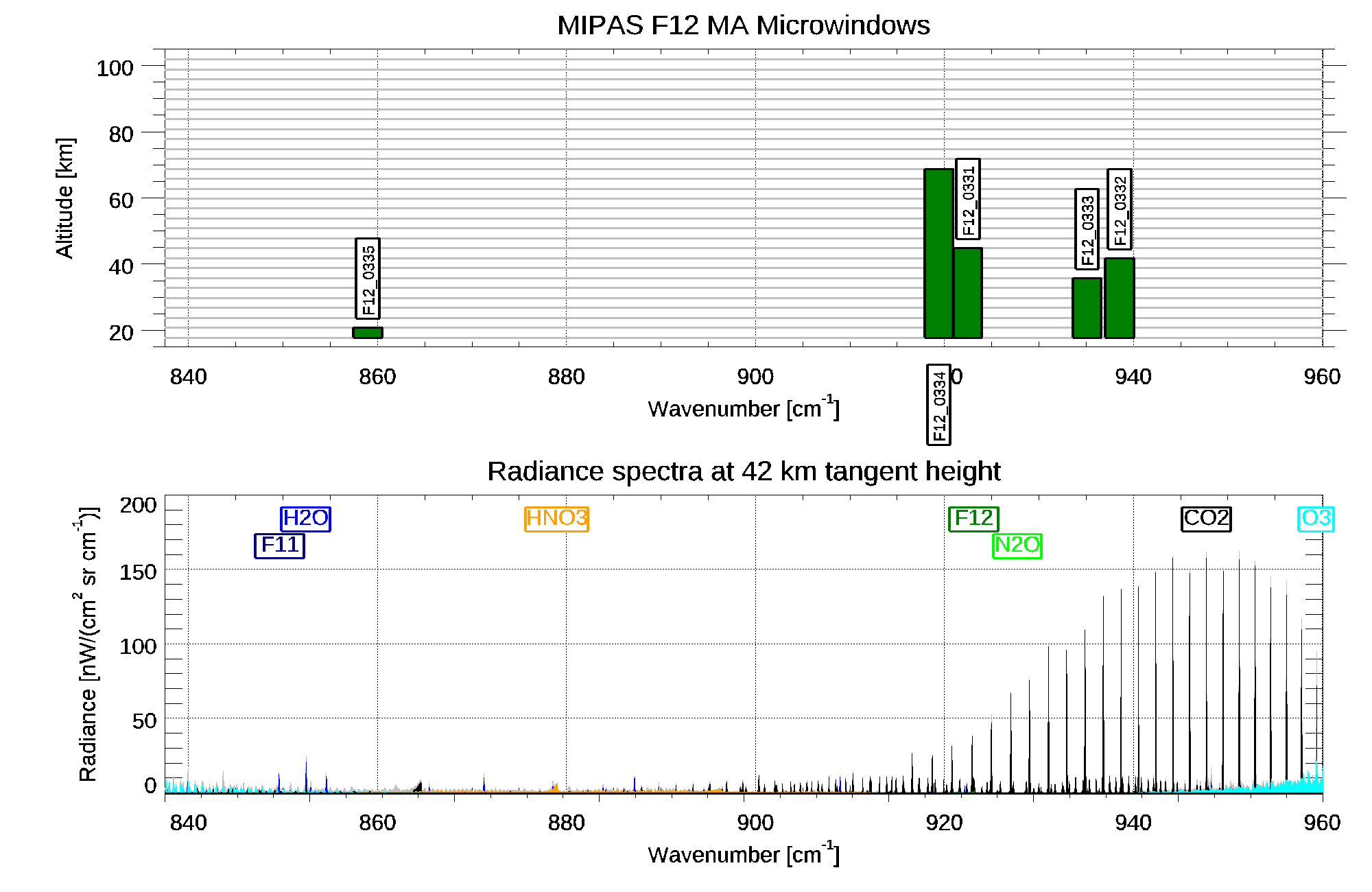

MA Mode

2005-2012 29 Sweeps from 18-102 km @0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

F12_0331 921.0000 924.0000 18.0 45.0 H2O F12 CO2 NH3 HNO3 C2H4 N2O PAN F114 F113 O3 NO2
F12_0332 937.0625 940.0625 18.0 42.0 CO2 H2O F12 NH3 HNO3 O3 COF2 PAN SF6 C2H4 N2O F113 F114
F12_0333 933.6250 936.6250 18.0 36.0 H2O CO2 F12 NH3 HNO3 PAN N2O C2H4 O3 SF6 F113 COF2 F114 NO2 CH3CL
F12_0334 917.9375 920.9375 18.0 69.0 H2O CO2 F12 HNO3 NH3 N2O F113 PAN F114 C2H4 O3 NO2
F12_0335 857.5000 860.5000 18.0 21.0 H2O HNO3 F11 CO2 O3 COCL2 C2H6 OCS F12 CLO N2O5 PAN F114 NO2 C2H4
