MIPAS F14 Microwindows

updated 26MAR21


FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

F14_0511 1282.0000 1285.0000 9.0 68.0 CH4 H2O N2O HNO3 F14 H2O2 CLONO2 CO2 C2H2 PAN N2O5 HOCL NO2 COF2 F22
F14_0512 1285.0250 1288.0250 9.0 47.0 CH4 N2O H2O HNO3 F14 H2O2 CLONO2 CO2 PAN C2H2 N2O5 HOCL NO2 F22
F14_0513 1278.8250 1281.8250 9.0 60.0 CH4 N2O H2O F14 H2O2 HNO3 CO2 CLONO2 C2H2 HOCL PAN N2O5 COF2 NO2 F114
F14_0514 1256.4500 1259.4500 9.0 30.0 CH4 N2O H2O H2O2 CO2 N2O5 HOCL COF2 F14 HNO3 O3 C2H2 PAN F115

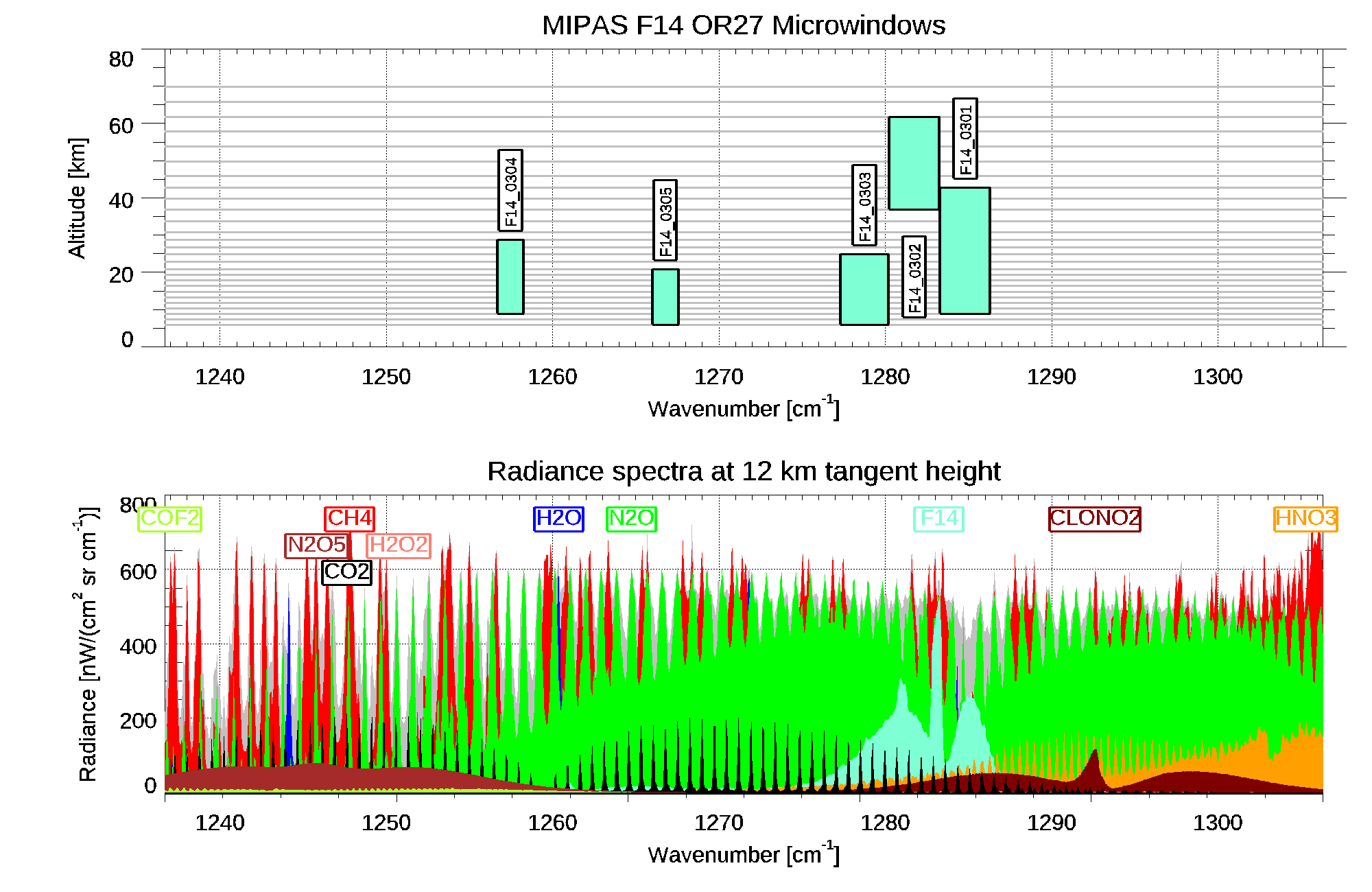

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

F14_0301 1283.3125 1286.3125 9.0 43.0 CH4 H2O N2O HNO3 F14 H2O2 CLONO2 CO2 C2H2 PAN N2O5 HOCL F22 NO2 COF2
F14_0302 1280.2500 1283.2500 37.0 62.0 CH4 N2O F14 CLONO2 H2O CO2 HNO3 N2O5 H2O2 NO2
F14_0303 1277.3125 1280.1875 6.0 25.0 H2O CH4 N2O F14 H2O2 CO2 HNO3 CLONO2 C2H2 PAN HOCL N2O5 F114 COF2 F22
F14_0304 1256.6875 1258.2500 9.0 29.0 H2O N2O CH4 H2O2 CO2 N2O5 COF2 HOCL F14 HNO3 O3 PAN F115 F114
F14_0305 1266.0000 1267.5625 6.0 21.0 H2O N2O CH4 H2O2 CO2 F14 HNO3 HOCL COF2 N2O5 CLONO2 C2H2 PAN F114 O3
