MIPAS H2O Microwindows

updated 26MAR21

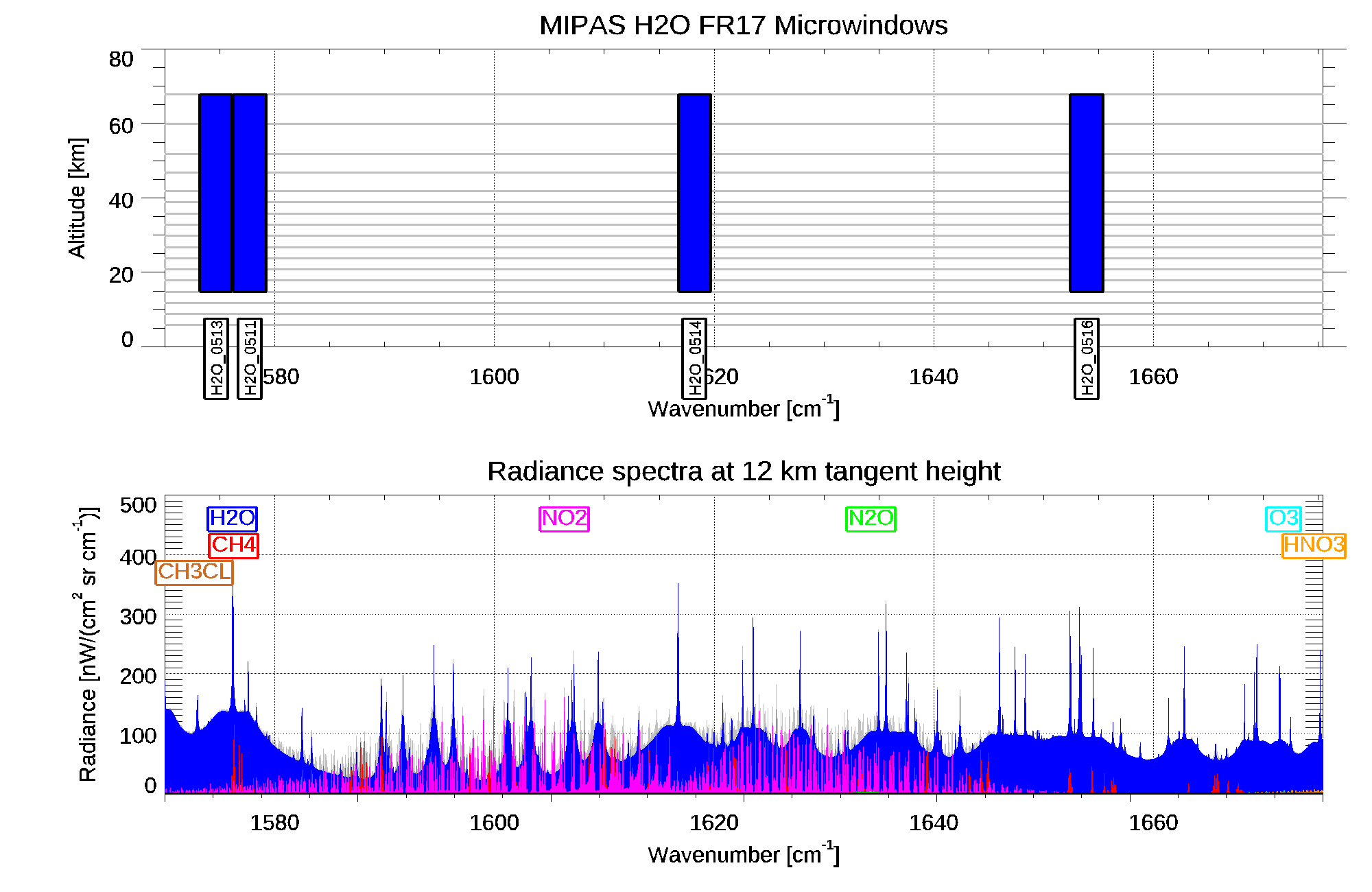

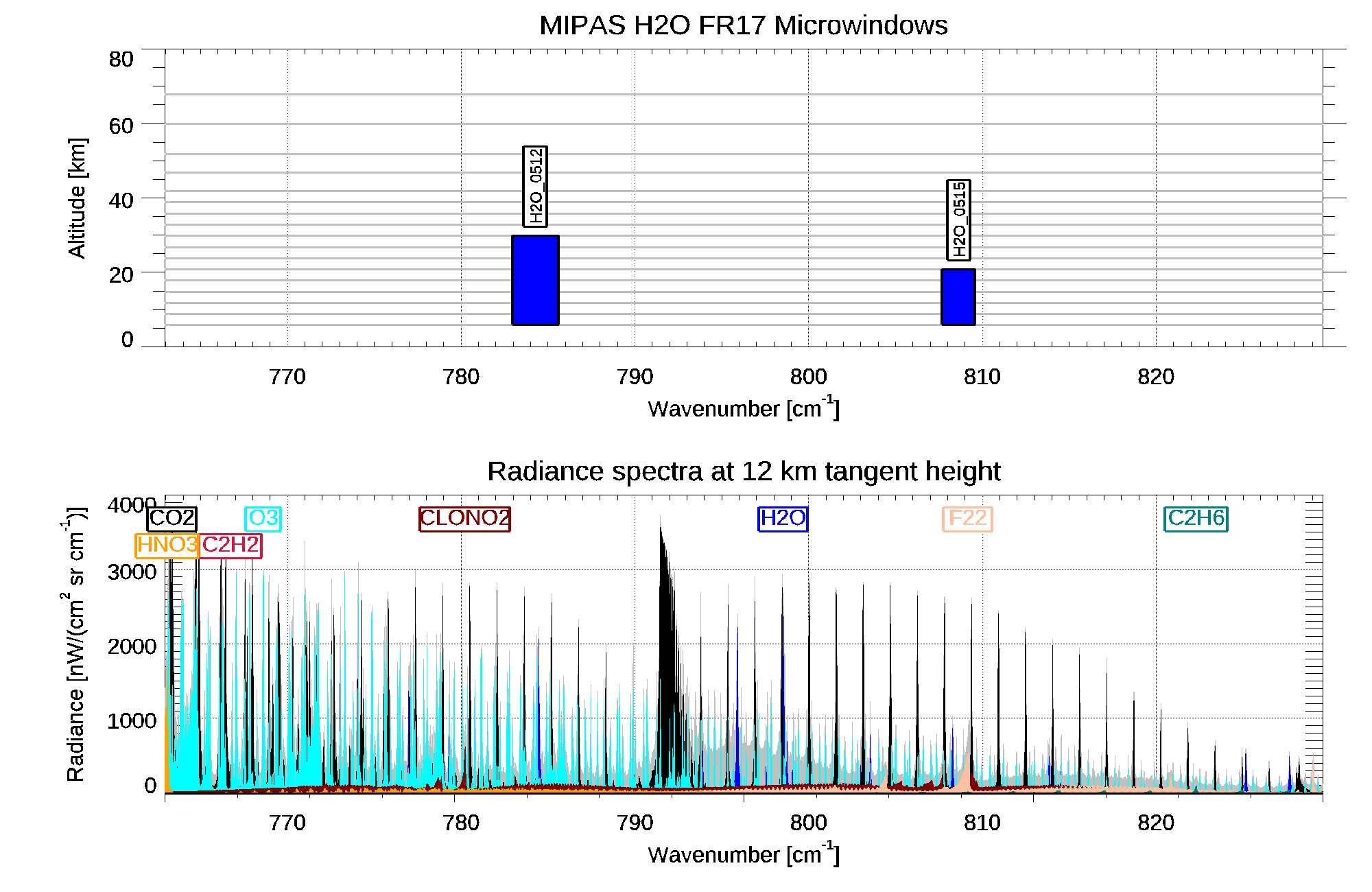

FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

H2O_0511 1576.2250 1579.2250 15.0 68.0 H2O CH4 O2 NO2 NH3
H2O_0512 782.9500 785.6000 6.0 30.0 H2O CO2 O3 CLONO2 C2H2 HNO3 PAN CCL4 C2H6 NH3 HNO4 F22 COF2 NO2 N2O5
H2O_0513 1573.2000 1576.1500 15.0 68.0 H2O O2 NO2 CH4 NH3 CH3CL
H2O_0514 1616.7500 1619.7250 15.0 68.0 H2O NO2 CH4 O2 NH3 N2O
H2O_0515 807.7000 809.6000 6.0 21.0 H2O CO2 O3 F22 CLONO2 NH3 C2H6 HNO4 NO2 HNO3 PAN C2H2 F113 CCL4 N2O5
H2O_0516 1652.4250 1655.4250 15.0 68.0 H2O O2 CH4 NO2 O3 HNO3 N2O

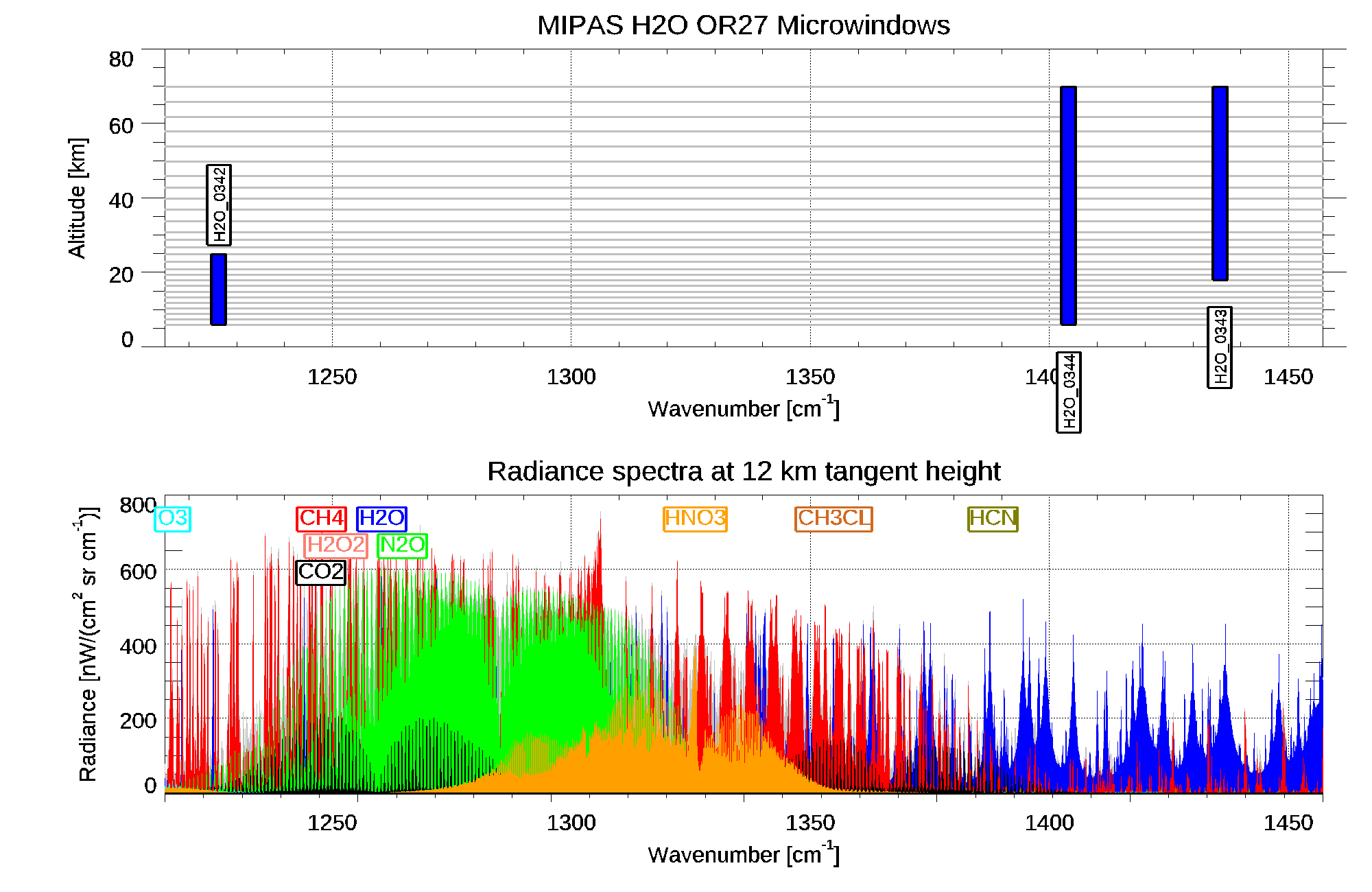

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

H2O_0341 1574.1250 1577.1250 12.0 70.0 H2O O2 CH4 NO2 NH3 CH3CL
H2O_0342 1224.8125 1227.8125 6.0 25.0 H2O CH4 N2O H2O2 CO2 O3 HNO3 HOCL COF2 N2O5 SO2 F13 F113 F114 F115
H2O_0343 1434.1875 1437.1875 18.0 70.0 H2O CH4 O2 HCN O3 CH3CL
H2O_0344 1402.5625 1405.5625 6.0 70.0 H2O CH4 O2 CO2 O3 HCN CH3CL N2O C2H4 SO2 NO2
H2O_0345 953.6250 956.6250 6.0 21.0 H2O CO2 O3 N2O NH3 COF2 C2H4 CH3CL SF6 F114 PAN HNO3

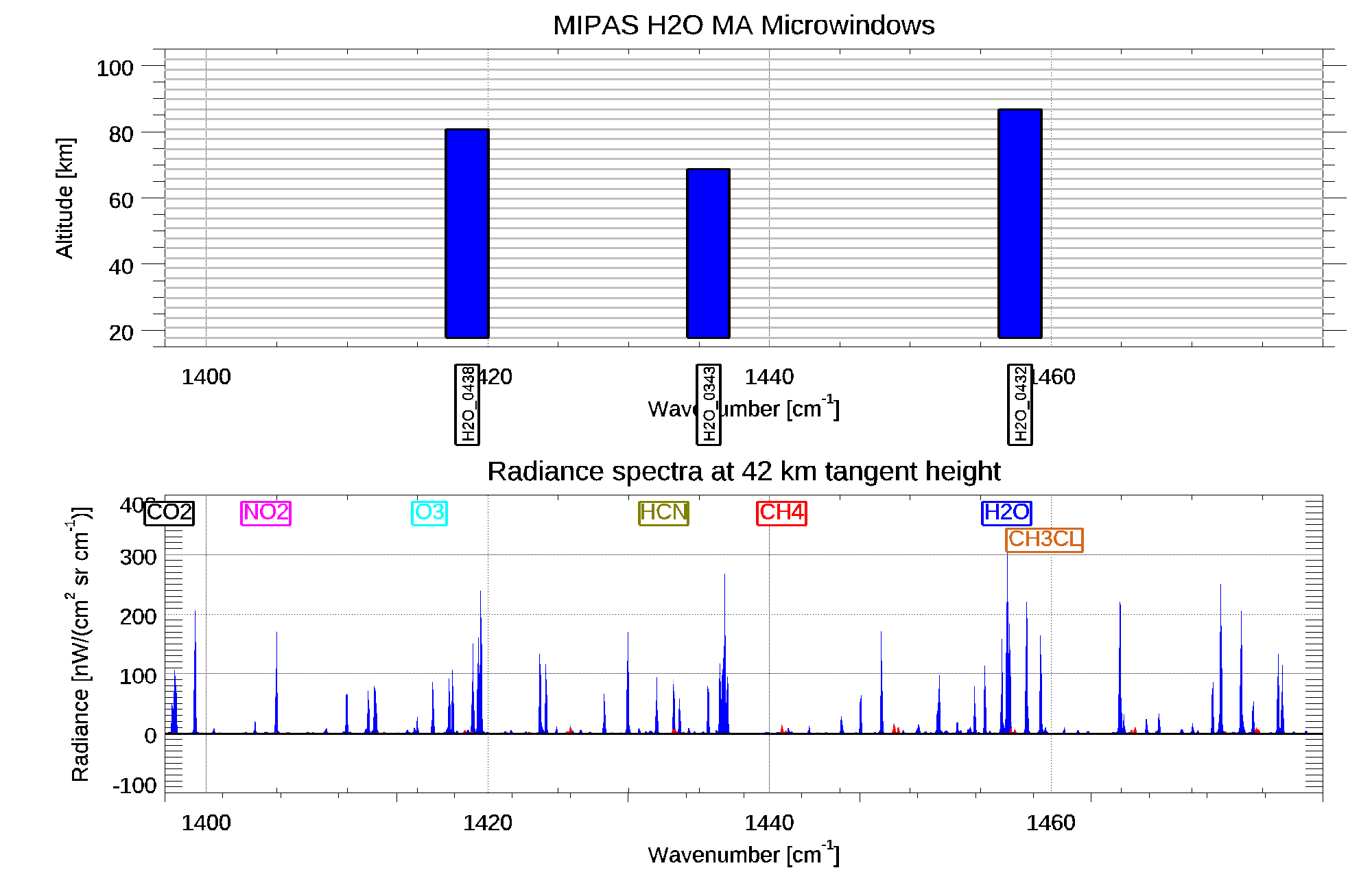

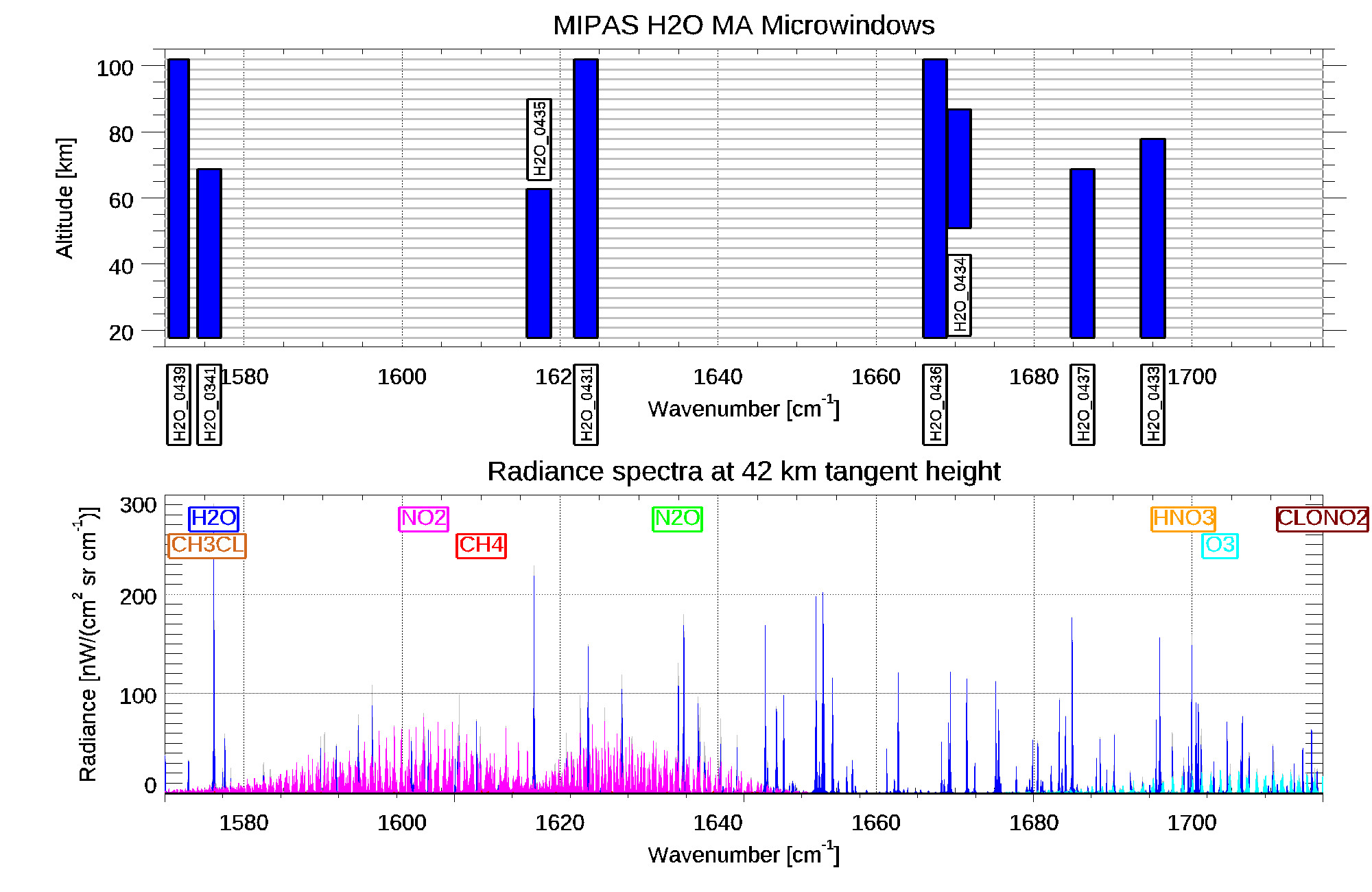

MA Mode

2005-2012 29 Sweeps from 18-102 km @0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

H2O_0341 1574.1250 1577.1250 18.0 69.0 H2O O2 CH4 NO2 NH3 CH3CL
H2O_0343 1434.1875 1437.1875 18.0 69.0 H2O CH4 O2 HCN O3 CH3CL
H2O_0431 1621.8125 1624.8125 18.0 102.0 H2O NO2 CH4 O2 NH3 N2O
H2O_0432 1456.3125 1459.3125 18.0 87.0 H2O CH4 O2 HCN O3
H2O_0433 1693.5625 1696.5625 18.0 78.0 H2O HNO3 O3 O2 CLONO2 CH4 NH3
H2O_0434 1669.0625 1672.0625 51.0 87.0 H2O O3
H2O_0435 1615.8750 1618.8750 18.0 63.0 H2O NO2 O2 NH3 CH4 N2O
H2O_0436 1666.0000 1669.0000 18.0 102.0 H2O O2 CH4 HNO3 O3 NH3
H2O_0437 1684.6875 1687.6875 18.0 69.0 H2O HNO3 O3 O2 CH4 CLONO2
H2O_0438 1417.0625 1420.0625 18.0 81.0 H2O CH4 O3 O2 HCN CO2 CH3CL NO2
H2O_0439 1570.5000 1573.0625 18.0 102.0 H2O O2 NO2 CH4 NH3
