MIPAS HCN Microwindows

updated 26MAR21

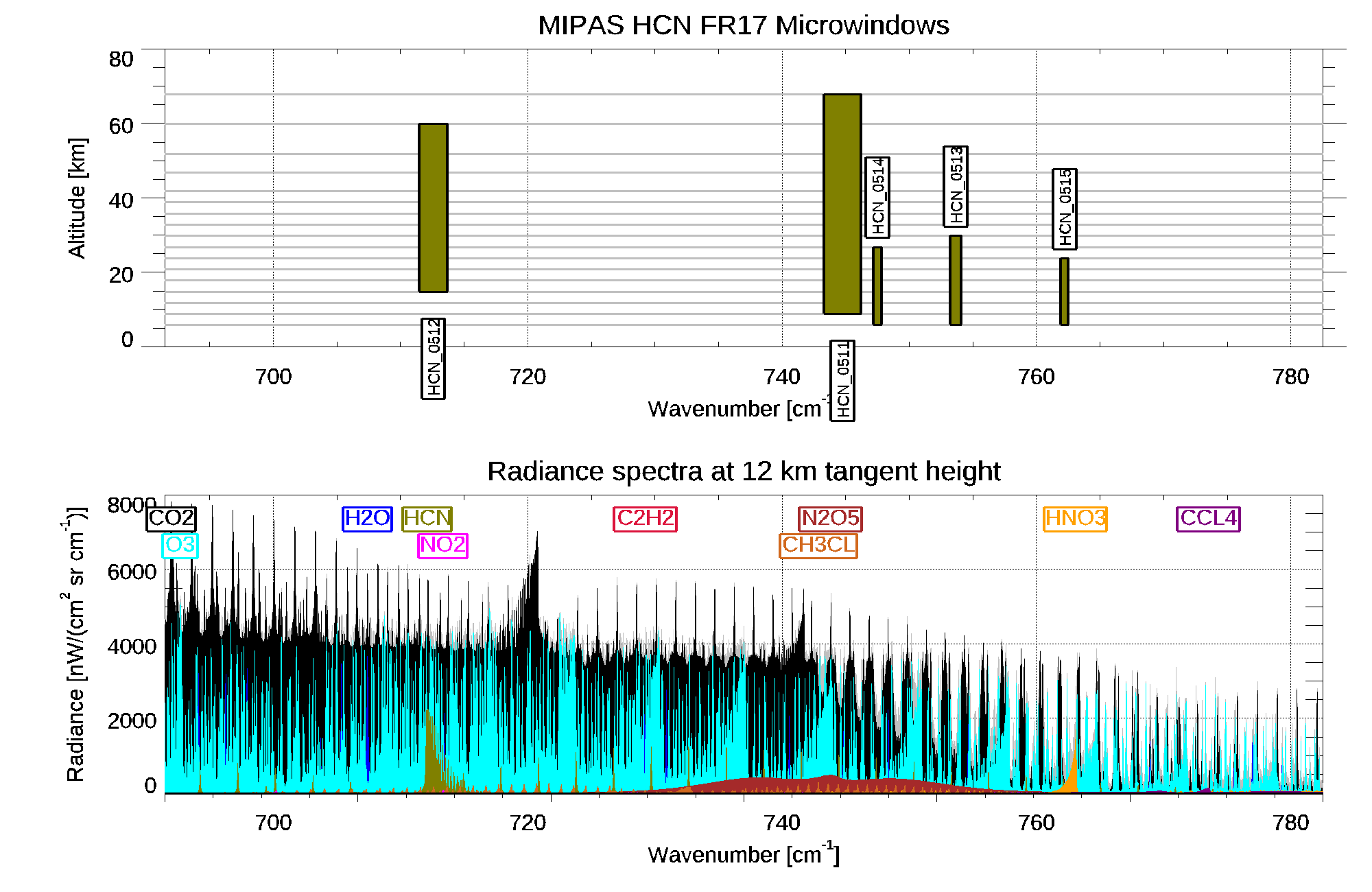

FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

HCN_0511 743.3000 746.2500 9.0 68.0 CO2 O3 H2O HCN N2O5 C2H2 CH3CL HNO3 NH3 NO2 COF2 PAN
HCN_0512 711.4750 713.7000 15.0 60.0 CO2 O3 H2O HCN NO2 CH3CL C2H2 N2O N2O5 H2O2 NH3
HCN_0513 753.2250 754.1250 6.0 30.0 H2O CO2 O3 HCN N2O5 HNO3 CH3CL NH3 C2H2 CCL4 COF2 CLONO2 C2H6 NO2 PAN
HCN_0514 747.1750 747.8500 6.0 27.0 H2O CO2 O3 HCN N2O5 C2H2 CH3CL HNO3 NO2 NH3 COF2 C2H6 PAN
HCN_0515 761.9250 762.5250 6.0 24.0 H2O CO2 O3 C2H2 HNO3 HCN CCL4 CLONO2 N2O5 COF2 NO2 CH3CL C2H6 NH3 PAN

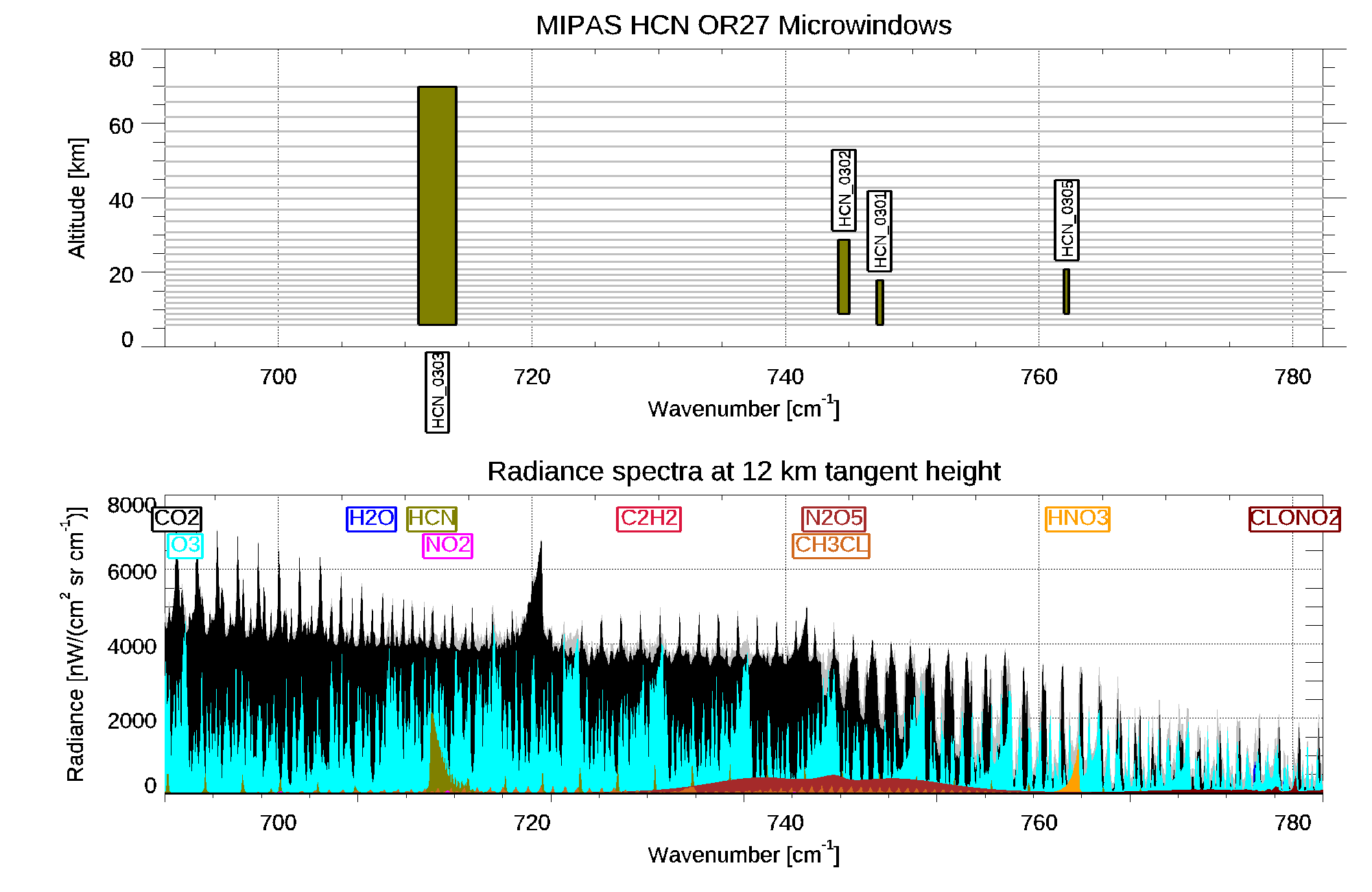

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

HCN_0301 747.1875 747.6875 6.0 18.0 H2O CO2 O3 HCN N2O5 CH3CL HNO3 C2H2 NH3 NO2 COF2 C2H6 PAN
HCN_0302 744.1875 745.0625 9.0 29.0 CO2 H2O O3 HCN N2O5 CH3CL HNO3 NO2 NH3 C2H2 COF2 PAN
HCN_0303 711.0625 714.0625 6.0 70.0 CO2 H2O HCN O3 C2H2 NO2 CH3CL N2O N2O5 PAN NH3 H2O2

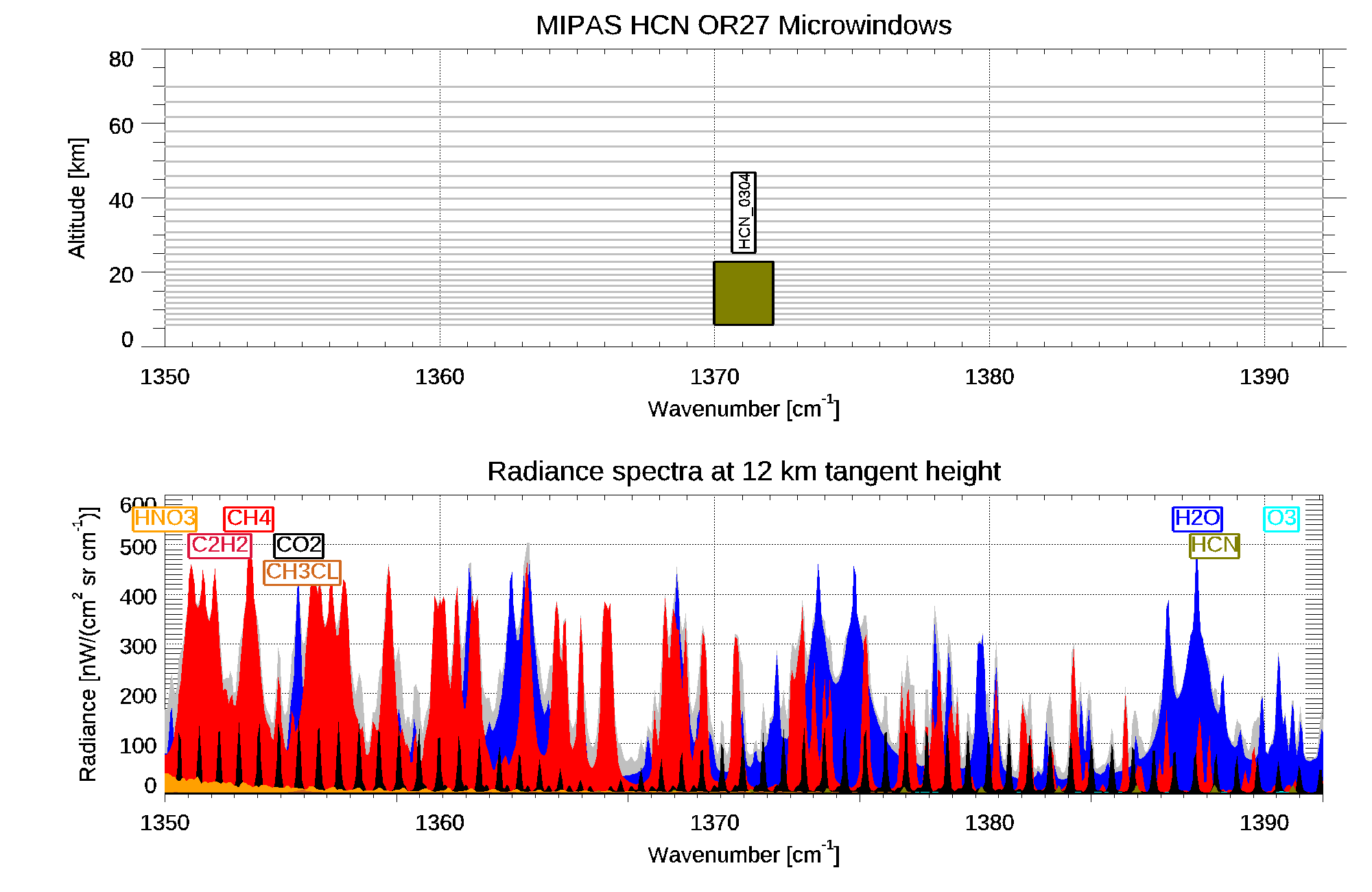

HCN_0304 1370.0000 1372.1250 6.0 23.0 H2O CH4 SO2 CO2 O2 C2H2 HCN HNO3 CH3CL O3 PAN N2O5 N2O F22 NO2
HCN_0305 762.0000 762.3750 9.0 21.0 H2O CO2 O3 HNO3 C2H2 HCN CLONO2 N2O5 CCL4 COF2 NO2 CH3CL NH3 C2H6 PAN
