MIPAS HDO Microwindows

updated 26MAR21

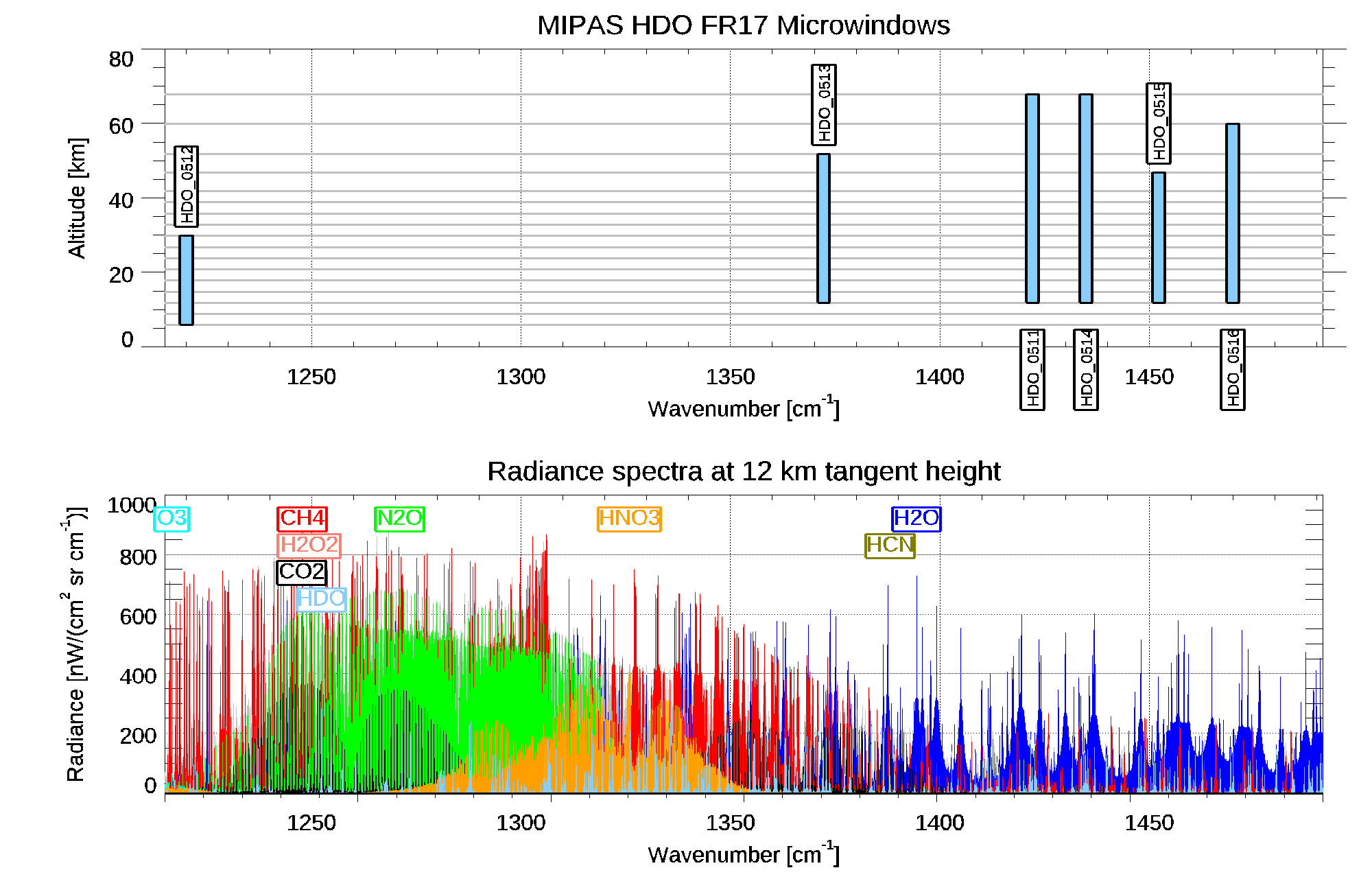

FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

HDO_0511 1420.6750 1423.6500 12.0 68.0 H2O CH4 O2 O3 HCN CH3CL CO2
HDO_0512 1218.6750 1221.6500 6.0 30.0 H2O CH4 N2O H2O2 O3 HNO3 CO2 HOCL COF2 SO2 F13 N2O5 F113 PAN
HDO_0513 1370.8750 1373.7500 12.0 52.0 H2O CH4 SO2 CO2 HNO3 O3 O2 N2O5 HCN CH3CL PAN C2H2 NO2
HDO_0514 1433.4250 1436.4250 12.0 68.0 H2O CH4 O2 HCN O3 CH3CL
HDO_0515 1450.7500 1453.7500 12.0 47.0 H2O CH4 O2 HCN O3 CH3CL
HDO_0516 1468.4250 1471.4250 12.0 60.0 H2O O2 CH4 HCN O3 NH3 CH3CL


OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

HDO_0301 1420.6875 1423.6875 7.5 58.0 H2O O2 CH4 O3 HCN CH3CL CO2 C2H4 NH3
HDO_0302 1218.8125 1221.8125 6.0 21.0 H2O CH4 N2O H2O2 O3 HNO3 CO2 HOCL COF2 F13 SO2 N2O5 F113 PAN
HDO_0303 1450.7500 1453.7500 6.0 40.0 H2O O2 CH4 HCN NH3 CH3CL O3 C2H4
HDO_0304 1468.3125 1471.3125 6.0 50.0 H2O O2 CH4 HCN NH3 CH3CL O3 C2H4
HDO_0305 1412.6250 1415.6250 6.0 40.0 H2O O2 CH4 O3 CO2 HCN CH3CL C2H4 N2O NH3
