MIPAS HNO3 Microwindows

updated 26MAR21


FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

HNO30511 885.0000 888.0000 6.0 68.0 H2O HNO3 NH3 F12 CO2 C2H4 C2H6 N2O5 F113 F114 OCS O3 NO2 PAN
HNO30512 877.8000 880.8000 6.0 60.0 H2O HNO3 F12 CO2 OCS C2H6 C2H4 NO2 N2O5 F113 O3 CLO F114 PAN
HNO30513 866.5000 869.5000 6.0 68.0 H2O HNO3 NH3 OCS F12 CO2 C2H6 O3 CLO F11 N2O5 C2H4 NO2 F113 PAN
HNO30514 869.5250 872.5250 6.0 68.0 H2O HNO3 NH3 OCS F12 CO2 C2H6 O3 CLO N2O5 C2H4 F11 F113 NO2 F114
HNO30515 761.0750 764.0750 6.0 52.0 H2O CO2 O3 HNO3 HCN C2H2 CCL4 CLONO2 NH3 N2O5 CH3CL NO2 COF2 C2H6 PAN
HNO30516 888.0250 891.0250 6.0 68.0 H2O HNO3 F12 NH3 CO2 C2H4 C2H6 F113 N2O5 F114 NO2 O3 N2O PAN
HNO30517 863.4750 866.4750 9.0 68.0 H2O HNO3 CO2 OCS F12 CLO O3 F11 C2H6 N2O5 COCL2 C2H4 PAN NO2 NH3
HNO30518 881.9750 884.9750 9.0 68.0 H2O HNO3 F12 CO2 N2O5 C2H4 OCS C2H6 O3 F113 NH3 F114 NO2 PAN CLO

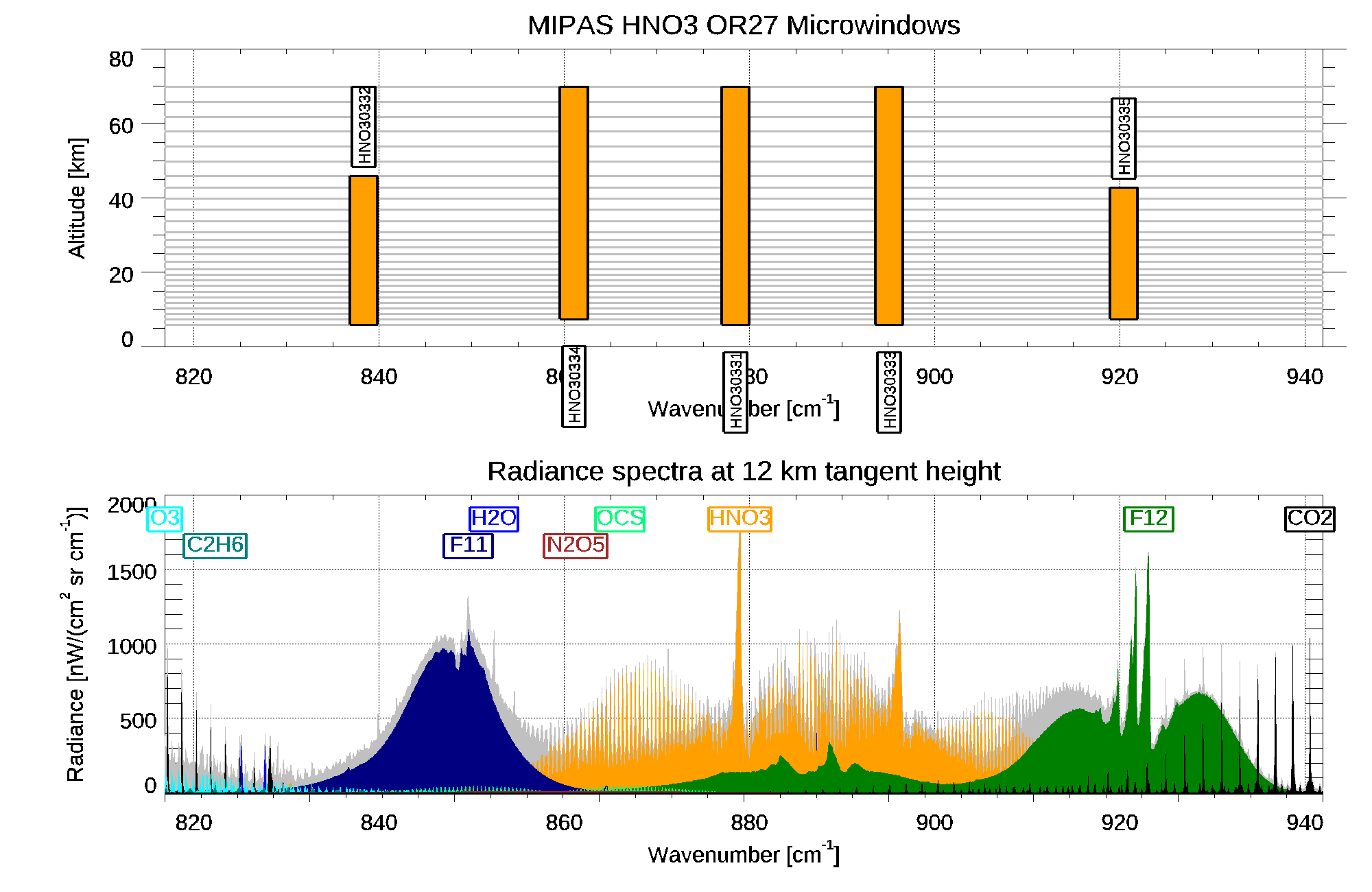

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

HNO30331 877.0000 880.0000 6.0 70.0 H2O HNO3 F12 CO2 N2O5 C2H6 OCS C2H4 F113 O3 F114 CLO NO2 PAN NH3
HNO30332 836.8750 839.8750 6.0 46.0 H2O F11 CO2 O3 C2H6 HNO3 OCS COCL2 F22 PAN F114 N2O5 CLO NH3 NO2
HNO30333 893.6250 896.6250 6.0 70.0 H2O HNO3 F12 CO2 C2H4 F113 C2H6 N2O5 F114 NH3 N2O PAN NO2 O3
HNO30334 859.5625 862.5625 7.5 70.0 H2O HNO3 F11 OCS CO2 F12 C2H6 O3 COCL2 N2O5 CLO NO2 PAN C2H4 NH3
HNO30335 918.9375 921.9375 7.5 43.0 H2O F12 CO2 HNO3 NH3 N2O PAN F114 F113 C2H4 O3


MA Mode

2005-2012 29 Sweeps from 18-102 km @0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

HNO30331 877.0000 880.0000 18.0 70.0 H2O HNO3 F12 CO2 N2O5 C2H6 OCS C2H4 F113 O3 F114 CLO NO2 PAN NH3
HNO30333 893.6250 896.6250 18.0 70.0 H2O HNO3 F12 CO2 C2H4 F113 C2H6 N2O5 F114 NH3 N2O PAN NO2 O3
HNO30334 859.5625 862.5625 18.0 70.0 H2O HNO3 F11 OCS CO2 F12 C2H6 O3 COCL2 N2O5 CLO NO2 PAN C2H4 NH3
HNO30421 887.0000 890.0000 18.0 102.0 HNO3 H2O F12 NH3 CO2 N2O5 NO2 O3 F113 F114
HNO30422 864.2500 867.2500 18.0 102.0 HNO3 CO2 H2O N2O5 CLO OCS F12 O3 F11 NO2 COCL2 C2H6
HNO30423 867.3125 870.3125 18.0 102.0 HNO3 NH3 N2O5 F12 OCS CLO O3 CO2 NO2 F11 C2H6
HNO30424 760.1250 763.1250 18.0 54.0 CO2 HNO3 O3 CLONO2 N2O5 HCN NO2 COF2 H2O CCL4 CH3CL C2H2 NH3
HNO30425 1324.2500 1327.2500 27.0 63.0 HNO3 CH4 N2O SO2 H2O N2O5 CO2 NO2 F22
HNO30426 883.9375 886.9375 18.0 102.0 HNO3 F12 CO2 N2O5 H2O O3 NO2 F113 F114 CLO
HNO30427 904.4375 907.4375 18.0 102.0 HNO3 F12 CO2 H2O F113 N2O NO2 C2H4 NH3
HNO30428 890.0625 893.0625 18.0 102.0 HNO3 NH3 F12 CO2 H2O N2O5 NO2 F113 O3 F114 C2H4
HNO30429 1315.9375 1318.9375 30.0 66.0 H2O HNO3 CH4 N2O N2O5 CLONO2 SO2 H2O2 NO2 CO2 F22
