MIPAS HOCL Microwindows

updated 26MAR21

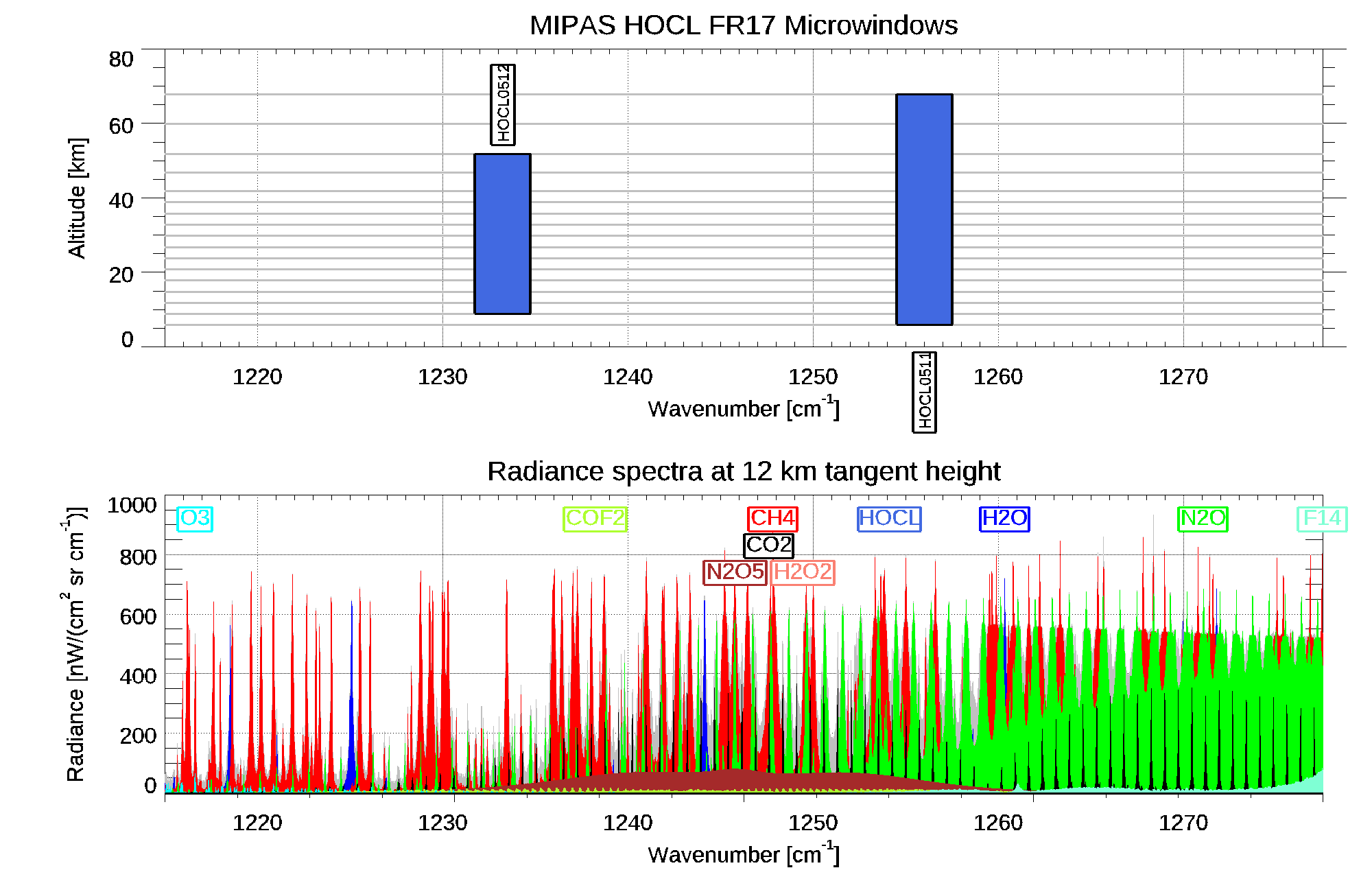

FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

HOCL0511 1254.5250 1257.5250 6.0 68.0 H2O N2O CH4 CO2 H2O2 N2O5 HOCL COF2 F14 HNO3 O3 F115 PAN F114
HOCL0512 1231.7500 1234.7500 9.0 52.0 CH4 H2O N2O H2O2 CO2 HOCL N2O5 COF2 O3 HNO3 F115 SO2 F114 PAN

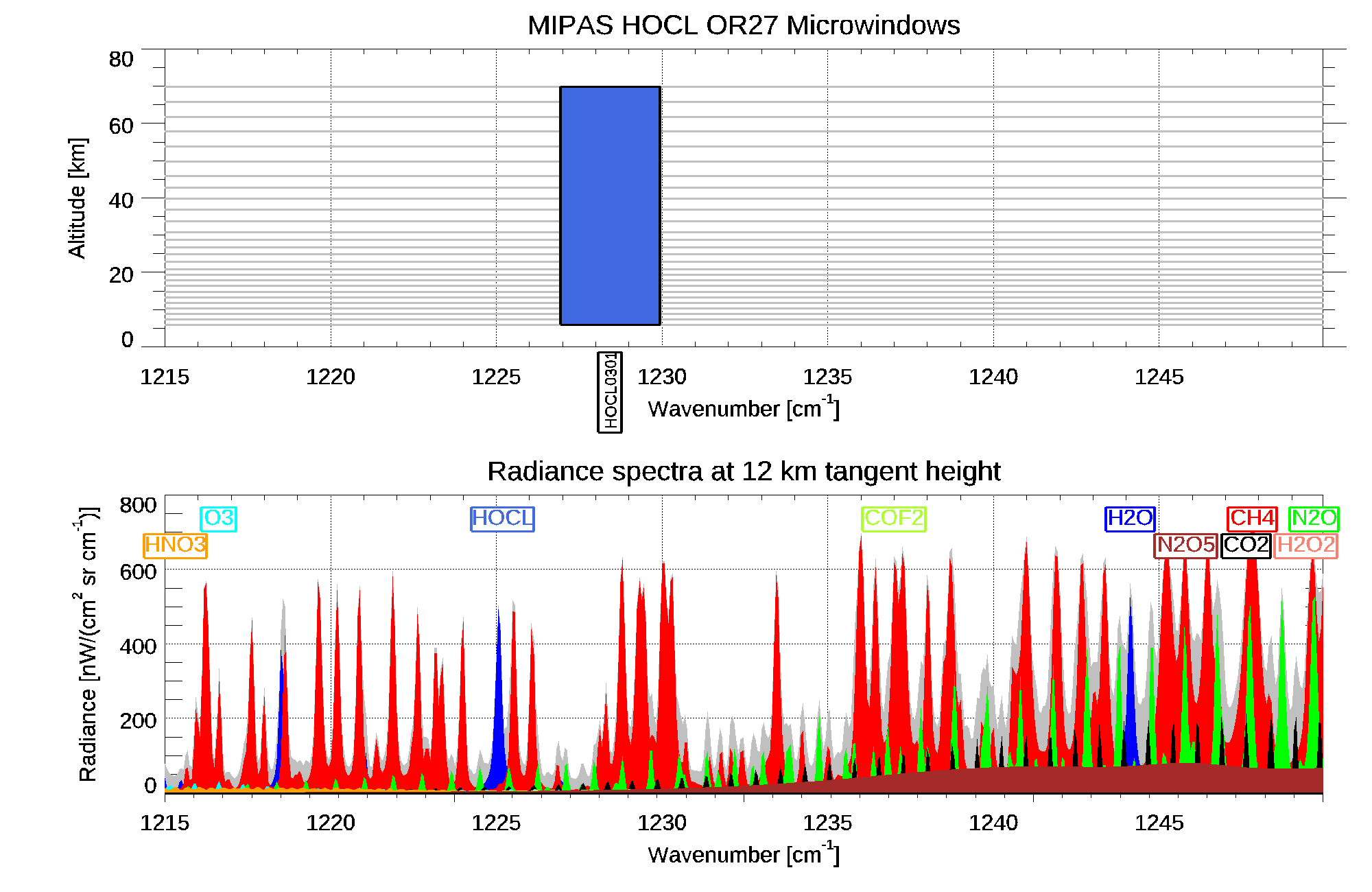

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

HOCL0301 1226.9375 1229.9375 6.0 70.0 H2O CH4 N2O H2O2 CO2 O3 HOCL COF2 HNO3 N2O5 SO2 F13 F115 F114 F113
