MIPAS N2O Microwindows

updated 26MAR21

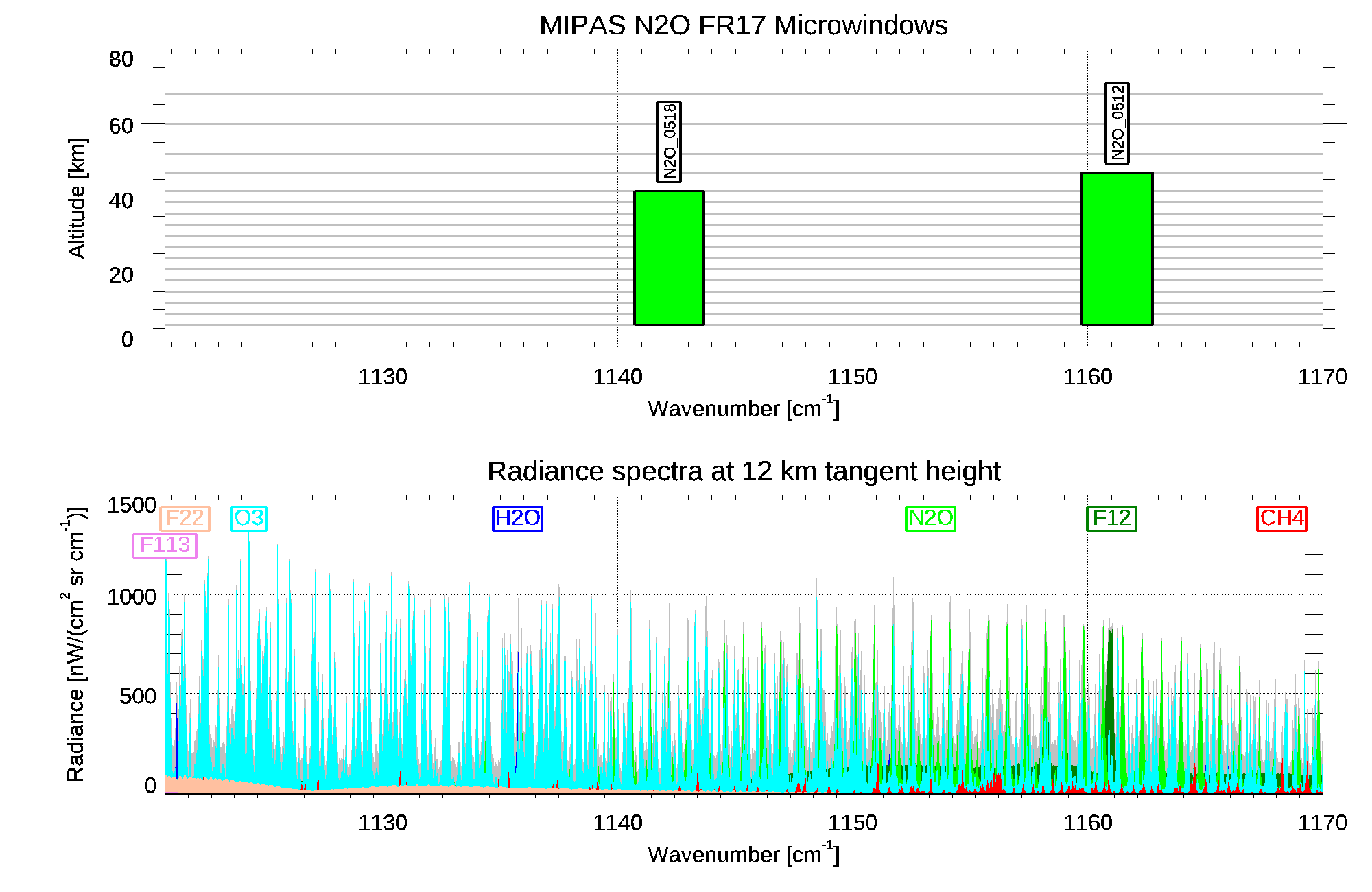

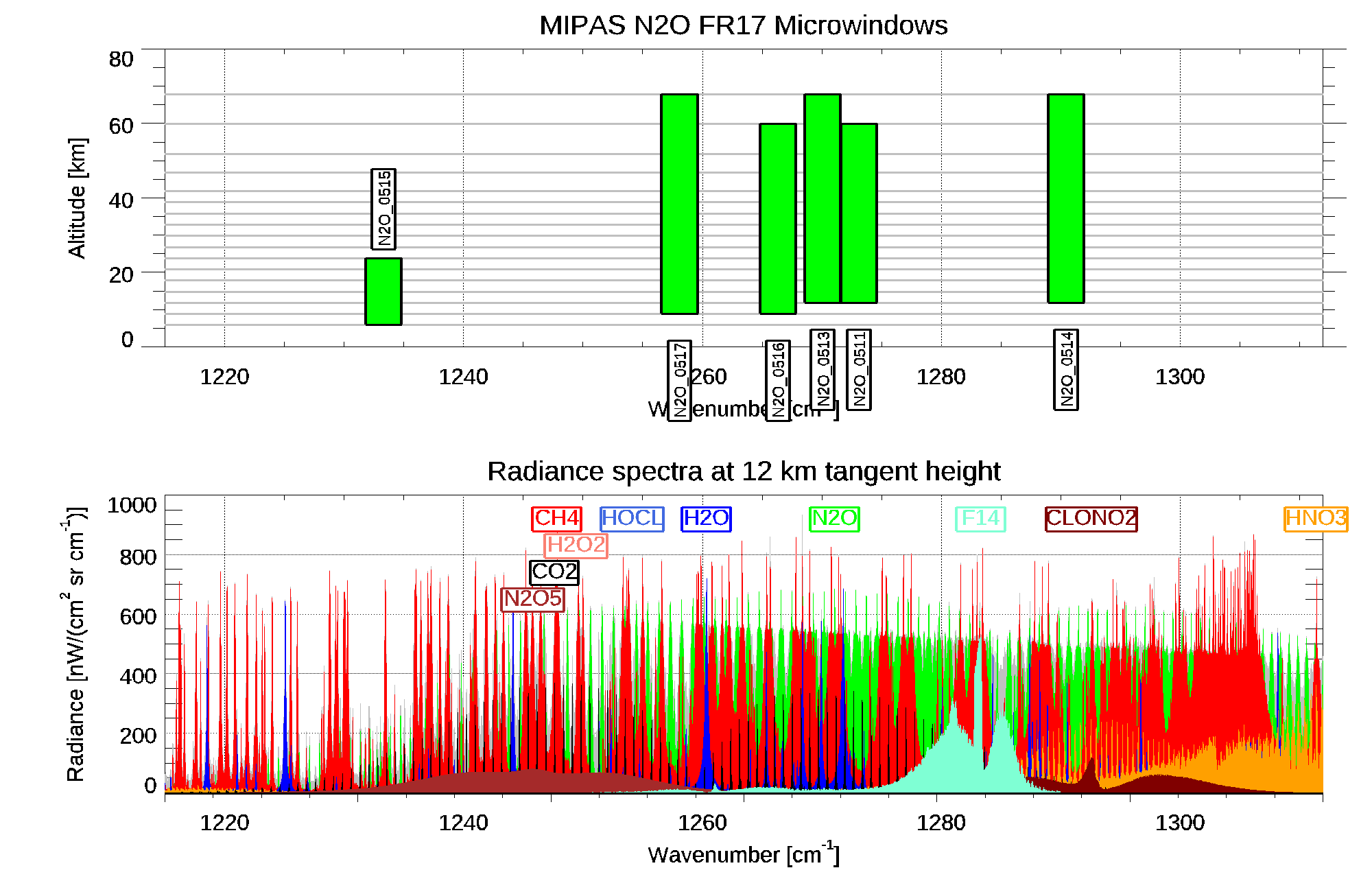

FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

N2O_0511 1271.6250 1274.6250 12.0 60.0 N2O H2O CH4 H2O2 CO2 HNO3 CLONO2 F14 HOCL COF2 N2O5 PAN F114 NO2
N2O_0512 1159.7500 1162.7500 6.0 47.0 H2O F12 N2O O3 CH4 SO2 PAN NH3 F22 F113 HNO3 F114
N2O_0513 1268.6000 1271.6000 12.0 68.0 CH4 N2O H2O H2O2 CO2 HNO3 HOCL F14 CLONO2 COF2 N2O5 C2H2 F114 PAN O3
N2O_0514 1289.0000 1291.9500 12.0 68.0 N2O CH4 HNO3 H2O H2O2 CLONO2 CO2 F14 PAN N2O5 C2H2 NO2 F22 HOCL
N2O_0515 1231.8500 1234.8250 6.0 24.0 H2O CH4 N2O H2O2 CO2 N2O5 HOCL O3 COF2 HNO3 F115 SO2 F114 F13 PAN
N2O_0516 1264.8250 1267.8250 9.0 60.0 N2O H2O CH4 H2O2 CO2 HOCL HNO3 F14 COF2 N2O5 CLONO2 PAN O3 F114
N2O_0517 1256.6000 1259.6000 9.0 68.0 N2O H2O CH4 H2O2 CO2 N2O5 HOCL COF2 F14 HNO3 O3 C2H2 PAN F115
N2O_0518 1140.7250 1143.6500 6.0 42.0 H2O N2O O3 SO2 NH3 CH4 F12 F22 PAN F114 F115


OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

N2O_0331 1271.6250 1274.6250 15.0 58.0 N2O CH4 H2O H2O2 CO2 HNO3 CLONO2 F14 HOCL N2O5 COF2 F114 NO2
N2O_0332 1230.3750 1233.3125 6.0 21.0 H2O CH4 N2O H2O2 CO2 N2O5 COF2 HOCL O3 HNO3 F115 SO2 F114 NH3 F13
N2O_0333 1233.5625 1235.8125 7.5 34.0 H2O CH4 N2O H2O2 CO2 N2O5 COF2 O3 HOCL HNO3 F115 SO2 F114 PAN F13
N2O_0334 1276.3125 1279.3125 15.0 58.0 N2O CH4 H2O2 HNO3 F14 CLONO2 CO2 H2O HOCL N2O5 COF2 NO2 F114 PAN
N2O_0335 1256.6875 1259.5625 9.0 27.0 CH4 H2O N2O H2O2 CO2 N2O5 COF2 HOCL F14 HNO3 O3 PAN C2H2 F115 F114


MA Mode

2005-2012 29 Sweeps from 18-102 km @0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

N2O_0331 1271.6250 1274.6250 18.0 58.0 N2O CH4 H2O H2O2 CO2 HNO3 CLONO2 F14 HOCL N2O5 COF2 F114 NO2
N2O_0334 1276.3125 1279.3125 18.0 58.0 N2O CH4 H2O2 HNO3 F14 CLONO2 CO2 H2O HOCL N2O5 COF2 NO2 F114 PAN
N2O_0421 1261.6875 1264.6875 18.0 102.0 CH4 N2O CO2 H2O H2O2 HOCL N2O5 HNO3 COF2 F14 CLONO2 O3 NO2
N2O_0422 1258.5000 1261.5000 18.0 63.0 N2O H2O CH4 H2O2 N2O5 COF2 CO2 HOCL HNO3 F14 CLONO2 O3 NO2
N2O_0423 1264.7500 1267.7500 18.0 57.0 N2O CH4 H2O CO2 H2O2 HNO3 HOCL N2O5 COF2 CLONO2 F14 O3 NO2
N2O_0424 1288.8125 1291.8125 18.0 102.0 CH4 N2O HNO3 CLONO2 H2O H2O2 CO2 N2O5 F14 NO2 F22 PAN
N2O_0425 1268.5625 1271.5625 18.0 60.0 N2O H2O CH4 CO2 HNO3 H2O2 CLONO2 HOCL F14 N2O5 COF2 NO2 O3 F114
N2O_0426 1280.0000 1282.8750 18.0 102.0 CH4 N2O F14 HNO3 CLONO2 H2O CO2 H2O2 N2O5 COF2 NO2
N2O_0427 1283.4375 1286.4375 18.0 102.0 CH4 N2O HNO3 CLONO2 H2O F14 H2O2 CO2 N2O5 NO2 COF2
