MIPAS N2O5 Microwindows

updated 26MAR21


FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

N2O50511 1236.0750 1239.0750 6.0 52.0 H2O CH4 N2O CO2 H2O2 N2O5 COF2 O3 HOCL F115 HNO3 SO2 F114 PAN
N2O50512 1225.7500 1228.7500 15.0 52.0 CH4 O3 N2O HOCL H2O2 COF2 CO2 HNO3 N2O5 H2O SO2
N2O50513 1244.6750 1247.6500 15.0 52.0 CH4 H2O2 CO2 N2O N2O5 COF2 HOCL H2O O3 HNO3 F115
N2O50514 1363.2750 1366.2750 18.0 52.0 CH4 H2O SO2 CO2 HNO3 N2O5 O3 HCN CH3CL O2
N2O50515 1220.9500 1223.9500 15.0 52.0 CH4 N2O O3 H2O2 HNO3 H2O HOCL COF2 CO2 N2O5 SO2 F13 F113
N2O50516 1239.1000 1242.1000 15.0 52.0 CH4 N2O H2O2 H2O N2O5 CO2 COF2 HOCL O3 HNO3 F115 SO2
N2O50517 1230.3750 1233.3750 15.0 52.0 N2O H2O2 CH4 CO2 N2O5 O3 COF2 HOCL HNO3 H2O SO2 F115

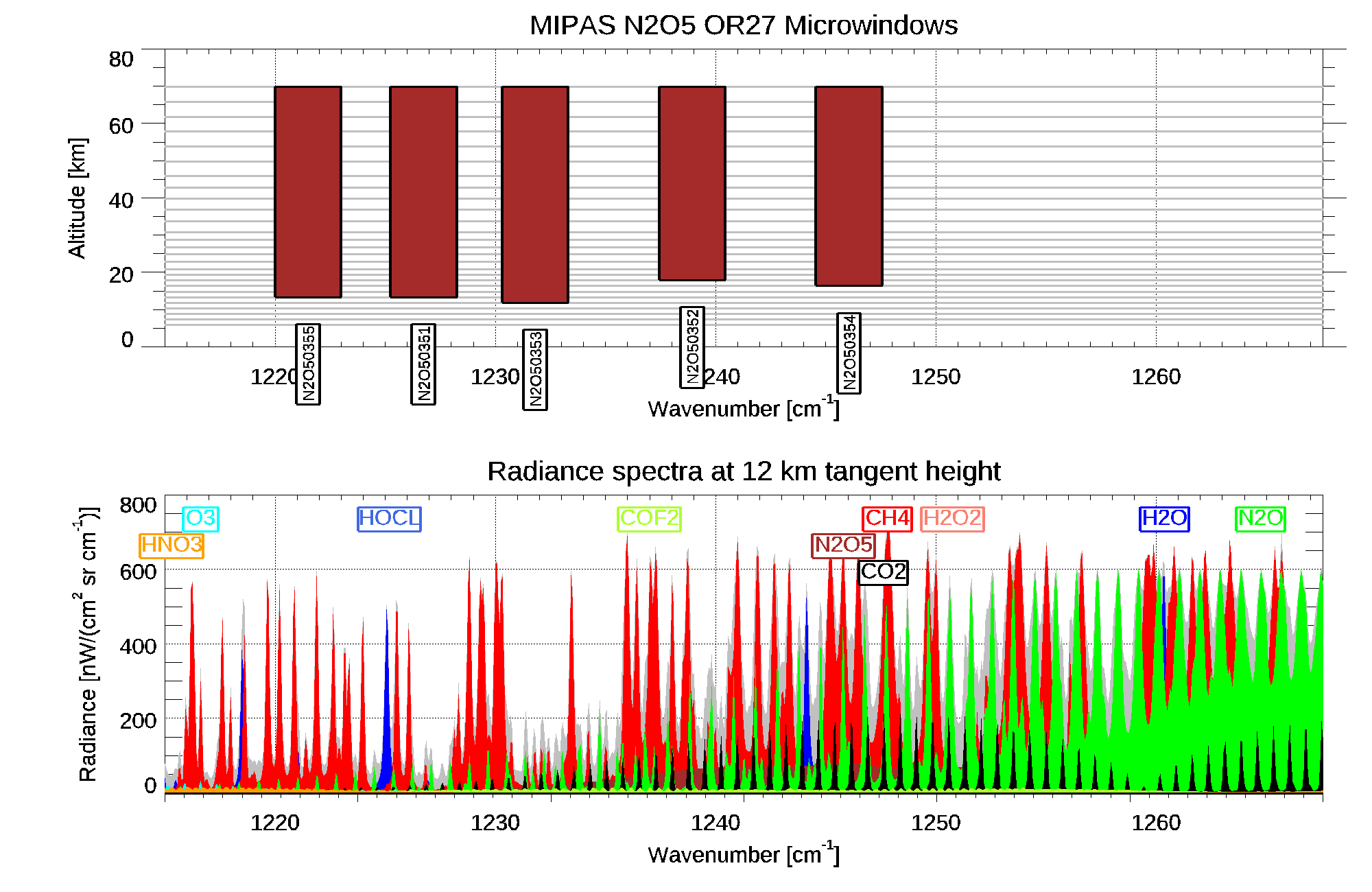

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

N2O50351 1225.2500 1228.2500 13.5 70.0 H2O CH4 H2O2 N2O O3 HOCL COF2 HNO3 CO2 N2O5 SO2 F13 F113 F114 F115
N2O50352 1237.4375 1240.4375 18.0 70.0 CH4 N2O5 N2O CO2 H2O2 COF2 H2O HOCL O3 HNO3 F115 SO2
N2O50353 1230.3125 1233.3125 12.0 70.0 H2O2 CH4 N2O5 COF2 N2O HOCL CO2 H2O O3 HNO3 SO2 F115 F114 F13
N2O50354 1244.5625 1247.5625 16.5 70.0 N2O5 N2O CO2 CH4 COF2 H2O2 HOCL H2O O3 HNO3 F115
N2O50355 1220.0000 1223.0000 13.5 70.0 CH4 H2O2 O3 HNO3 N2O HOCL COF2 H2O N2O5 CO2 SO2 F13 F113


MA Mode

2005-2012 29 Sweeps from 18-102 km @0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

N2O50351 1225.2500 1228.2500 18.0 69.0 H2O CH4 H2O2 N2O O3 HOCL COF2 HNO3 CO2 N2O5 SO2 F13 F113 F114 F115
N2O50352 1237.4375 1240.4375 18.0 69.0 CH4 N2O5 N2O CO2 H2O2 COF2 H2O HOCL O3 HNO3 F115 SO2
N2O50353 1230.3125 1233.3125 18.0 69.0 H2O2 CH4 N2O5 COF2 N2O HOCL CO2 H2O O3 HNO3 SO2 F115 F114 F13
N2O50354 1244.5625 1247.5625 18.0 69.0 N2O5 N2O CO2 CH4 COF2 H2O2 HOCL H2O O3 HNO3 F115
N2O50355 1220.0000 1223.0000 18.0 69.0 CH4 H2O2 O3 HNO3 N2O HOCL COF2 H2O N2O5 CO2 SO2 F13 F113
