MIPAS NO2 Microwindows

updated 26MAR21

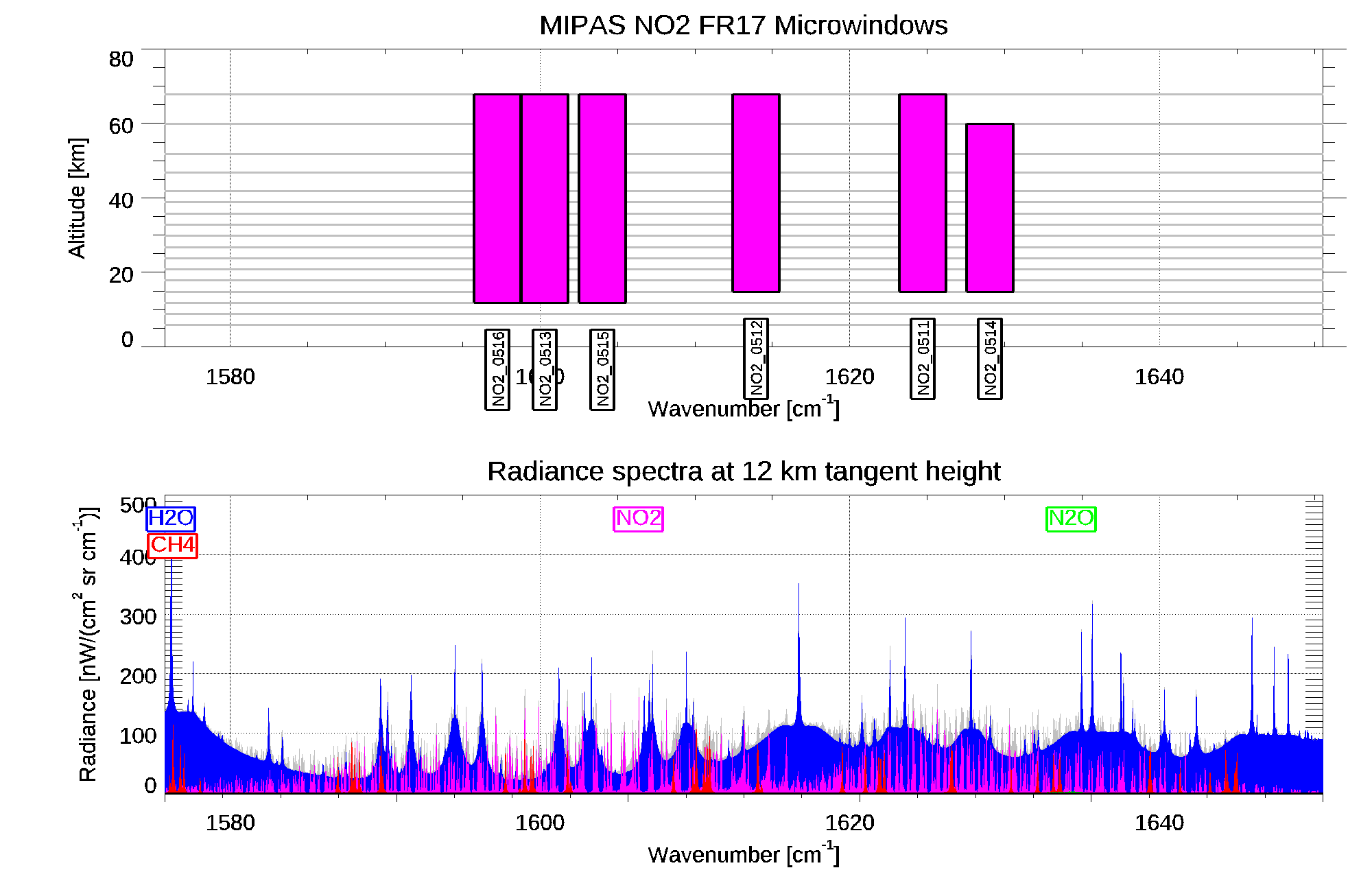

FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

NO2_0511 1623.2250 1626.2250 15.0 68.0 H2O NO2 O2 NH3 CH4 N2O
NO2_0512 1612.4500 1615.4500 15.0 68.0 NO2 H2O CH4 O2 NH3 N2O
NO2_0513 1598.8000 1601.8000 12.0 68.0 H2O NO2 O2 CH4 NH3 N2O
NO2_0514 1627.5500 1630.5500 15.0 60.0 H2O NO2 O2 CH4 NH3 N2O
NO2_0515 1602.5250 1605.5250 12.0 68.0 H2O NO2 O2 NH3 CH4 N2O
NO2_0516 1595.7750 1598.7750 12.0 68.0 H2O NO2 O2 CH4 NH3 N2O


OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

NO2_0341 1604.4375 1607.4375 6.0 70.0 H2O O2 NO2 NH3 CH4 N2O PAN
NO2_0342 1626.0000 1629.0000 15.0 70.0 H2O NO2 CH4 O2 NH3 N2O O3
NO2_0343 1612.8125 1615.8125 6.0 70.0 O2 H2O NO2 CH4 NH3 N2O PAN CH3CL
NO2_0344 1622.9375 1625.9375 25.0 70.0 H2O NO2 O2 N2O
NO2_0345 1570.5000 1573.5000 15.0 27.0 H2O O2 NO2 NH3 CH4 CH3CL

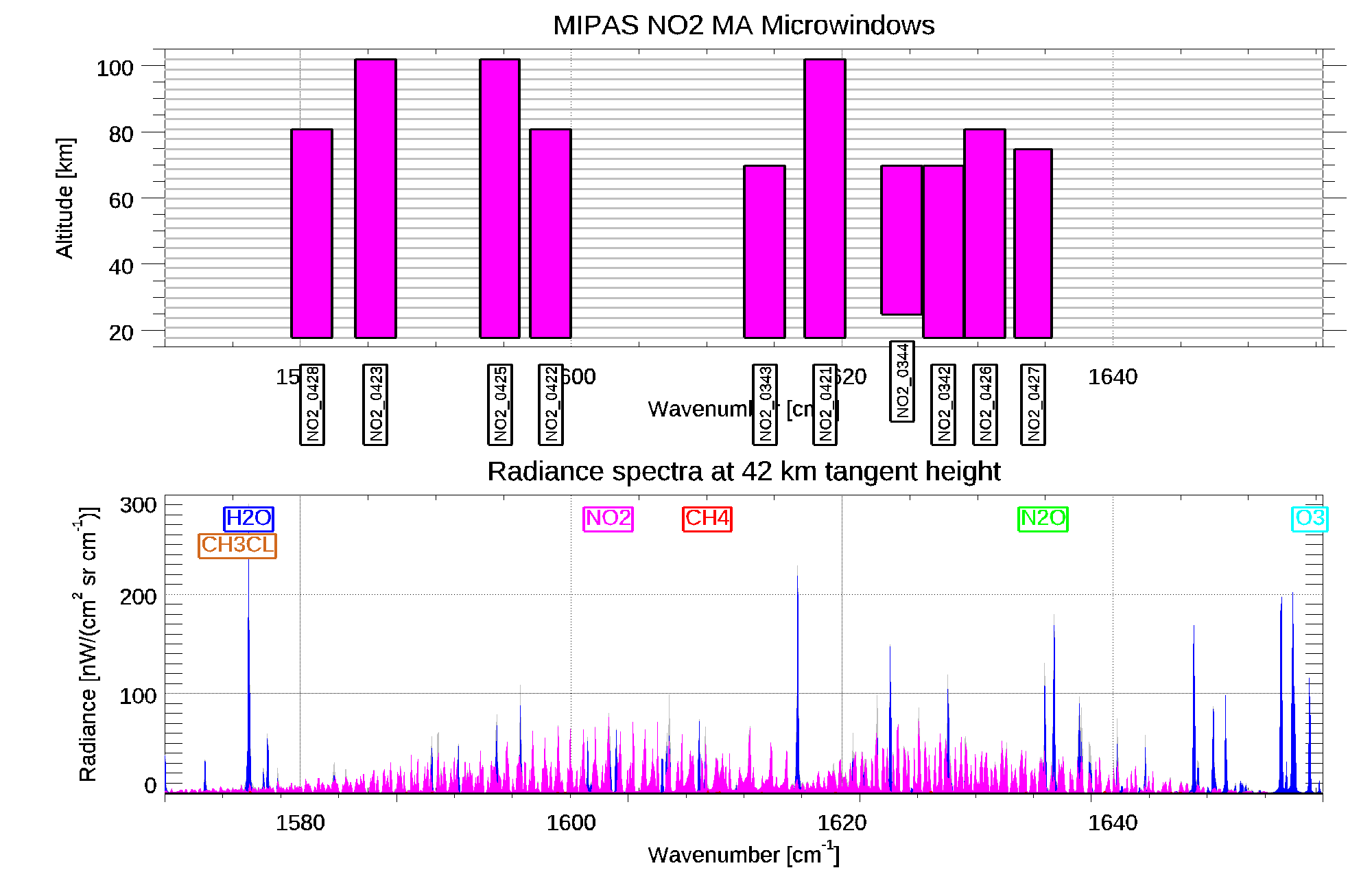

MA Mode

2005-2012 29 Sweeps from 18-102 km @0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

NO2_0342 1626.0000 1629.0000 18.0 70.0 H2O NO2 CH4 O2 NH3 N2O O3
NO2_0343 1612.8125 1615.8125 18.0 70.0 O2 H2O NO2 CH4 NH3 N2O PAN CH3CL
NO2_0344 1622.9375 1625.9375 25.0 70.0 H2O NO2 O2 N2O
NO2_0421 1617.2500 1620.2500 18.0 102.0 NO2 H2O CH4 O2 N2O NH3
NO2_0422 1597.0000 1600.0000 18.0 81.0 NO2 O2 CH4 H2O NH3
NO2_0426 1629.0625 1632.0625 18.0 81.0 NO2 H2O O2 CH4 N2O NH3 O3
NO2_0427 1632.7500 1635.5000 18.0 75.0 H2O NO2 CH4 O2 N2O NH3 O3
NO2_0423 1584.0625 1587.0625 18.0 102.0 NO2 O2 CH4 H2O NH3
NO2_0428 1579.3750 1582.3750 18.0 81.0 NO2 O2 H2O CH4 NH3
NO2_0425 1593.3125 1596.1875 18.0 102.0 H2O NO2 O2 NH3 CH4
