MIPAS O3 Microwindows

updated 26MAR21


FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

O3__0511 763.6000 766.6000 6.0 60.0 H2O CO2 O3 C2H2 HCN CLONO2 CCL4 HNO3 NH3 N2O5 NO2 COF2 CH3CL C2H6 PAN
O3__0512 1043.8500 1046.8500 6.0 68.0 O3 H2O CO2 OCS C2H4 NH3 F113 F114 N2O PAN CH3CL CH4
O3__0513 1123.8500 1126.8500 6.0 68.0 H2O O3 N2O SO2 F22 F12 CH4 NH3 F113 F114 PAN F115 F13
O3__0514 773.2500 776.2500 9.0 60.0 O3 H2O CO2 C2H2 CLONO2 COF2 HNO3 CCL4 NO2 N2O5 PAN HCN C2H6 NH3 F22
O3__0515 736.0500 739.0500 12.0 60.0 CO2 O3 N2O5 H2O HNO3 HCN CH3CL NO2 NH3 C2H2 COF2
O3__0516 756.5250 759.5250 6.0 68.0 H2O CO2 O3 HCN C2H2 N2O5 NH3 CH3CL HNO3 CCL4 NO2 CLONO2 COF2 C2H6 PAN
O3__0517 1032.9000 1035.9000 30.0 68.0 O3 CO2
O3__0518 749.9000 752.9000 9.0 39.0 CO2 O3 H2O HCN N2O5 C2H2 HNO3 CH3CL NO2 COF2 CCL4 CLONO2 NH3 PAN C2H6

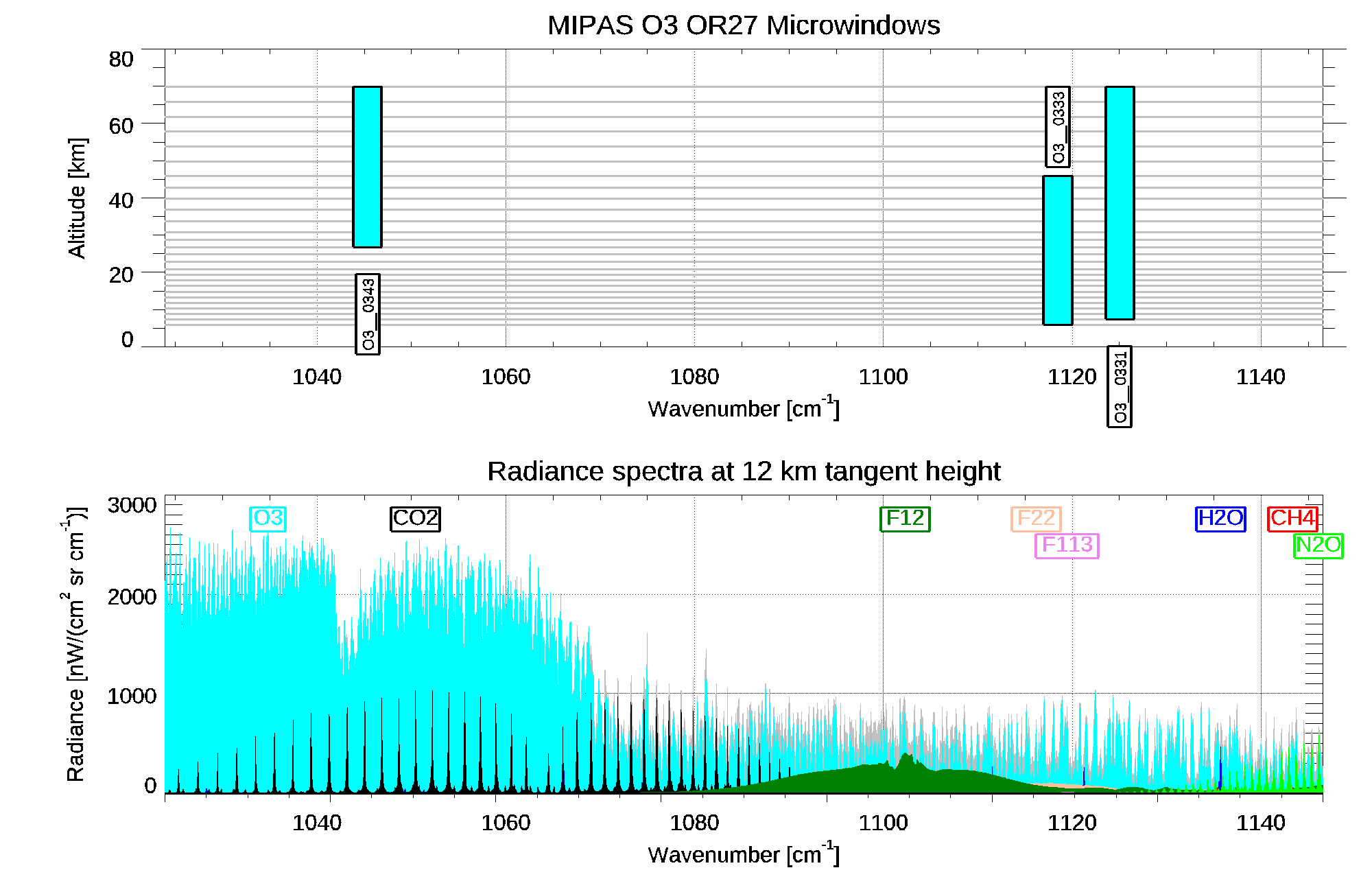

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

O3__0331 1123.5625 1126.5625 7.5 70.0 O3 H2O F22 CH4 SO2 F12 N2O F113 F114 NH3 PAN F115 F13
O3__0343 1043.8750 1046.8750 27.0 70.0 O3 CO2 NH3
O3__0333 1117.0000 1120.0000 6.0 46.0 H2O O3 F22 F12 SO2 CH4 NH3 F113 N2O F13 F114 F115 PAN C2H4
O3__0334 729.2500 732.2500 15.0 46.0 CO2 O3 H2O HCN N2O5 C2H2 CH3CL HNO3 NO2 H2O2 N2O NH3
O3__0335 756.6250 759.6250 7.5 37.0 CO2 H2O O3 C2H2 N2O5 HCN HNO3 CH3CL CCL4 CLONO2 NH3 NO2 COF2 C2H6 PAN

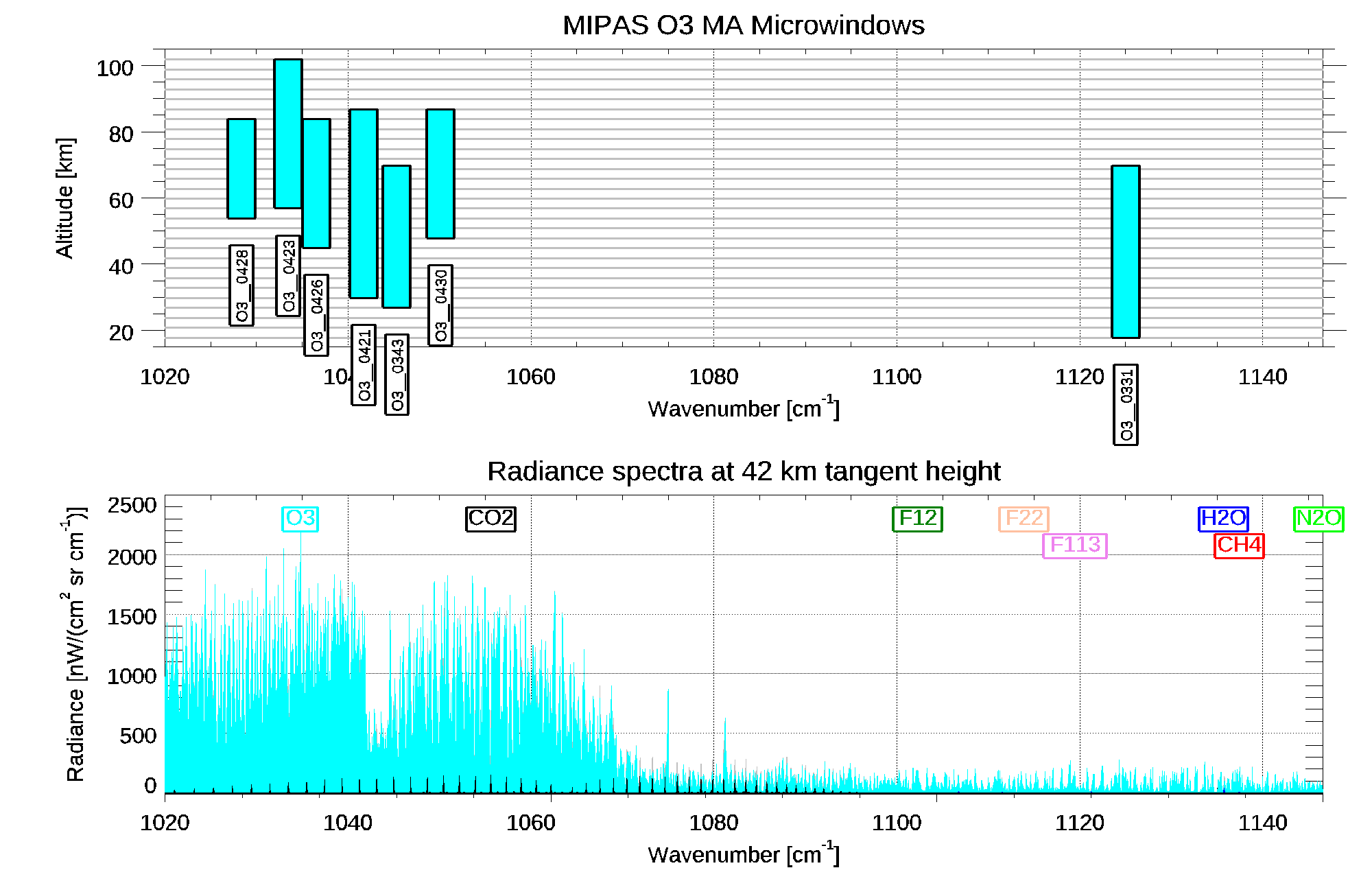

MA Mode

2005-2012 29 Sweeps from 18-102 km @0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

O3__0331 1123.5625 1126.5625 18.0 70.0 O3 H2O F22 CH4 SO2 F12 N2O F113 F114 NH3 PAN F115 F13
O3__0343 1043.8750 1046.8750 27.0 70.0 O3 CO2 NH3
O3__0334 729.2500 732.2500 18.0 46.0 CO2 O3 H2O HCN N2O5 C2H2 CH3CL HNO3 NO2 H2O2 N2O NH3
O3__0335 756.6250 759.6250 18.0 37.0 CO2 H2O O3 C2H2 N2O5 HCN HNO3 CH3CL CCL4 CLONO2 NH3 NO2 COF2 C2H6 PAN
O3__0421 1040.2500 1043.2500 30.0 87.0 O3 CO2 H2O
O3__0422 760.0000 762.9375 18.0 102.0 CO2 O3 HNO3 CLONO2 N2O5 HCN COF2 NO2 H2O CCL4 CH3CL NH3 C2H2
O3__0423 1032.0000 1035.0000 57.0 102.0 O3 CO2
O3__0424 736.4375 739.4375 18.0 57.0 CO2 O3 N2O5 HCN HNO3 CH3CL NO2 H2O COF2 C2H2 NH3
O3__0425 716.6250 719.5625 18.0 72.0 CO2 O3 HCN H2O N2O5 CH3CL NO2 N2O C2H2 H2O2
O3__0426 1035.0625 1038.0625 45.0 84.0 O3 CO2
O3__0427 750.1875 753.1875 18.0 39.0 CO2 O3 N2O5 H2O HNO3 HCN CH3CL NO2 COF2 CLONO2 C2H2 CCL4
O3__0428 1026.8750 1029.8750 54.0 84.0 O3 CO2 H2O
O3__0429 753.5625 756.5625 18.0 99.0 CO2 O3 N2O5 H2O HNO3 HCN CLONO2 COF2 CH3CL NO2 CCL4 NH3
O3__0430 1048.6250 1051.6250 48.0 87.0 O3 CO2 H2O
