MIPAS OCS Microwindows

updated 26MAR21

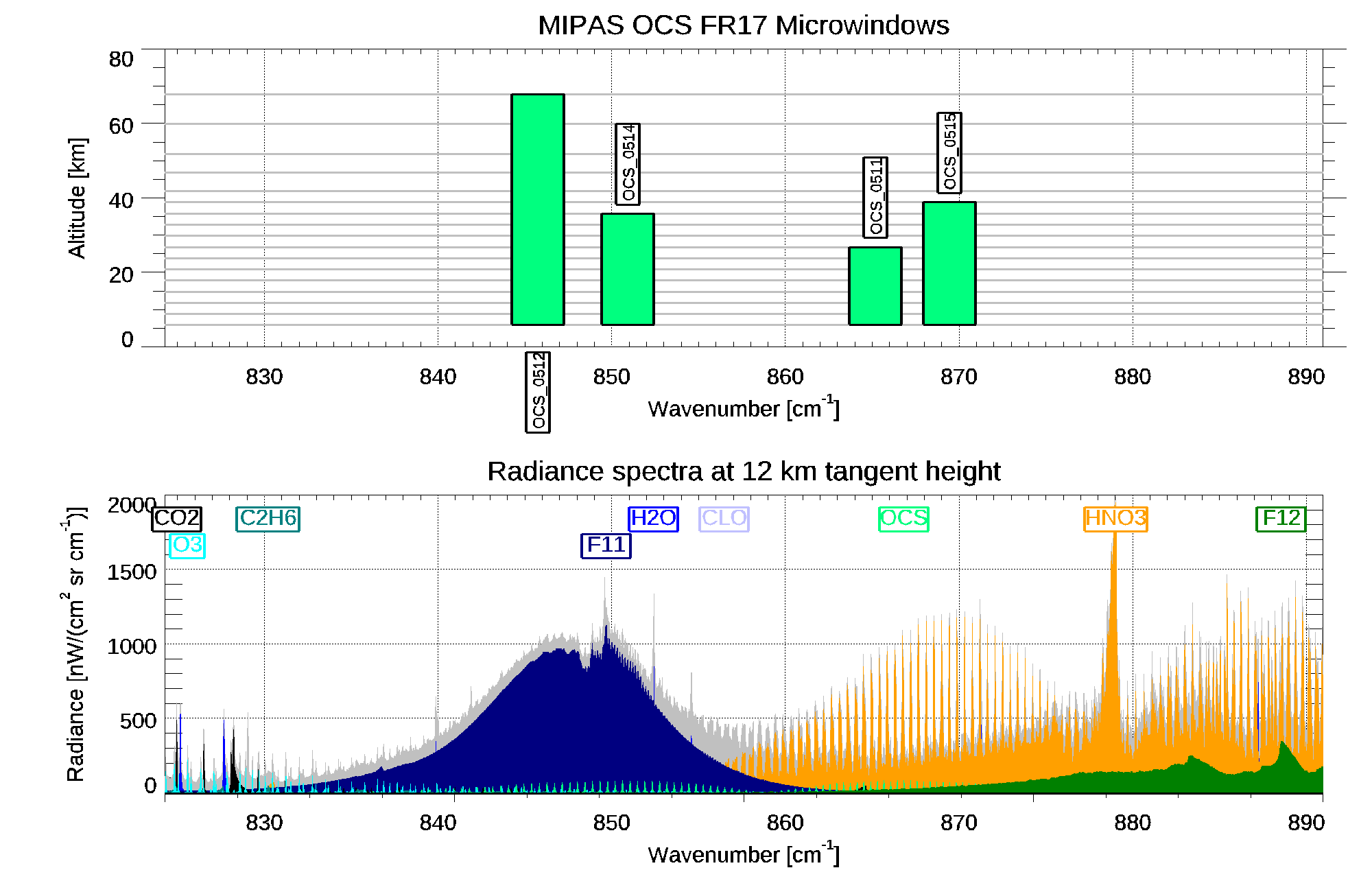

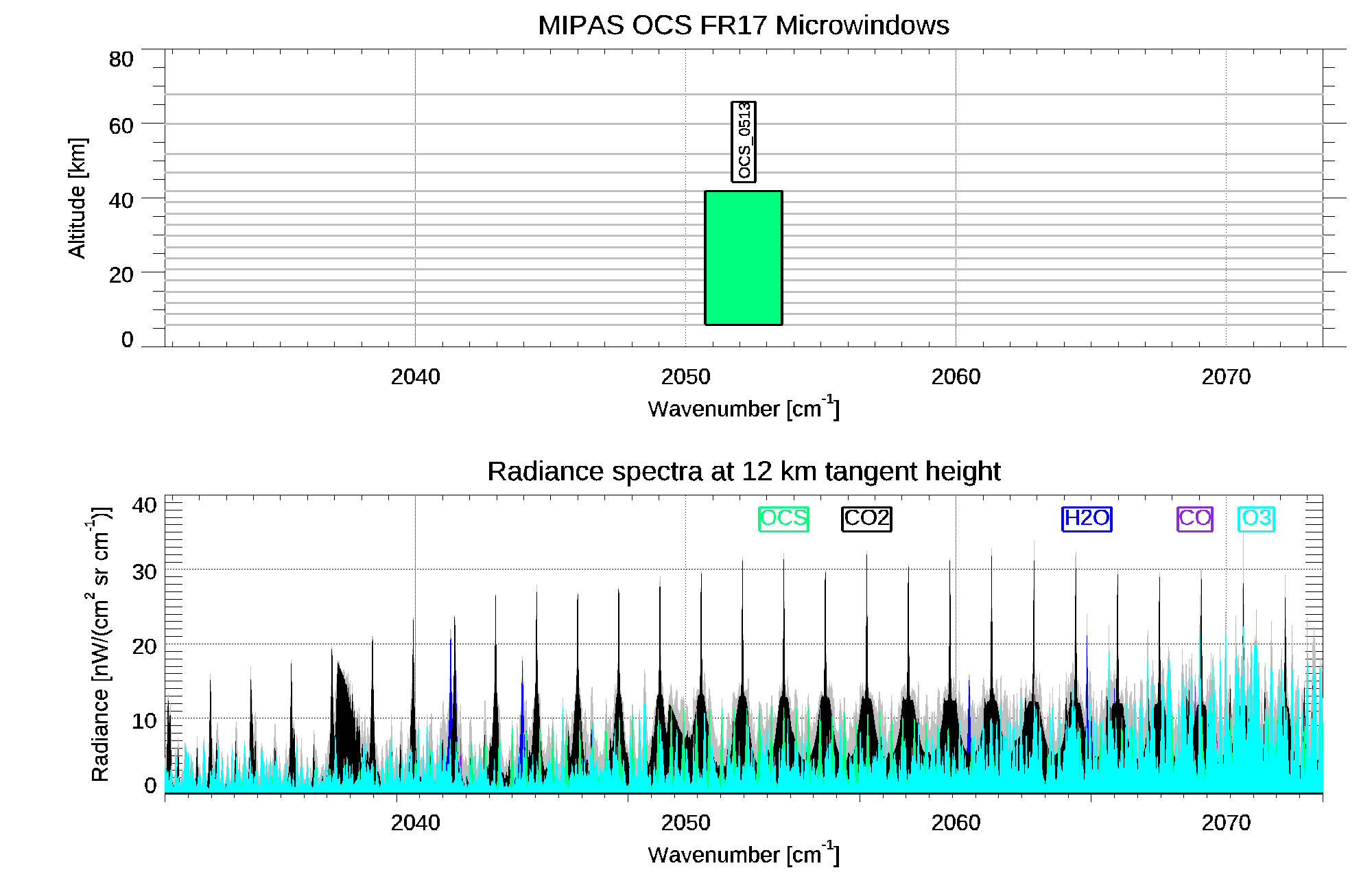

FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

OCS_0511 863.7000 866.7000 6.0 27.0 H2O HNO3 CO2 OCS F12 C2H6 F11 O3 CLO N2O5 NH3 C2H4 COCL2 PAN NO2
OCS_0512 844.2750 847.2750 6.0 68.0 H2O F11 CO2 HNO3 NH3 O3 OCS C2H6 COCL2 F114 F22 N2O5 PAN CLO NO2
OCS_0513 2050.7250 2053.5750 6.0 42.0 H2O CO CO2 OCS O3
OCS_0514 849.4500 852.4500 6.0 36.0 H2O F11 NH3 HNO3 CO2 OCS O3 C2H6 COCL2 F114 CLO N2O5 F12 PAN F22
OCS_0515 867.9500 870.9500 6.0 39.0 H2O HNO3 NH3 OCS F12 CO2 C2H6 O3 CLO N2O5 C2H4 F11 NO2 F113 PAN

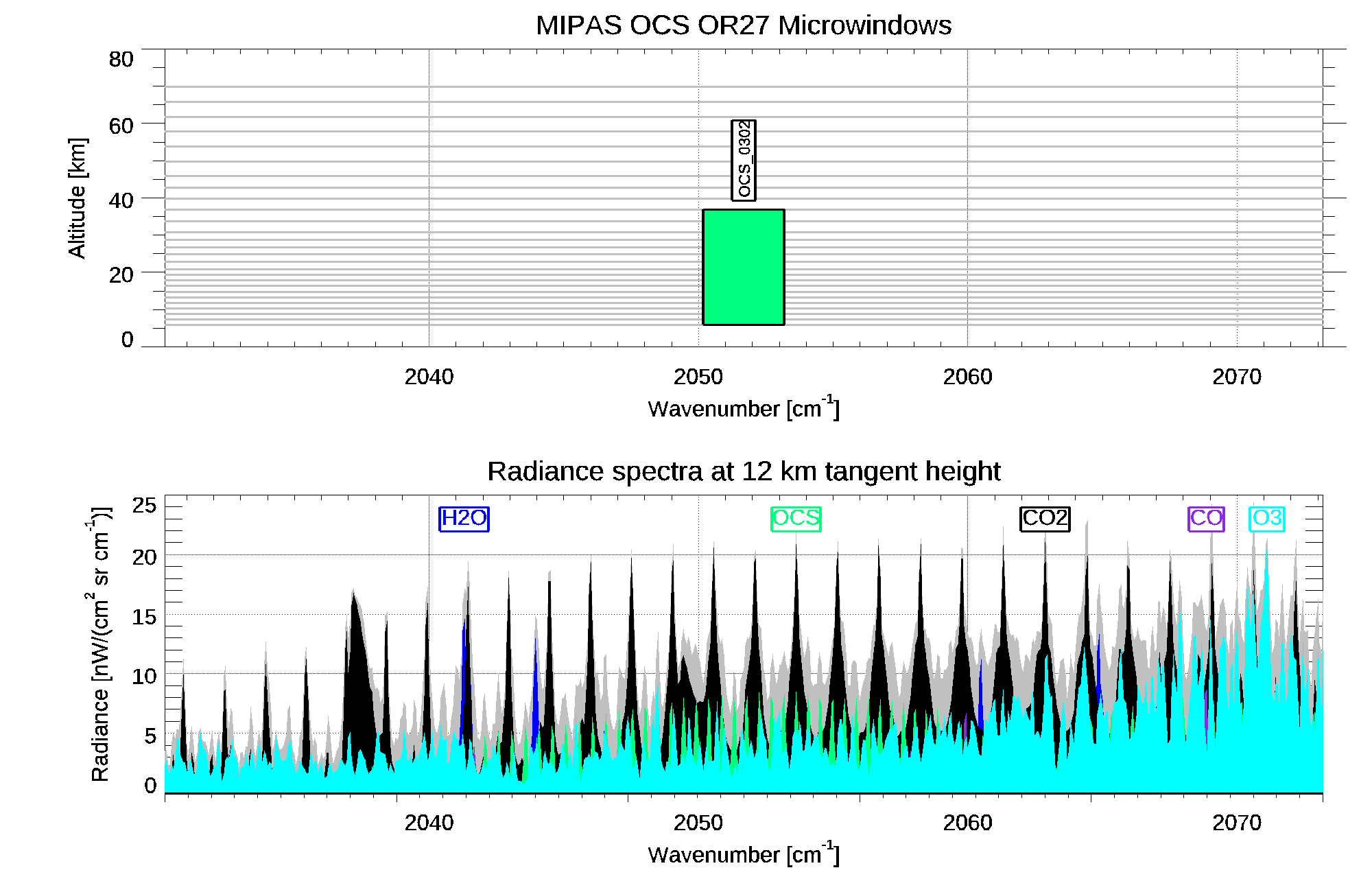

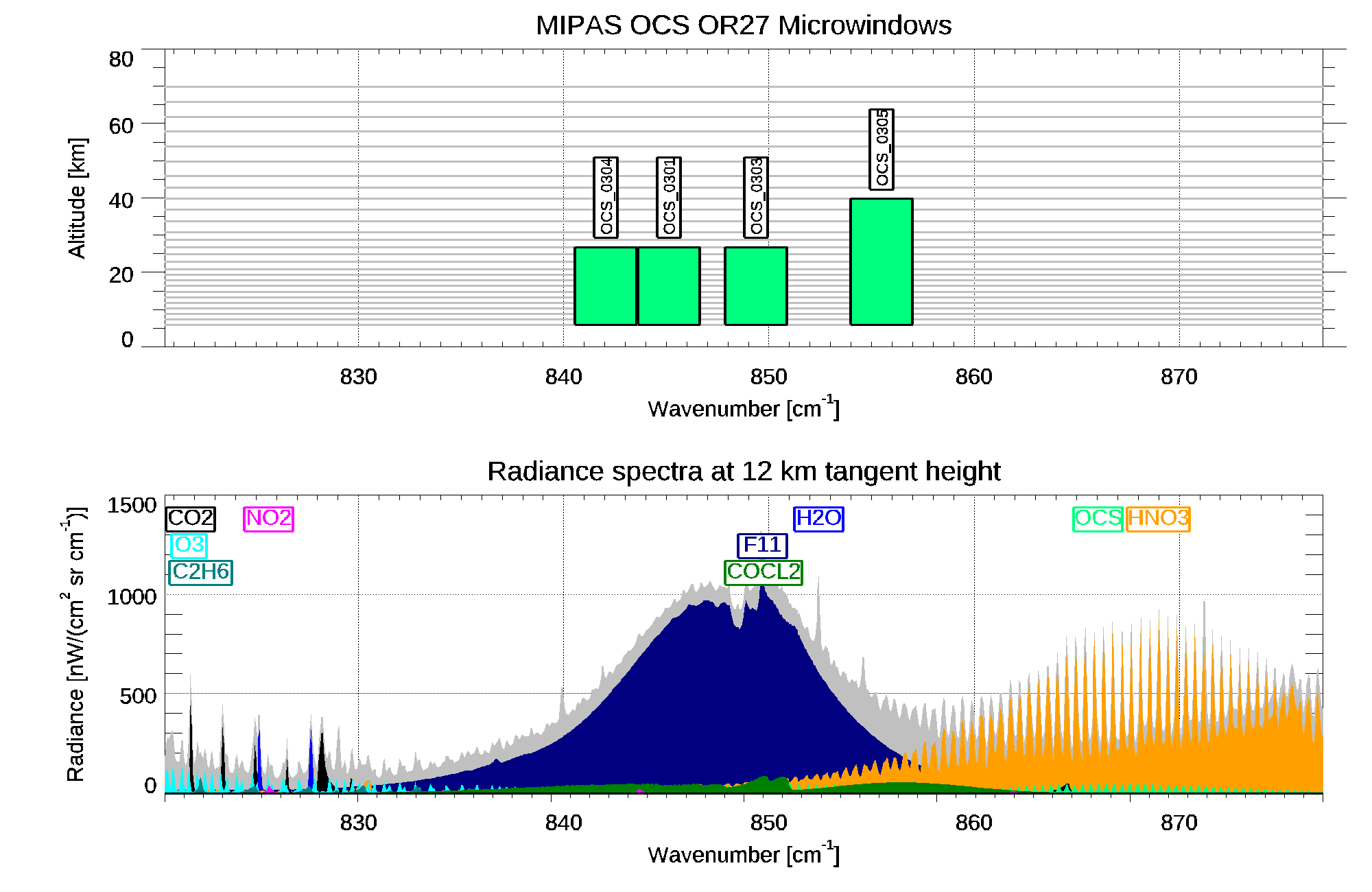

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

OCS_0301 843.6250 846.6250 6.0 27.0 H2O F11 HNO3 CO2 O3 OCS C2H6 COCL2 NO2 F114 F22 N2O5 PAN CLO NH3
OCS_0302 2050.1875 2053.1875 6.0 37.0 H2O CO2 CO OCS O3
OCS_0303 847.8750 850.8750 6.0 27.0 H2O F11 HNO3 CO2 OCS NH3 C2H6 COCL2 O3 F114 N2O5 CLO F12 PAN F22
OCS_0304 840.5625 843.5625 6.0 27.0 H2O F11 CO2 HNO3 O3 C2H6 OCS COCL2 F22 F114 PAN N2O5 NO2 NH3 CLO
OCS_0305 854.0000 857.0000 6.0 40.0 H2O HNO3 F11 CO2 OCS C2H6 COCL2 O3 CLO NH3 F12 N2O5 F114 PAN C2H4
