MIPAS PT Microwindows

updated 26MAR21

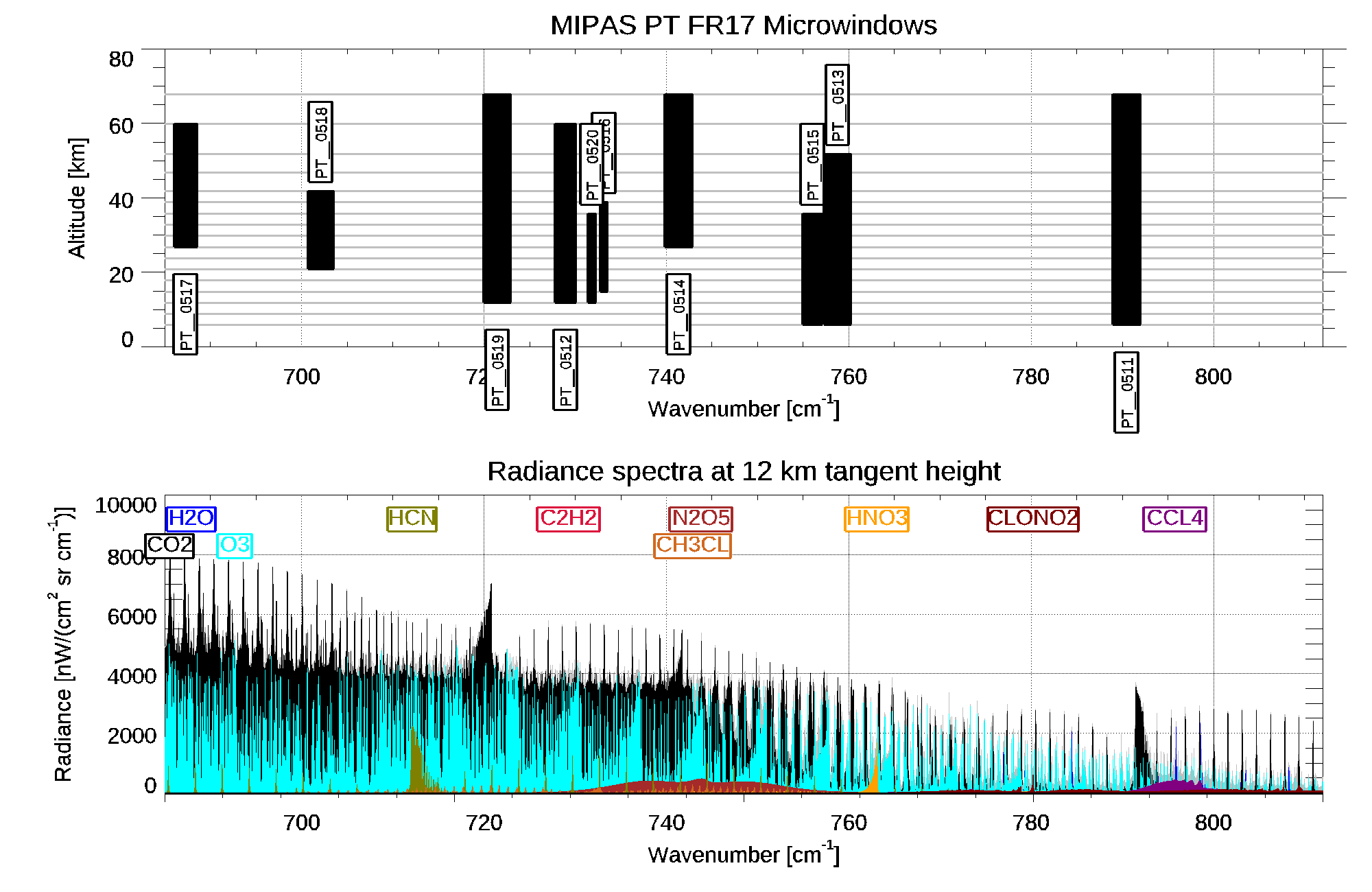

FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

PT__0511 789.0000 792.0000 6.0 68.0 H2O CO2 O3 CCL4 CLONO2 HNO3 PAN HNO4 C2H2 F22 C2H6 COF2 NO2 NH3 N2O5
PT__0512 727.7750 730.0500 12.0 60.0 CO2 O3 H2O C2H2 N2O5 HCN NO2 CH3CL HNO3 H2O2 N2O
PT__0513 757.3000 760.2250 6.0 52.0 H2O CO2 O3 HCN C2H2 N2O5 HNO3 CH3CL CCL4 CLONO2 NO2 COF2 NH3 C2H6 PAN
PT__0514 739.8250 742.8250 27.0 68.0 CO2 O3 N2O5 H2O HNO3 NO2 HCN CH3CL
PT__0515 755.0000 757.0500 6.0 36.0 H2O CO2 O3 HCN C2H2 N2O5 HNO3 CH3CL NH3 CCL4 NO2 COF2 CLONO2 C2H6 PAN
PT__0516 732.7500 733.5500 15.0 39.0 CO2 O3 N2O5 HNO3 NO2 CH3CL HCN H2O NH3 C2H2
PT__0517 686.0250 688.5000 27.0 60.0 CO2 O3 H2O HCN NO2 N2O5 N2O
PT__0518 700.7000 703.5000 21.0 42.0 CO2 O3 HCN N2O5 N2O CH3CL NO2 H2O
PT__0519 719.9500 722.9500 12.0 68.0 CO2 O3 H2O CH3CL N2O5 NO2 PAN N2O HCN
PT__0520 731.4000 732.2750 12.0 36.0 CO2 O3 H2O N2O5 CH3CL C2H2 HNO3 NO2 HCN NH3 N2O

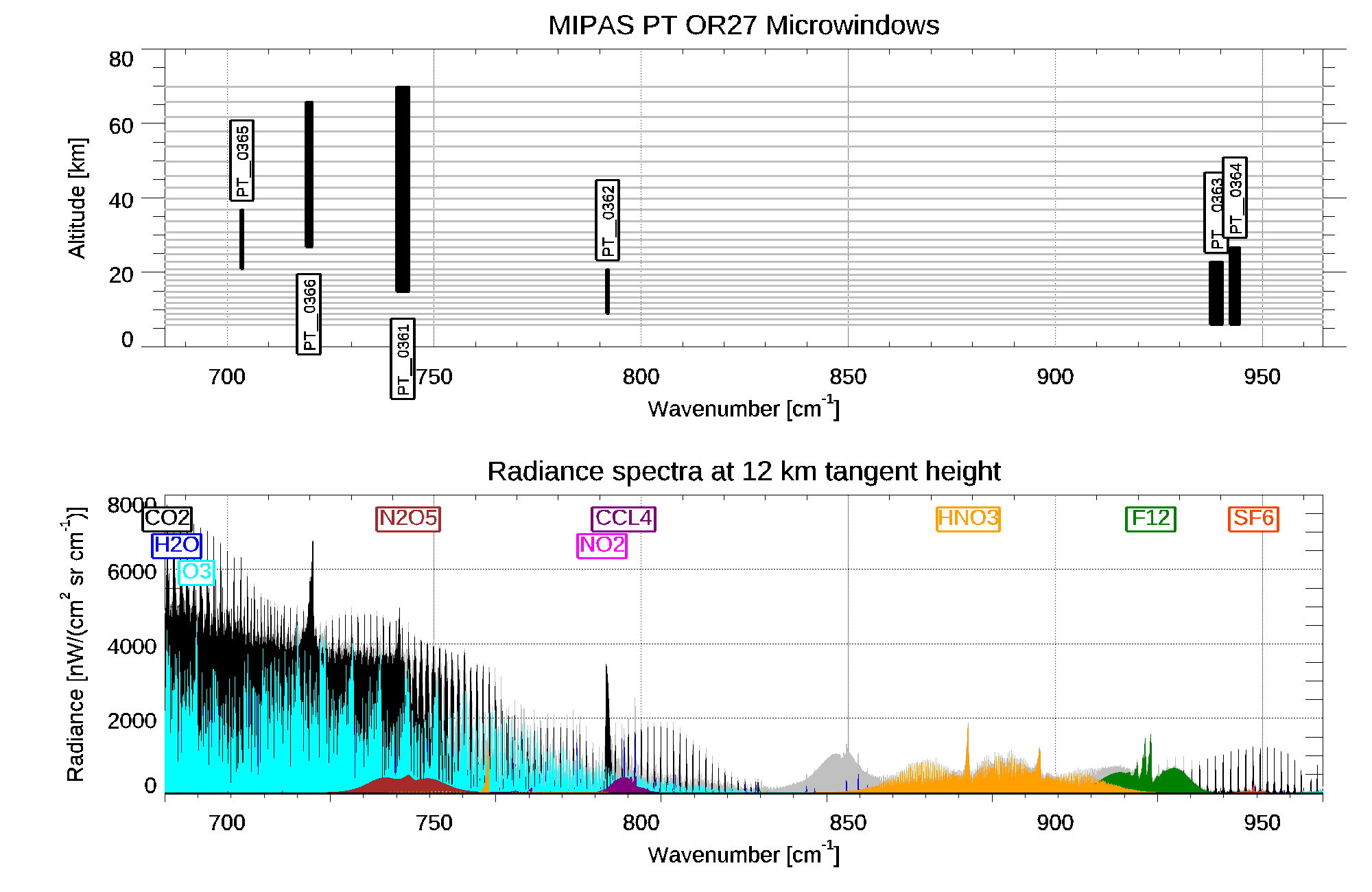

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

PT__0361 740.9375 743.9375 15.0 70.0 CO2 O3 N2O5 H2O HNO3 CH3CL NO2 C2H2 COF2 HCN NH3
PT__0362 791.6250 792.2500 9.0 21.0 CO2 H2O O3 CCL4 CLONO2 HNO3 PAN HNO4 NH3 F22 COF2 C2H6 N2O5 NO2 C2H2
PT__0363 937.5000 940.5000 6.0 23.0 H2O CO2 F12 NH3 SF6 PAN C2H4 O3 HNO3 COF2 N2O F113 F114 CH3CL
PT__0364 942.3125 944.6250 6.0 27.0 H2O CO2 SF6 O3 C2H4 N2O COF2 PAN F12 HNO3 NH3 F114 CH3CL F113
PT__0365 703.3750 703.8750 21.0 37.0 CO2 O3 H2O N2O5 N2O CH3CL NO2
PT__0366 719.0625 720.6250 27.0 66.0 CO2 O3 N2O5 NO2 N2O

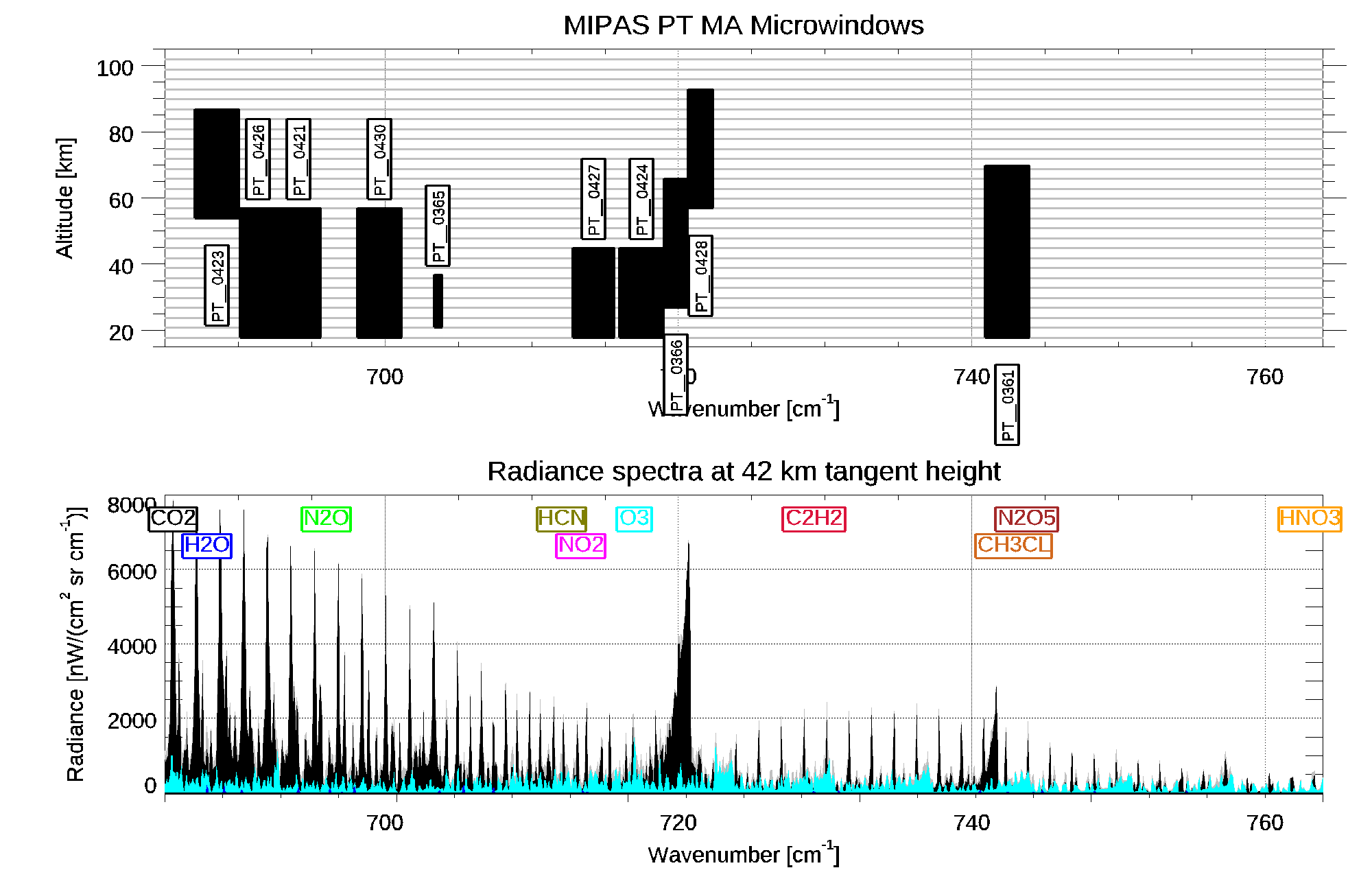

MA Mode

2005-2012 29 Sweeps from 18-102 km @0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

PT__0361 740.9375 743.9375 18.0 70.0 CO2 O3 N2O5 H2O HNO3 CH3CL NO2 C2H2 COF2 HCN NH3
PT__0365 703.3750 703.8750 21.0 37.0 CO2 O3 H2O N2O5 N2O CH3CL NO2
PT__0366 719.0625 720.6250 27.0 66.0 CO2 O3 N2O5 NO2 N2O
PT__0421 692.6250 695.6250 18.0 57.0 CO2 O3 H2O HCN N2O N2O5 NO2 H2O2 CH3CL
PT__0422 1043.7500 1046.7500 18.0 69.0 O3 CO2 F113 OCS F114 N2O CH4
PT__0423 687.0625 690.0625 54.0 87.0 CO2 O3 H2O NO2
PT__0424 716.0000 719.0000 18.0 45.0 CO2 O3 HCN CH3CL H2O N2O5 NO2 N2O H2O2 C2H2
PT__0425 1032.7500 1035.7500 21.0 51.0 O3 CO2 OCS NH3 CH3CL CH4 F113
PT__0426 690.1250 692.5625 18.0 57.0 CO2 O3 H2O HCN N2O5 N2O NO2 H2O2 CH3CL
PT__0427 712.8125 715.6250 18.0 45.0 CO2 O3 H2O HCN NO2 CH3CL N2O5 N2O H2O2
PT__0428 720.6875 722.3750 57.0 93.0 CO2 O3 H2O
PT__0429 1062.6250 1065.6250 18.0 69.0 O3 CO2 NH3 F11 H2O SO2 CH4 F12 OCS N2O F114 CH3CL F113
PT__0430 698.1250 701.1250 18.0 57.0 CO2 O3 NO2 HCN N2O5 N2O CH3CL H2O2 H2O C2H2
