MIPAS SF6 Microwindows

updated 26MAR21

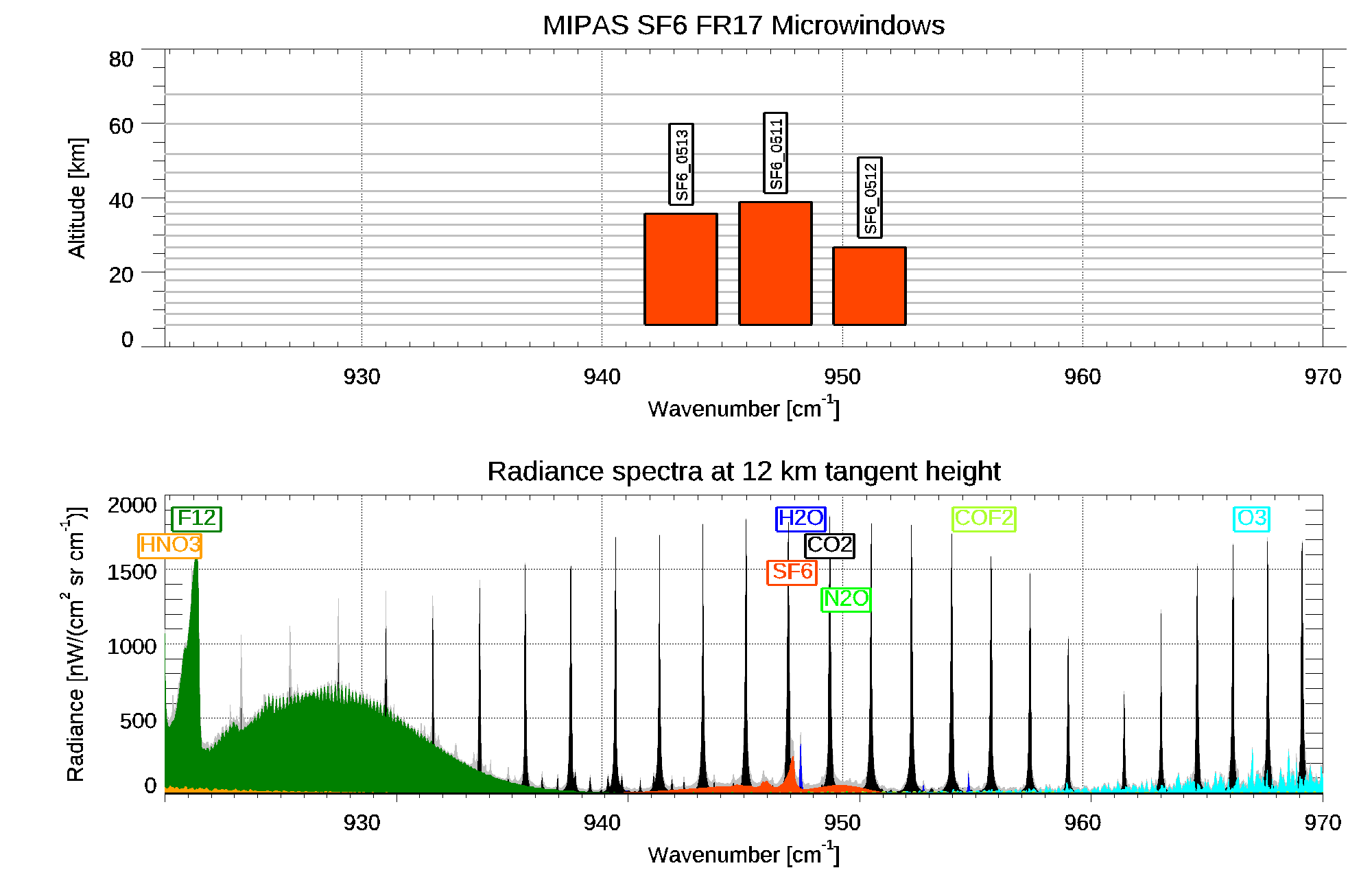

FR Mode

2002-2004 17 Sweeps from 6-68 km @ 0.025 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

SF6_0511 945.7250 948.7250 6.0 39.0 H2O CO2 NH3 SF6 O3 N2O C2H4 COF2 HNO3 PAN F12 F114 CH3CL
SF6_0512 949.6500 952.6500 6.0 27.0 H2O CO2 O3 NH3 C2H4 SF6 N2O COF2 CH3CL HNO3 F114 PAN
SF6_0513 941.8000 944.8000 6.0 36.0 H2O CO2 SF6 O3 N2O C2H4 F12 COF2 PAN HNO3 NH3 F114 CH3CL

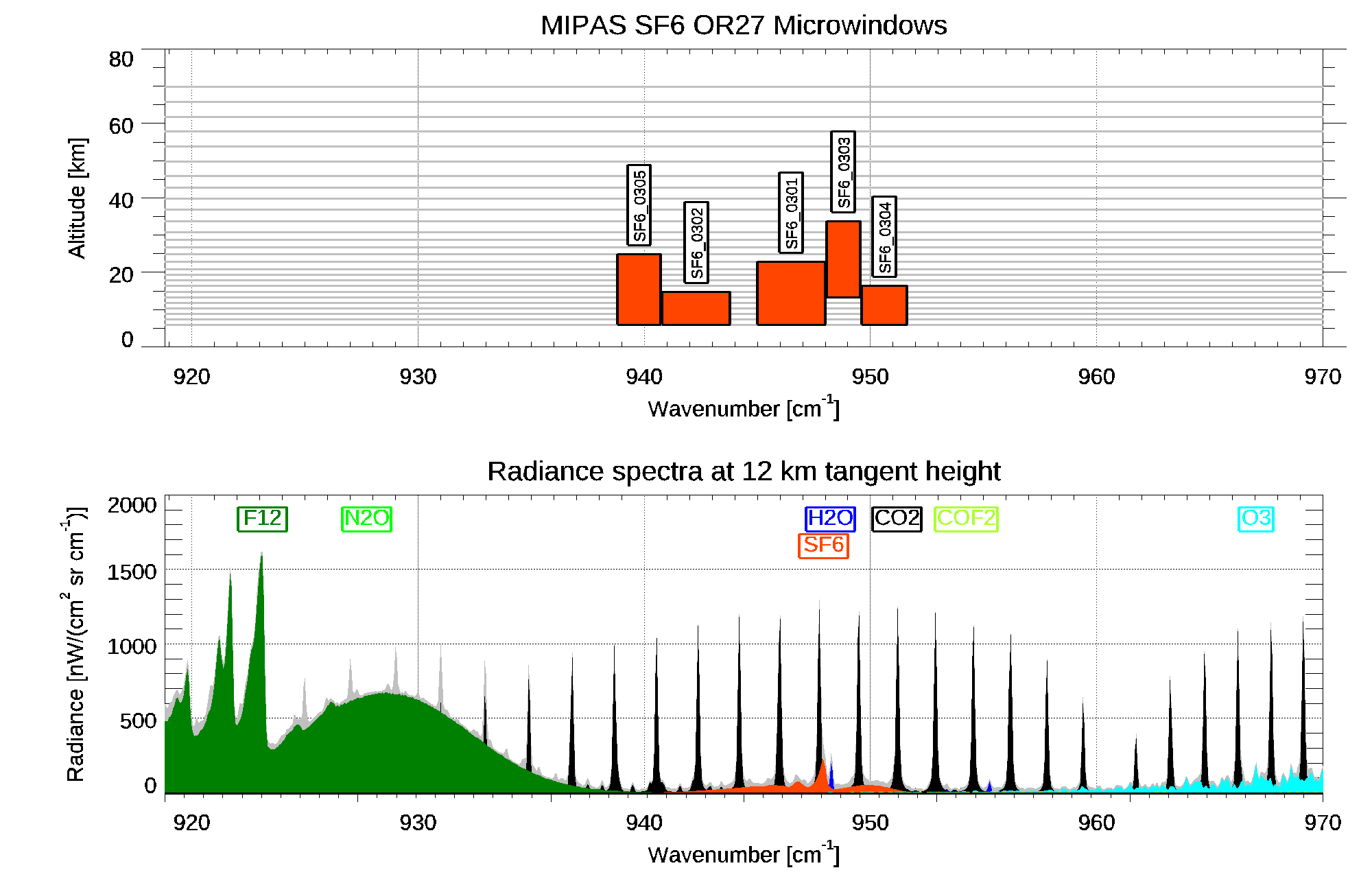

OR Mode

2005-2012 27 Sweeps from 6-70 km @ 0.0625 cm-1

Microwindow Waveno Range Tan Ht Range Absorbers
Label [cm-1] [km] (approx. decreasing order of significance)

SF6_0301 945.0000 948.0000 6.0 23.0 H2O CO2 SF6 O3 N2O C2H4 COF2 NH3 HNO3 PAN F12 F114 CH3CL F113
SF6_0302 940.8125 943.8125 6.0 15.0 H2O CO2 SF6 O3 N2O F12 C2H4 PAN COF2 HNO3 NH3 F114 F113 CH3CL
SF6_0303 948.0625 949.5625 13.5 34.0 CO2 H2O SF6 O3 NH3 COF2 C2H4 N2O HNO3 F114
SF6_0304 949.6250 951.6250 6.0 16.5 H2O CO2 SF6 C2H4 O3 N2O NH3 COF2 HNO3 CH3CL F114 PAN
SF6_0305 938.8125 940.7500 6.0 25.0 H2O CO2 F12 NH3 O3 C2H4 SF6 PAN HNO3 COF2 N2O F114 F113 CH3CL
