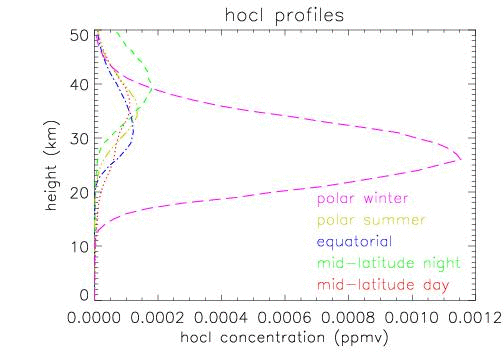

The plot below shows five standard hocl profiles, up to 50km.

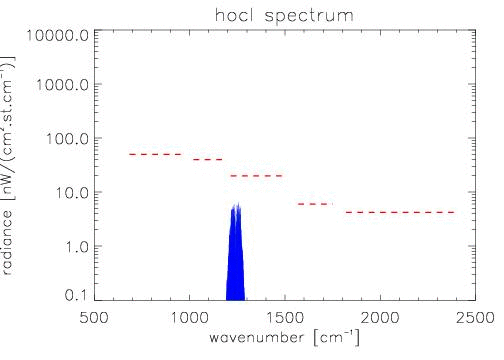

This next plot shows simulated limb emission spectra for hocl, at three different tangent heights. The black spectrum is for a tangent height of 10km, the green for 20km, and the blue for 30km. The dotted red lines represent the noise levels in each of the five MIPAS bands.
