Oxford MIPAS meeting#107
28 November 06

Present

Instrument Status [Prev] [Next]
According to the Envisat Web-Site, an "unexpected and urgent maintenance activity on one of the Envisat on-board memory requires a switch-off of the complete payload that will entail instrument unavailability for a period of about 2 days" from 28-30 Nov.
Apart from this, MIPAS itself continues in a long sequence of nominal mode observations 2 orbits on followed by 3 orbits off (intended to be tested as an input for ECMWF data assimilation).

RR27 Retrieval (AD) [Prev] [Next]
ESA have given up attempting to generate any L2 products from the reduced-resolution data in time for the upcoming ACVE-3 meeting and, instead, there will be a separate validation meeting dedicated to these products the day before the next QWG, ie 13 Feb 2007 at ESRIN.

Precision Validation (CP) [Prev] [Next]
Using comparisons of pairs of MIPAS retrievals at locations where orbits intersect to see how the observed standard deviation compares with the predicted variability from the retrieval covariance.

ACE NO2 Comparisons (CP) [Prev] [Next]
Now comparing MIPAS NO2 with ACE measurements (for MIPAS NO2 validation paper)

TES Radiance Comparisons (CW) [Prev] [Next]

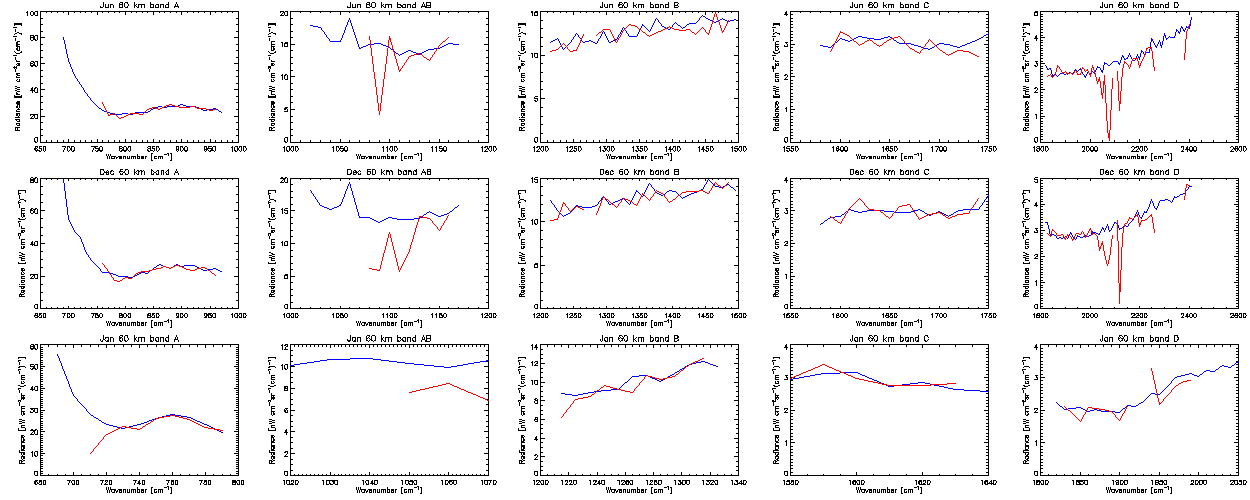

Continuing with comparison of MIPAS and TES limb radiance spectra from Jan 28 2005 using regions where the MIPAS bands and TES filters overlap

CO Retrievals (JW) [Prev] [Next]
Continuing with a joint retrieval of CO and vibrational temperature using RFM being used in non-LTE mode as a forward model within IDL retrieval program

Cloud Parameters (JH) [Prev] [Next]
Attempting to retrieve Cloud Top Height, Cloud Extinction and/or cloud top temperature using a pair of adjacent sweeps (the cloud top being in the FOV of the upper sweep) and a single microwindow 960-961cm-1 (most transparent region of MIPAS spectrum)

Mesospheric Spectra (LMV) [Prev] [Next]

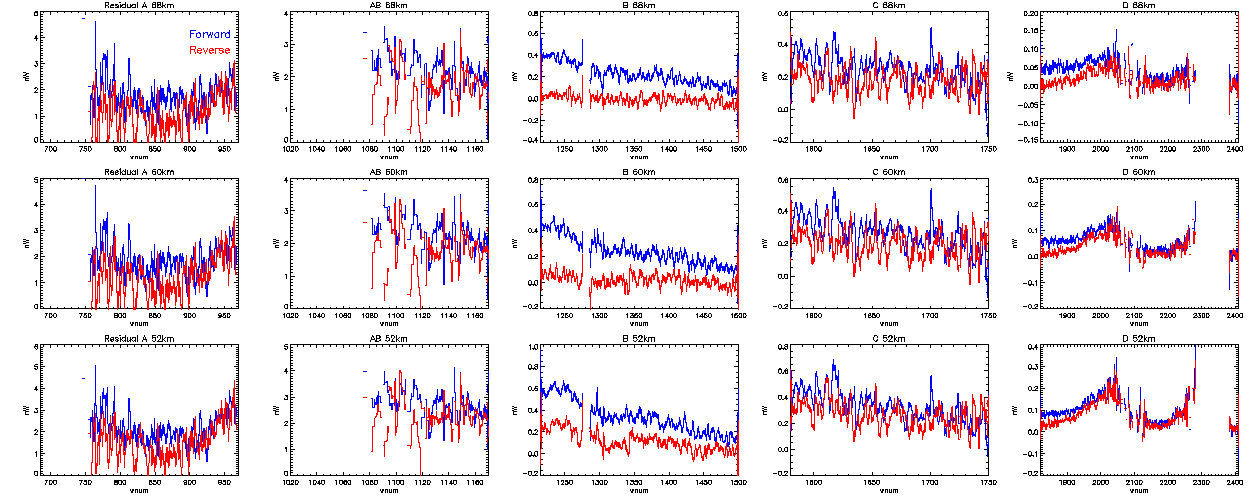

Analysing contents of MIPAS mesospheric spectra (52, 60 and 68km nominal altitudes). Having masked out the spectral points influenced by atmospheric lines, the resulting spectra can be used to examine the noise and radiometric offset.

ACVE-3 Workshop 4-7th Dec, Frascati [Prev] [Next]
Website: www.congrex.nl/06m25/
Posters on the following Posters have been submitted from Oxford for the MIPAS session:

ACPD Papers [Prev] [Next]
Papers selected from the ACPD website for discussion
"Assimilation of TES CO into a global CTM: first results"
N. A. D. Richards et al. (submitted 22.11.06, open until 17.01.07)
Introduced by CP.
"MIPAS Level 1B algorithms overview: operational processing and characterization"
A.Kleinert et al. (submitted 26.10.2006, open until 21.12.2006)
Comments being collected by LMV.
"A study of polar ozone depletion based on sequential assimilation of satellite data from the ENVISAT/MIPAS and Odin/SMR instruments"
J. D. Rösevall et al (submitted 10.10.2006, open until 05.12.2006)
Comments being collected by CW.
"An annual cycle of long lived stratospheric gases from MIPAS"
by M. N. Juckes (submitted 26.09.2006, open until 21.11.2006)
Comments submitted by AD. Closed
There are several more MIPAS-related papers currently open (which may be adopted for group discussion in future meetings)
"Evaluation of ozonesondes, HALOE, SAGE II and III, Odin-OSIRIS and SMR, and ENVISAT-GOMOS, -SCIAMACHY and -MIPAS ozone profiles in the tropics from SAOZ long duration balloon measurements in 2003 and 2004"
F.Borchi et al. (submitted 11.10.2006, open until 06.12.2006)
"Detection of organic compound signatures in infra-red, limb emission spectra observed by the MIPAS-B2 instrument"
J. J. Remedios et al (submitted 11.10.2006, open until 06.12.2006)
"Validation of MIPAS ClONO2 measurements"
M. Höpfner et al (submitted 05.10.2006, open until 30.11.2006)
"Validation of nitric acid retrieved by the IMK-IAA processor from MIPAS/ENVISAT measurements
D. Y. Wang et al (submitted 05.10.2006, open until 30.11.2006)
