Oxford MIPAS meeting#68
18 Jan 05

Present

Instrument Status [Prev] [Next]
Some details on the Envisat Web-Site including Instrument Availability web-site
Instrument operating @0.0625cm-1 resolution in various special modes (See Message from Paul Snoeij)
ENVI-SPPA-EOPG-TN-05-0002_MIPAS_January_campaign_1v1.pdf
Document distributed by Marta de Laurentis (ESRIN) on Jan 17th describing planned observing sequences

L1 Data (AB/CP) [Prev] [Next]
[Listing of current BADC Archive of reprocessed L1B Data]
Reprocessed ("consolidated") ESA L1B data from original operations continue to arrive at BADC.

L2 OFL Data (CP) [Prev] [Next]
[Plots of profile locations]

L2 Anomalies (AD) [Prev]
Summary of status of L2 anomalies at recent QWG meeting

Software Updates (AD) [Prev] [Next]
Oxford retrieval code MORSE

Reduced Resolution [Prev] [Next]

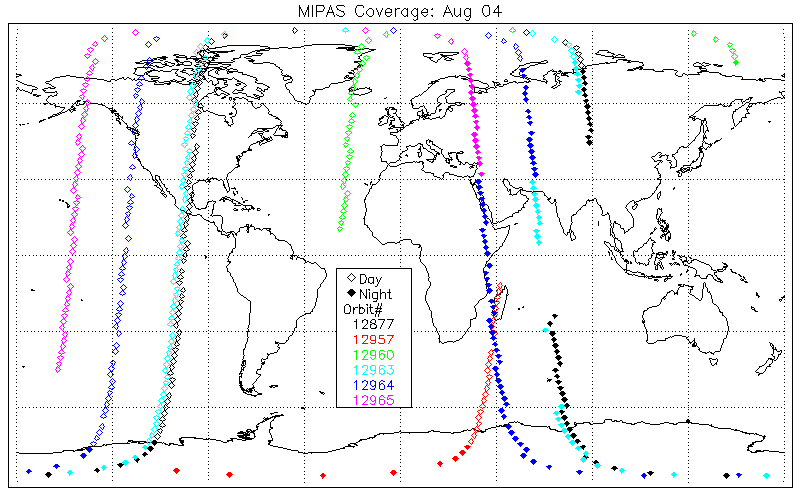

6 Orbits L1B spectra are available from Aug 2004 when MIPAS was operated in reduced resolution mode using the original scan pattern of 17 sweeps: 12877 (16 Aug 04) and 12957, 60, 63, 64, 65 (all 22 Aug 04) [Coverage]
22 Aug 04 is also the first day of Aura/TES "global survey"
Two anomalies detected in L1B data
Other anomalies reported at QWG#6 meeting are
Using MORSE, retrievals from Aug 04 data have been compared with Aug 2003 MIPAS NRT data.
Note significant discrepancies in H2O retrieval

H2O (VP) [Prev]
Investigating cause of high retrieved H2O at high altitudes.

EQUAL Project (CW) [Prev] [Next]
"Envisat QUality Assessment with Lidar"
Recently circulated 2nd progress report EQUAL_PR_20041101_20041231.pdf] comparing O3 and temperatures.

TASTE Project (CW) [Next]
"Technical ASsistance To Envisat validation by soundings, spectrometers and radiometers"
Recently circulated report TASTE_Update_Report_0501.pdf "Validation Highlights January 2005"

H2O2 (EP) [Prev] [Next]
Constructing H2O2 Seasonal Climatology from MIPAS 2003 measurements

Pressure Retrieval (IY) [Prev] [Next]
Previous work on retrieving pressure directly from a ratio of appropriately selected A-band microwindows now being developed further as an M.Phys project. Initial aims are to

TES Comparisons (CP) [Prev] [Next]
The TES instrument on NASA's Aura satellite measures infrared emission spectra in both limb and nadir-viewing modes.
First "global survey" of TES operation was 22 Aug 04, coincidentally the same day as MIPAS 0.0625cm-1 measurements
Aim is to degrades TES limb spectra from 0.02 to 0.0625cm-1 and adapt MORSE to perform retrievals using same microwindows as for MIPAS data.

MIPAS Quality Working Group Meeting#6 (AD/AB) [Prev] [Next]
Held at ESRIN, 13/14 Jan 2005
[Minutes, PDF file] (from Simone Ceccherini, IFAC)
Some notes

Email from Paul Snoeij (ESTEC) to ACVT, Mon, 17 Jan

Dear colleagues,

The first test operations with MIPAS using the reduced resolution double
slide mode were successful.
During the remainder of the month January several operational procedures and
measurement scenarios will be tested based on the campaign schedule
distributed to the ACVT members on 12-01-2005. Re-characterisation of the
instrument is expected to take place during the first half of February.

Mid February 2005 the experimental MIPAS mission will start (depending on the
successful outcome of the test campaign and authorisation by the mission
manager). At this moment it is not clear what the measurement scenario (e.g.
measurement time, and schedule) will be. One thing is clear: MIPAS will be
used on a campaign basis and continuous operation is currently not foreseen.

The mission objectives and measurement strategy will be discussed and refined
during the MIPAS Science Team Meeting on 18 February 2005.

The consequences of MIPAS operating on a campaign basis are:
- NRT data will no longer be generated, only offline products will be
available in the future.
- It  will no longer be possible to generate systematically overpass tables,
users are suggested to use the ESOV tool with the MIPAS backwards swath to
determine potential overpasses.
- Any request for special measurements (e.g. in conjunction with an airborne
or groundbased campaign) should be sent at least four (4) weeks before the
campaign to your ACVT subgroupleader with Marta De Laurentis
 in copy.

The MIPAS data processor will be adapted to the new operational mode in the
coming weeks. As soon as the MIPAS data will be (again) available for
validation the ACVT community will be informed.
