Homogeneous Path Transmittance
RFM Examples		03AUG26

Description

*FLG section

HOM flag: homogeneous path calculation

TRA flag: output the transmittance spectrum.

*GAS section

H2O and CO2 are to be included

*ATM section

For homogeneous paths the simplest way to specify the path conditions is directly entering p, T and VMR values in the *ATM section

*LEN section

By default path lengths are in km, but can be changed to m (or cm, mm) using the UNITS= keyword

Driver Table

*HDR 03AUG26 RFM Example: Homogeneous path transmittance *FLG HOM TRA *SPC 800 810 0.01 *GAS H2O CO2 *ATM PRE=1013.25 ! Pressure in hPa TEM=296 ! Temperature in K CO2=430 ! CO2 VMR in ppmv H2O=1000 ! H2O VMR in ppmv *LEN UNITS=M ! Specify path length in m 2.0 ! Path length *HIT /network/aopp/matin/eodg/crun/eodg/rfm/rfm_files/bin/hitran_2016.bin *END

Output Files

• tra_02000.asc
• rfm.log

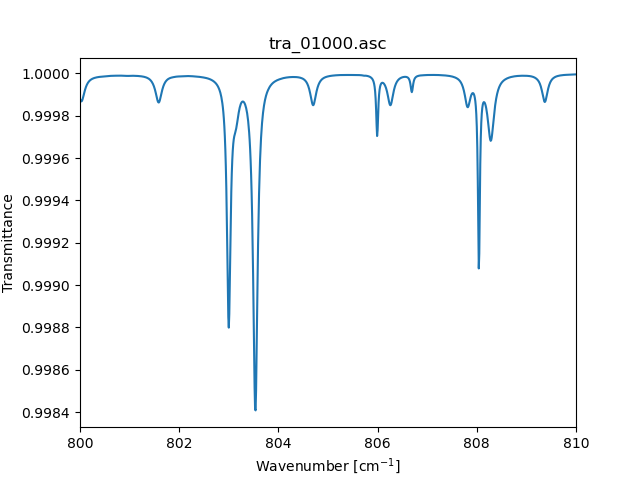

Output Spectrum
