SATELLITE MEASUREMENTS OF VOLCANIC EMISSIONS

(to discover the dark side of the project click here)

Introduction

This page is an overview of the work performed in the Atmospheric, Oceanic and Planetary Physics Sub-Department (University of Oxford) on the retrieval ofvolcanic emission from satellite.

Current members of the team are:

Dr E. Carboni
Dr R.G. Grainger
Dr A. Dudhia
Dr J. Walker

Students:

S. Ebmeier (Ph.D student)

Collaborators

HIGHLIGHTS

	Eumetsat NRT SEVIRI RGB Composite showing Ash

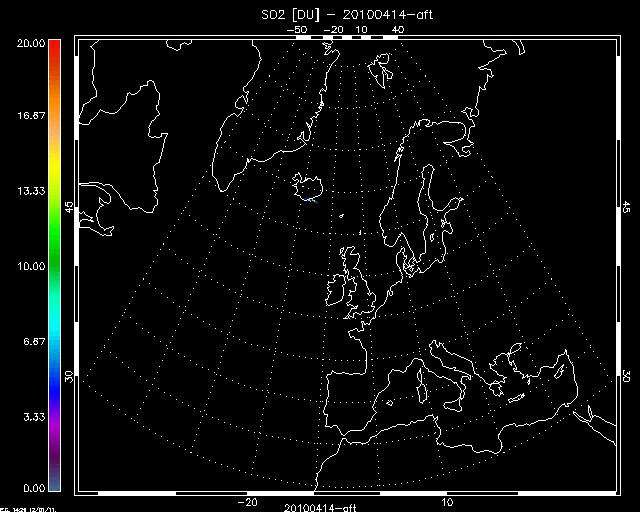

Eyjafjallajökull 2010	SO₂ retrieval (v1 and v3 bands) from IASI data AOPP Oxford observations
Karthala (25 Nov. 2005)	SEVIRI ash retrieval (VIS and IR)

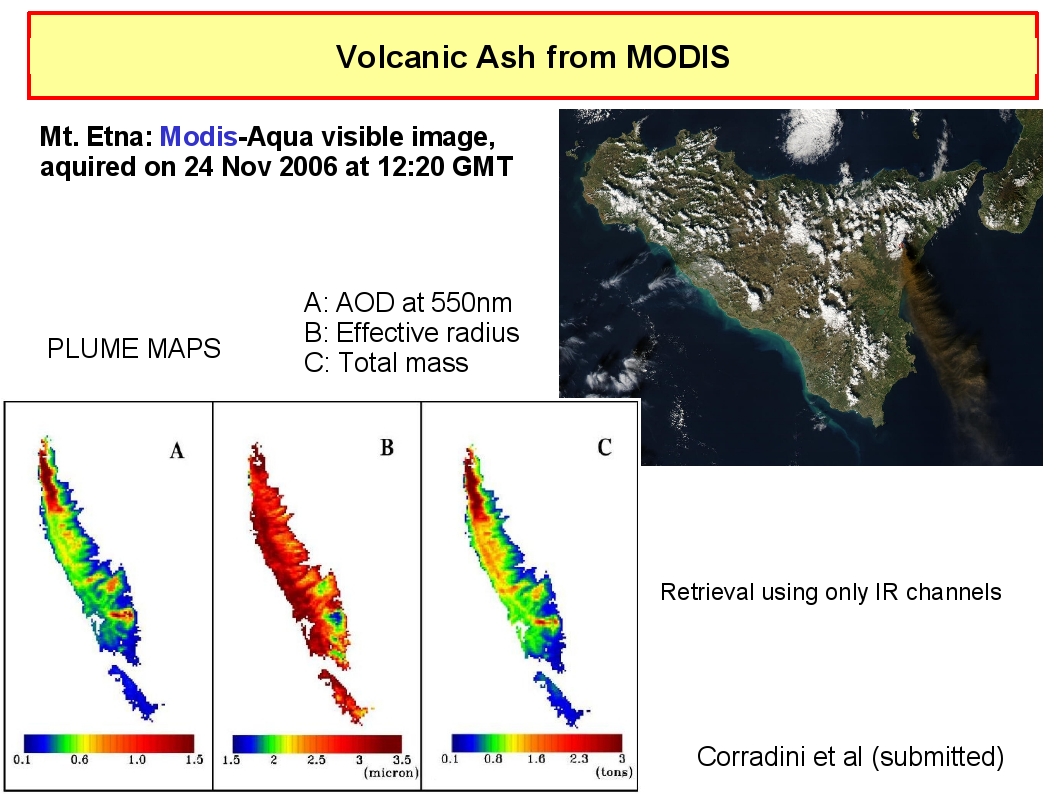

Etna (24 Nov. 2006)	MODIS SO₂ and Ash retrieval (IR)

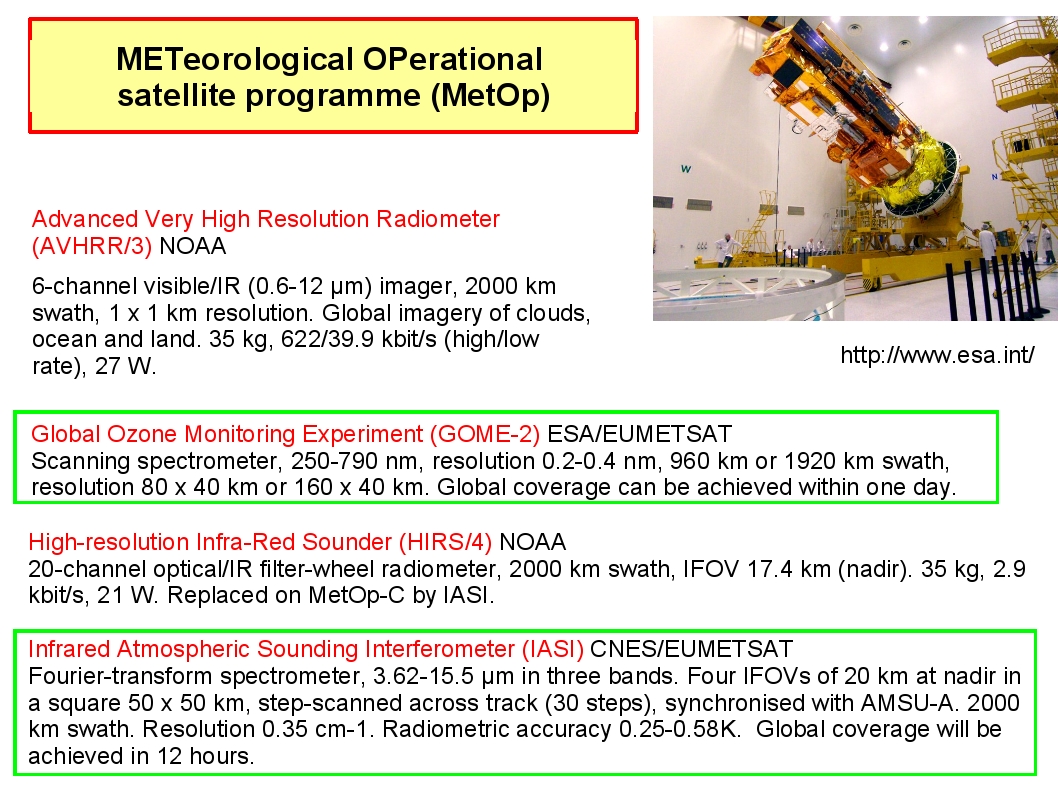

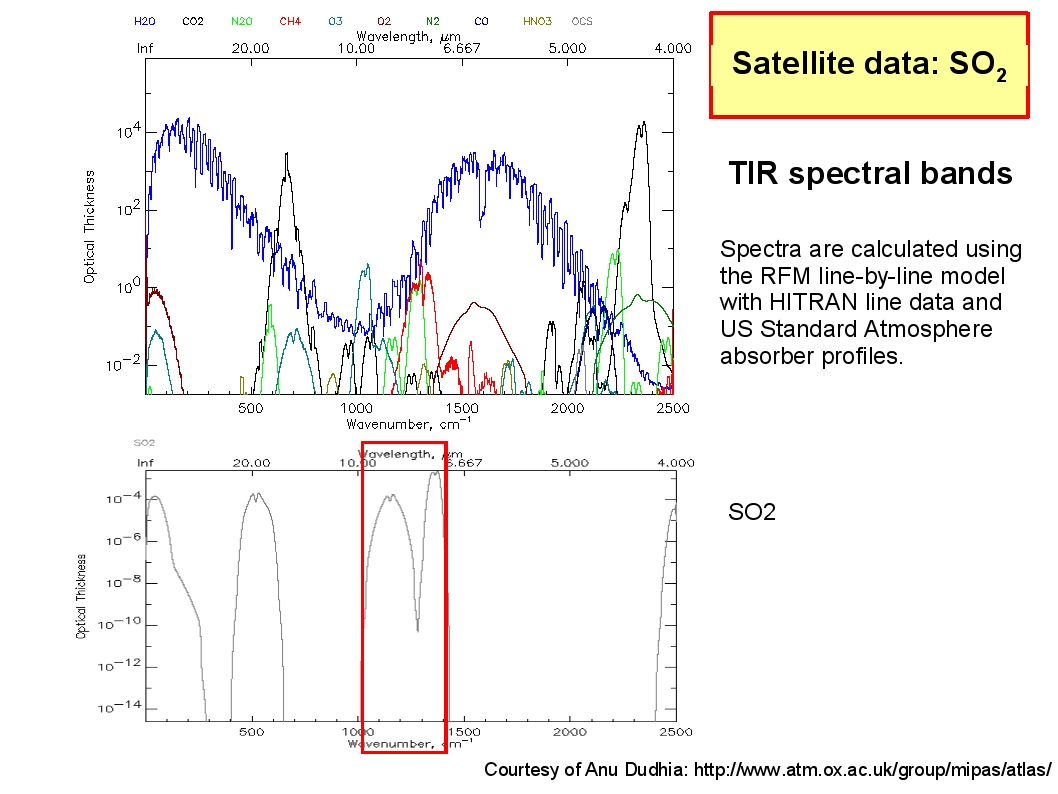

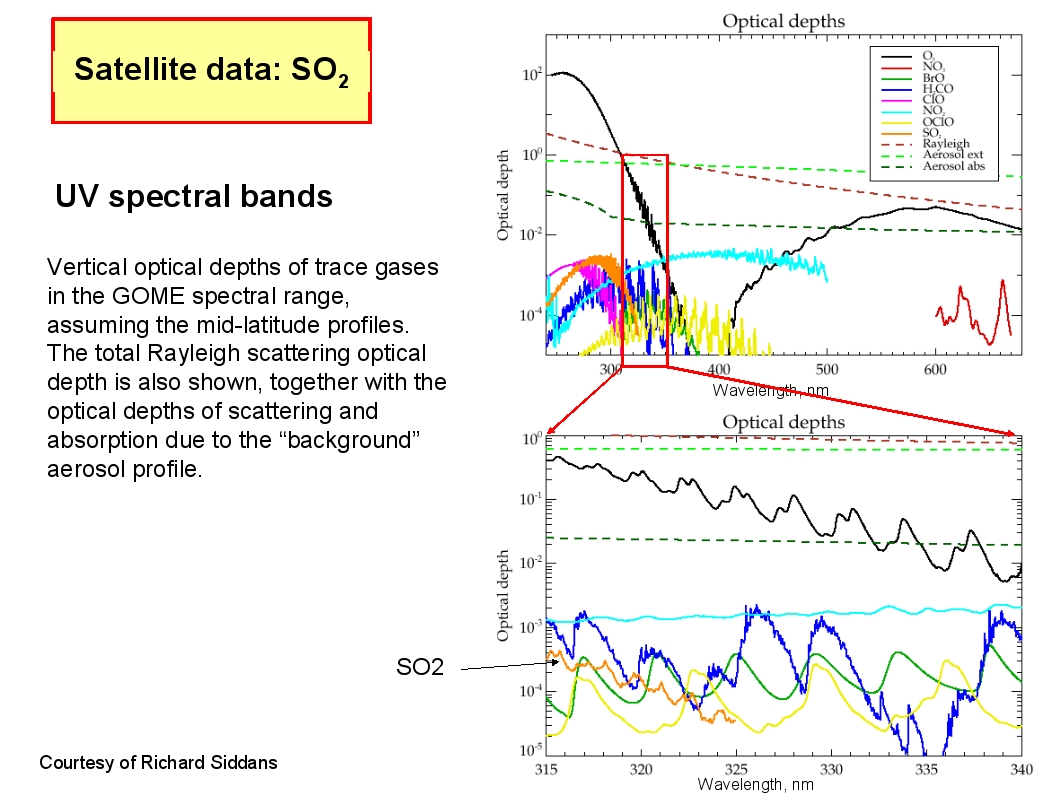

This work is part of NCEO project - The Dynamic Earth and Geohazard (NERC). That is a program of observation of earthquakes and volcanic processes. In particular we are using SEVIRI data for the ash retrieval (Optical Depth -AOD and effective radius - Reff ). We are going to use the MetOp data, GOME-2 and IASI to retrieve SO₂ from volcanic eruption, using both the UV and TIR SO₂ spectral region.

MetOp data are available from March 2007.
Seviri data are available from Feb 2004.

Provisional list of volcanic eruption case studies

27-30 Oct. 2002 - Etna eruption; Dr. Nicholas Tutorial; Satellite Images

24 Oct. 2004 - Manam Papa New Guinea (TERRA/MODIS Ash cloud top retrieval)

9 March 2005 - Mt St. Helene (AVHRR case study, split window)

25 Nov 2005 - Karthala (Ash, SO₂ and ice plumes from SEVIRI) - Eumesat web page, (Prata and Kerkmann, 2007)

24 Nov. 2006 - Etna (SO₂ and Ash; ash from MODIS IR, Corradini et al. 2008; Corradini et al. 2009)

1-11 Oct 2007 - Jabel al-Tair, red sea (IASI data, SO₂)

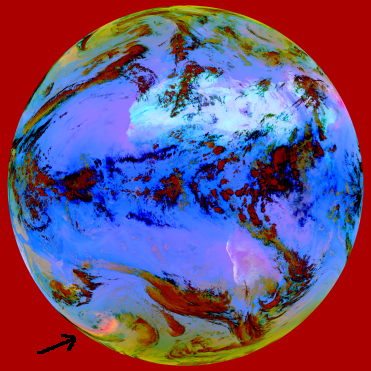

2-6 May 2008 - Chaten, Chile (ash at ~10-11km and cloud) - The ash plume is visible in the SEVIRI image (RGB=ch10-ch9,ch9-ch7,ch9 - 2008-05-04 17:12)

10-14 May 2008 - Etna (ash and SO₂) Metop-A and MSG SEVIRI

12-20 July 2008 - Okmok, Alaska (ash and SO₂ untill 16-16 July) SO₂ from AIRS (7.3 micron); youtube

7 August 2008 - Kasatochi, Alaska - Bremen SO₂ retrieval (DOAS) from GOME-2

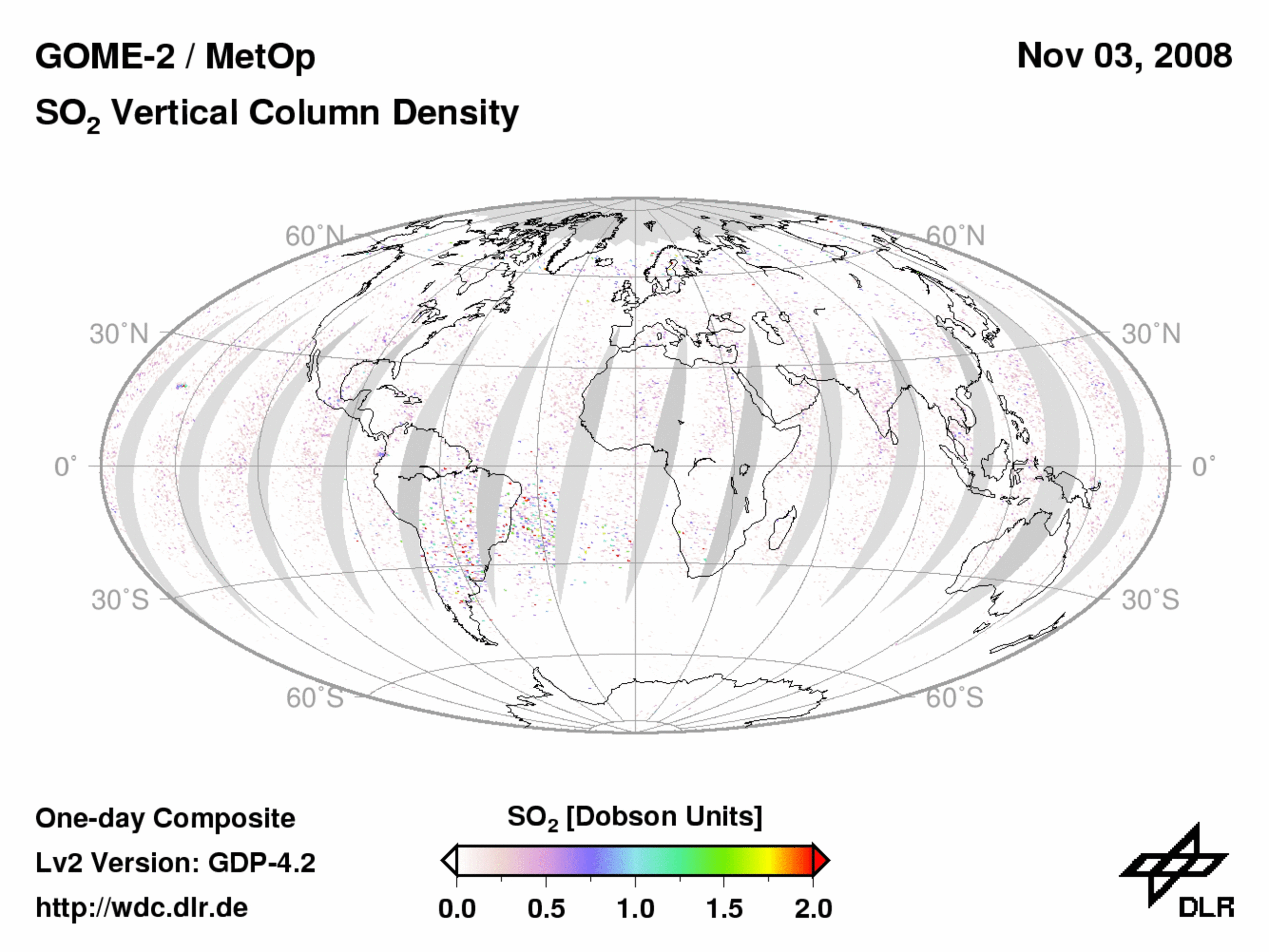

3-10 November 2008 - Ethiopia GOME-2 SO₂ from DLR; Global Volcanism Program

LINKS

COMET+ NCEO
IAVCEI

SO₂ retrieval

OMI Sulfur Dioxide Group and their: The Vog Blog
Real time SO₂ from OMI
The BIRA-IASB SO₂ Product
TEMIS - Near real time SO₂; using SCIAMACHY, OMI, GOME-2
DLR - GOME-2 SO₂ Near Real Time (and archive images)
ULB IASI SO₂ alert

Volcanic ash

Eumetsat real time ash visualization
Eumetsat case study
TOMS Volcanic Image Archive(1979-2003)
GOES Project Volcano Watch

Volcanology groups

Clive Oppenheimer (Cambridge Volcanology Group)

Volcanic activity information

NOAA VAAC
Global volcanism program

This work supported by the NERC National Centre for Earth Observation Theme - The Dynamic Earth and Geohazards:

Maintained by Elisa Carboni

University of Oxford Physics Department.

Page last updated: @17:19 GMT 07-May-2012
